HD SERIES - Long Life Cell

OWNER'S MANUAL

www.linc.com.au

Please read this manual carefully before operating your pool chlorinator

and cell. Retain for future reference.

Table of Contents

Need help?

Do you have a question about the HD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincoln pool equipment HD Series

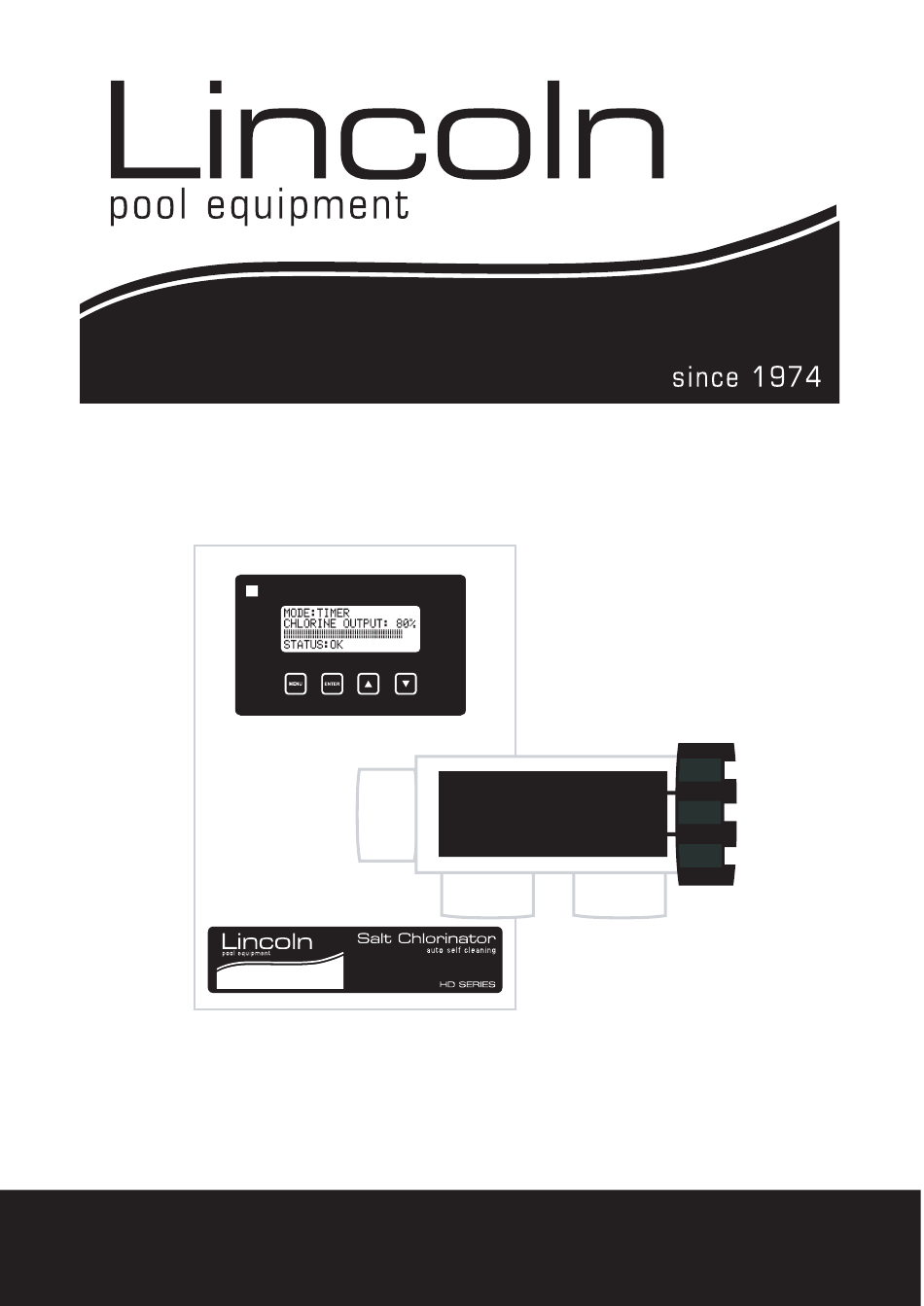

Page 1 HD SERIES - Long Life Cell OWNER’S MANUAL www.linc.com.au Please read this manual carefully before operating your pool chlorinator and cell. Retain for future reference.
Page 2: Table Of Contents
CONTENTS CHLORINATOR OWNER LINCOLN OVERVIEW INSTALLATION IDEAL WATER QUALITY OPERATION MAIN OPERATING SCREEN CHANGING MODES SETTING THE CHLORINE OUTPUT LEVEL SETTING THE TIMER PUMP PROTECTION CELL CLEANING SETTING THE TIME ADJUSTING THE LCD CONTRAST SYSTEM INFO HOW DOES THE SELF CLEANING LINCOLN CELL WORK? HOW DO I MAINTAIN THE CELL? HELPFUL HINTS TROUBLE SHOOTING...
Page 3: Chlorinator Owner
CHLORINATOR OWNER The Lincoln chlorinator unit is designed to be hung on a wall using the included bracket, between 1 and 1.5 metres above the ground. The casing is designed with ventilation slots in the bottom to allow cool air to ﬂ...
Page 4: Lincoln Overview
When using a pool cleaner, the display may sometimes indicate reduced or ﬂ uctuating chlorine output levels. This is due to the presence of air bubbles in the electrolytic cell and is normal. Even when a cleaner is not used, a small amount of output ﬂ...
Page 5: Installation
INSTALLATION Position the chlorinator power pack at least 1m above ground level and at least 2m from the pool edge. Protect the unit from direct weather and sun. If supply cord is damaged, it shall be replaced by the manufacturer or its service agent or similarly qualiﬁ...
Page 6: Ideal Water Quality
IDEAL WATER QUALITY SALINITY 4000ppm (4 grams per litre) 6.8 to 7.4 (for ﬁ breglass, vinyl lined and epoxy painted pools) 7.2 TO 7.8 (for other pool ﬁ nishes) ALKALINITY 80 to 150ppm STABILIZER 40 to 60ppm FREE CHLORINE 1.0 to 3.0ppm OPERATION Mode:Timer Chlorine Output:...
Page 7: Main Operating Screen
MAIN OPERATING SCREEN Mode:Timer MODE Chlorine Output: Displays the current MODE of operation from the list of modes Status: OK on the following page. Chlorine Output Displays the current level of chlorine production as both a percentage and as a bar graph to an accuracy of 1%. To increase chlorine output press the [ ] button.
Page 8: Setting The Chlorine Output Level
Use the [ ] and [ buttons to select the desired MODE of operation. Timer Superchlor No operation Operates continuously at user deﬁ ned output power level Timer Operates in relation to user deﬁ ned ‘Timer Settings’ SuperChlor 24 hours operation at highest possible output up to 100% Operates with an output of 10% indeﬁ...
Page 9: Setting The Timer
SETTING THE TIMER Enter the MAIN MENU by pressing the [MENU] button. Use the [ ] and [ ]buttons to Mode Select navigate the menu until the arrow Chlorine Output indicates that you have reached TimerSettings TIMER SETTINGS. Press the Pump Protection [ENTER] button to enter into the settings.
Page 10: Pump Protection
PUMP PROTECTION Enter the MAIN MENU by pressing the [MENU] button. Use the [ ] and [ ] buttons to Mode Select navigate the MAIN MENU until Chlorine Output the arrow indicates that you have TimerSettings reached PUMP PROTECTION. Press the [ENTER] button to enter Pump Protection into the settings.
Page 11: Cell Cleaning
CELL CLEANING Enter the MAIN MENU by pressing the [MENU] button. Use the [ ] and [ ] buttons to Chlorine Output navigate the menu until the arrow TimerSettings indicates that you have reached Pump Protection SET TIME. Press the [ENTER] Cell Cleaning button to enter into the settings.
Page 12: Setting The Time
SETTING THE TIME Enter the MAIN MENU by pressing the [MENU] button. Use the [ ] and [ ] buttons to TimerSettings navigate the menu until the arrow Pump Protection indicates that you have reached Cell Cleaning SET TIME. Press the [ENTER] Clock (Set Time) button to enter into the settings.
Page 13: System Info
Press the [MENU] button once more to exit the MAIN MENU and return to the MAIN OPERATING SCREEN. SYSTEM INFO Enter the MAIN MENU by pressing the [MENU] button. Use the [ ] and [ ] buttons to navigate the MAIN MENU until the arrow indicates that you have reached SYSTEM INFO.
Page 14: How Does The Self Cleaning Lincoln Cell Work
HOW DOES THE SELF CLEANING LINCOLN CELL WORK? To describe the operation simply, the Lincoln Chlorinator controls the forward direction of the cell for a period of 12 hours. It then stops for a short period before slowly ramping up to the set power level in the reverse direction for a period of 12 hours.
Page 15: Helpful Hints
HELPFUL HINTS When the pool water is tested accurately and all the recommended levels are met you should be able to set the Chlorine Production Output to 100%. This means the maximum amount of chlorine the chlorinator is rated at is being produced.
Page 16: Trouble Shooting
TROUBLE SHOOTING The STATUS is displaying ‘LOW SALT’, what should I do? The recommended salt level for the Lincoln chlorinator to function properly is 4000 ppm. If your salt level is under this value or the water is extremely cold, the chlorinator STATUS DISPLAY may indicate LOW SALT. When adding salt to bring the level up to 4000ppm.
Page 17: General Operating And Pool Maintenance
GENERAL OPERATING AND POOL MAINTENANCE How long should I run the Lincoln Chlorinator each day? During the warmer months of the year, the general running time is between six (6) and eight (8) hours a day. Set your Chlorine Output to suit your particular pool and current climate.
Page 18 My eyes are burning when I swim and I can smell the chlorine strongly. If your eyes are burning then there may be too much chlorine in the pool. Check chlorine level and adjust. If too high, you may be running the chlorinator for too long or your water is out of balance.
Page 19: Warranty
WARRANTY Your LINCOLN Auto Clean Pool Chlorinator carries the following warranty should a fault occur due to faulty materials or manufacture. LINCOLN warrants the original purchaser of the control panel for a period of two years from the date of purchase by the pool owner should examination disclose that this particular equipment failed due to faulty materials or manufacture.
Page 20 WARRANTY FORM NAME OF PURCHASER: ADDRESS: PURCHASED FROM: DATE OF PURCHASE: MODEL: SERIAL NUMBERS CONTROL PANEL: CELL: IMPORTANT: This section must be ﬁ lled out at time of purchase to render warranty effective KEEP IN A SAFE PLACE FOR YOUR REFERENCE www.linc.com.au Page 20...
Page 21: Cell Wiring Diagram
CELL WIRING DIAGRAM BLACK WIRE RED WIRE NEGATIVE POSITIVE WHITE WIRE CELL PROBE BLACK (NEGATIVE) Connect the black cable from the cell to the BLACK on the junction box (left side connection when looking at the back) WHITE (CELL PROBE) Connect the white cable from the cell to the WHITE on the junction box (middle connection when looking at the back) RED (POSITIVE)
Page 22 11-11...
