UTV Firestorm Instructions Manual

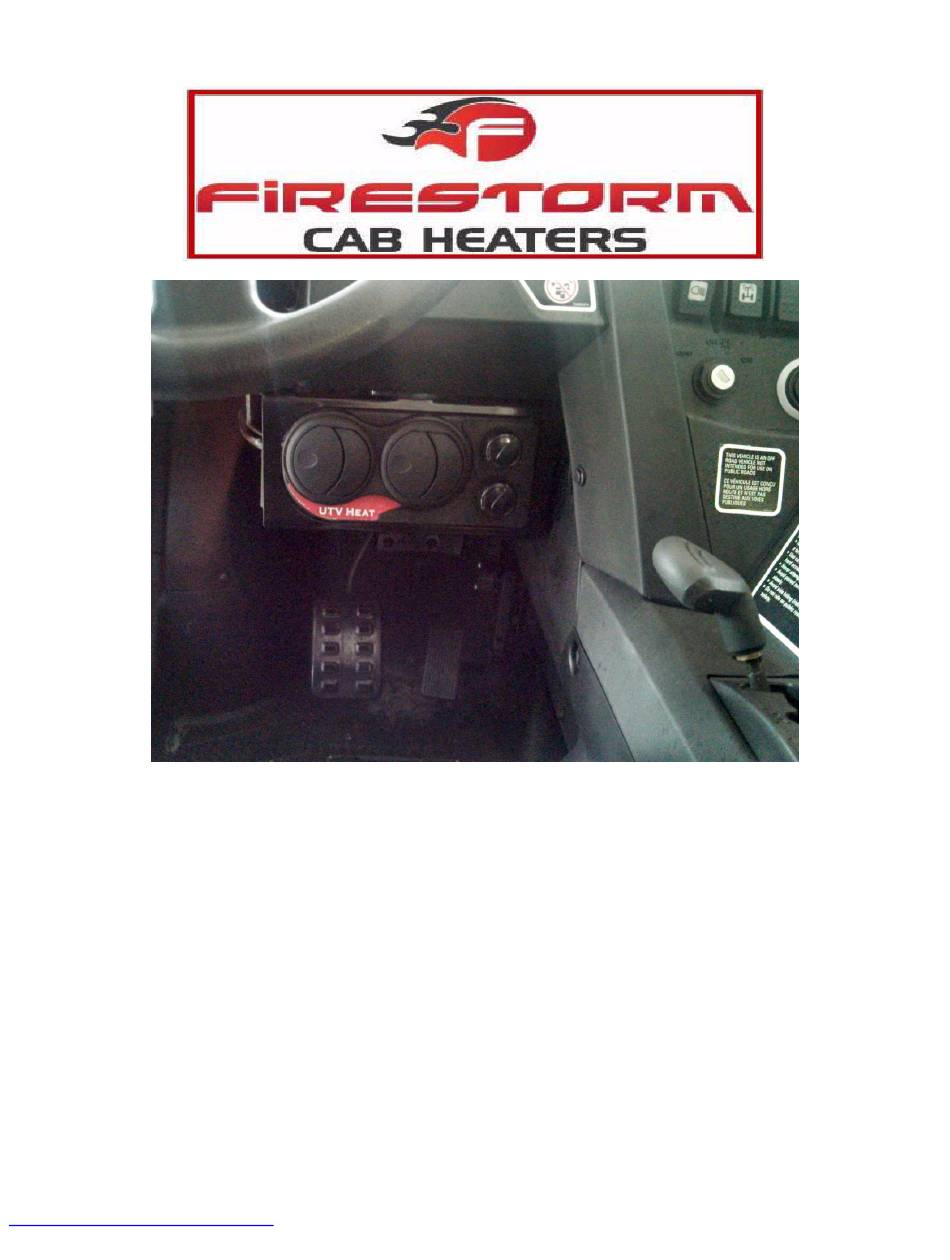

Can Am Maverick Firestorm Heater Kit Instructions.
Please read all instructions before beginning installation.
When working on cooling systems always allow vehicles to cool to avoid being burned or scalded by hot coolant.
Always disconnect vehicle's negative battery lead before working on electrical systems. Please note: Before drilling
any holes check area behind firewall or dash panels to make sure no damage will occur by drilling holes.
Carefully cut out heater hose hole in rubber shield on firewall as shown in Figure 1 by making an X cut with a utility knife
in the rubber shield.
Take the heater support brackets and install U-Nuts onto bracket as shown in Figure 2.
Remove bolt located just behind dash lower panel on center panels as shown in Figure 3. Using factory bolt place
through right heater support bracket then fitting the large ¼" fender washer, install right heater support bracket as
shown in Figure 3. Do not tighten bolt fully, tighten so the bracket still can be adjusted.
www.utvpartsandaccessories.com 1 800 596 0785 Version 10/31/13
