REGOLO FLANGE
WARNINGS
Risk of electrical shock or fi re, disconnect power during installation or servicing. Read all instructions completely before starting installation.
Install and wire in accordance to all national and local codes by a certifi ed electrician. Fixture may be sharp, handle with care. Let fi xture
cool before maintenance.
AVERTISSEMENTS
Risque d'électrocution ou d'incendie. Déconnectez l'alimentation durant l'installation ou la maintenance. Lisez attentivement toutes les
instructions avant de commencer toute installation. Faites installer et câbler selon les normes Nationales et Locales par un électricien
certifi é. Les installations peuvent être coupantes, à manipuler avec précaution. Laissez refroidir les installations avant une opération de
maintenance.
ADVERTENCIA
Riesgo de descarga eléctrica oun incendio, desconecte la alimentación durante la instalación o servicio. Leer todas las instrucciones
completas antes de empesar la instalación. Instalar y cablear en acuerdo a las reglas nacionales y códigos locales por un electricista
certifi cado. El accesorio puede estar agudo, agarre con cuidado deje que el acessorio. Enfriar antes de mantenimiento.
RUN CONFIGURATIONS ARE SPECIFIC TO FACTORY DRAWINGS. CONSULT SUBMITTAL BEFORE BEGINNING INSTALLATION.
STARTER = LUMINAIRE LENGTH + 3/4"
10770 East 51st Ave, Denver, CO 80239 - Phone (303)287-9646 Fax (303)287-0316
Instructions and dimensions are subject to change without notifi cation. Instruction sheets on our website supersede all other versions.
START OF ROW
INSTALLATION
PAGE 3

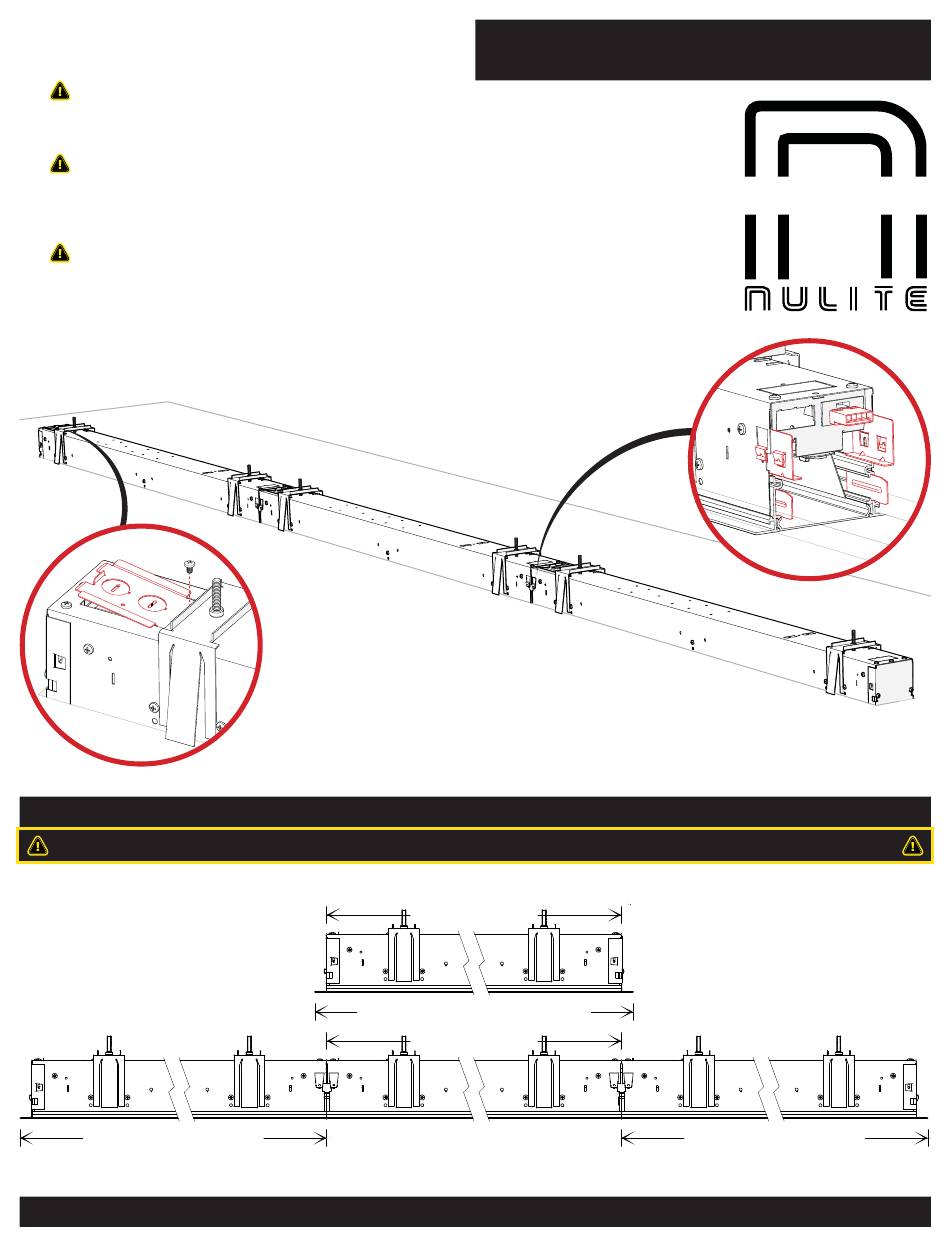

LUMINAIRE LAYOUT
LUMINAIRE LENGTH
STAND ALONE = LUMINAIRE LENGTH + 1-1/2"
LUMINAIRE LENGTH
MID LUMINAIRE CONSECUTIVE SECTION
INSTALLATION INSTRUCTIONS - LED
ROW INSTALLATION
PAGE 4
a r c h i t e c t u r a l
STARTER = LUMINAIRE LENGTH + 3/4"
2016 Rev. A
