Summary of Contents for CoComm CV100

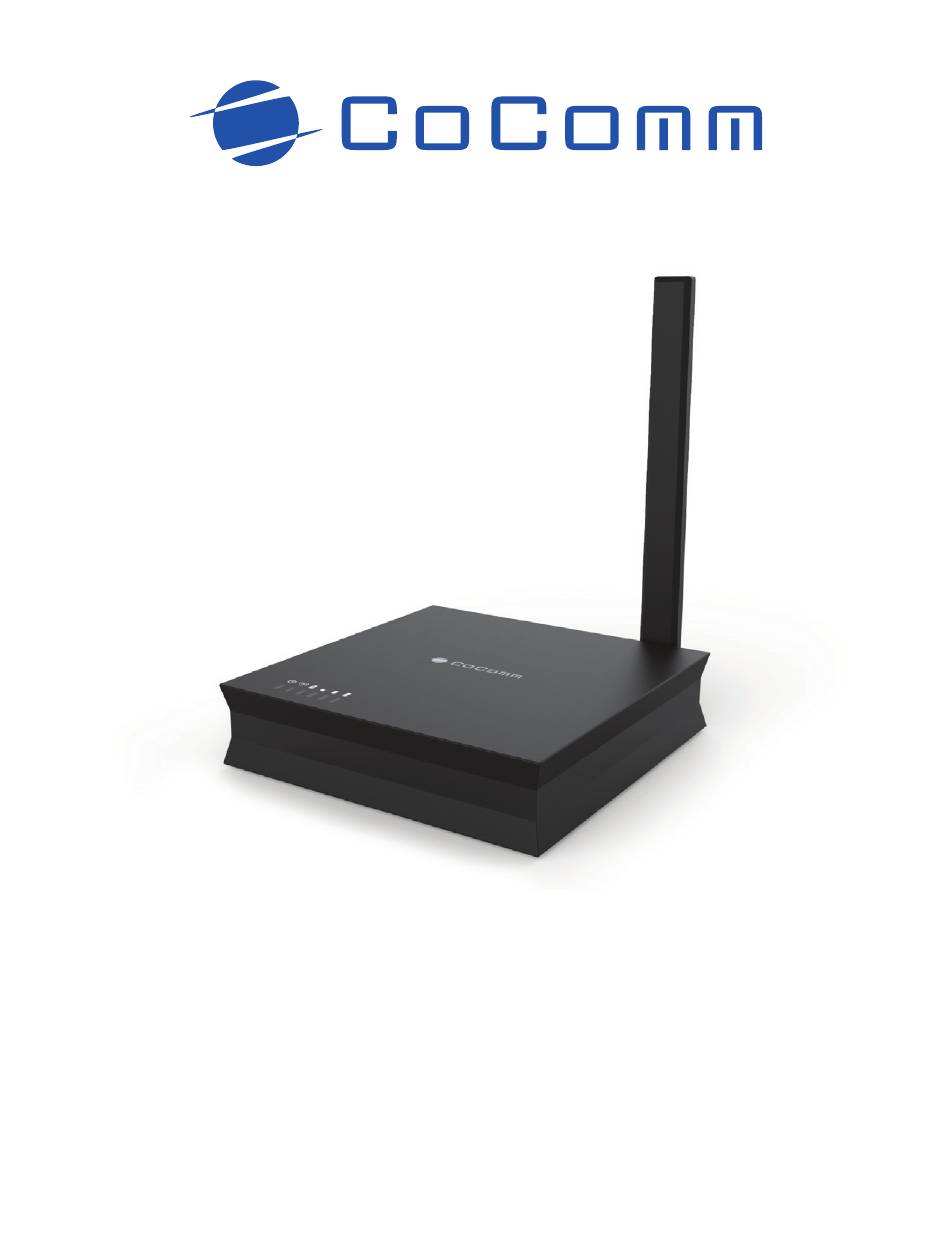

Page 1 CV100 Manual Read carefully the instructions contained in this operation manual before you start using the device...
Page 3 CV100 User Manual...
Page 5: Table Of Contents
Index Introduction ..................Sales package contents ..............Precautions for use ................Presentation .................. Installation ..................Switched On & Off ................. Indicators and Reset button ............Calling ................... Advanced Services ................ Keypad Codes ................Troubleshooting ................SAR certification information ............Regulations ...................
Page 6: Introduction
Introduction Thank you for choosing the Co-Comm CV100 voice box. This voice box is designed for use with GSM 900/1800MHz networks. For operation requires a valid SIM card from your network operator. Please consult your network operator for more information.
Page 7: Sales Package Contents
ACQUISITION DATE rectification, cancellation and opposition must be carried out sending a strikes), fire, accident, natural catastrophe or public disturbance. communication to the address above or an e-mail to clientes@cocomm.es, CLIENTE adding the word LOPD as subject. consequence of breaks, hits, damages to liquid crystal displays, normal use and...
Page 8: Precautions For Use
Precautions for use Operating Environment Your voice box Co-Comm CV100 is an RF transmitter, so please turn off your terminal or disable the radio functions in the following situations: ● When you are on an airplane. ● When you are in the vicinity of flammable atmospheres and is indicated by the entity responsible for risk management.
Page 9 Precautions for use Pacemakers Pacemaker manufacturers warn that the distance between the voice box and the pacemaker of the heart must be at least 6 inches (15.3 cm), otherwise the voice box can interfere with pacemakers. People with pacemakers should consider the following: ●...
Page 10 Precautions for use Care and maintenance Your voice box is a product of superior design and should be treated with care. The following tips will allow you to enjoy this product for a longer period of time: ● Keep the voice box away from children and pets. They could damage the voice box accidentally or choke on small parts.
Page 11 Precautions for use Battery use ● Never use any charger or battery if damaged. Use the battery correctly. ● Do not short-circuit the battery, as this may damage the battery or cause a fire. ● Do not subject the battery to high temperatures or fire as it may explode. ●...
Page 12: Presentation
Presentation 10 11 Power on/off indicator Phone port 2 Network status indicator USB Port Power on/off button Battery charge indicator Signal strength SIM card slot indicator Battery compartment Antenna connector Battery connection Reset button Fixing screw of the battery compartment cover Power input Phone port 1...
Page 13: Installation
Follow the steps below to install the SIM card and the different accessories of your voice box Co-Comm CV100: Check that your Co-Comm CV100 is turned off and disconnected from the power adapter. Remove the cover of the battery compartment on the bottom of the device to install the SIM card.
Page 14 The first time you turn on the Co-Comm CV100 the battery charge level may ● be low. Charge it for a while and then turn it on. If you do not use the Co-Comm CV100 for a long period of time, remove the ● battery.
Page 15 Use only compatible external antennas. ● To use the Co-Comm CV100 it is recommended to connect the power adapter. Connect the cable from the power supply to the connector on the back of the voice box, and then plug the power supply into a household AC power outlet.
Page 16 Co-Comm CV100. Do not connect the Co-Comm CV100 to the phone connection on the wall (or ● to a public switched telephone network), as it could be damaged.
Page 17 Installation Battery Charge When the battery level is low, the battery’s front battery LED will flash red. Plug the power adapter into the device to start charging. The battery indicator will blink blue during charging mode and once it is fully charged, the indicator will remain fixed in blue.
Page 18: Switched On & Off
Press the power on /off button to turn on the Co-Comm CV100 and press it again to turn it off. The Co-Comm CV100 takes around 15 seconds to start. If your SIM card has the PIN code activated, the red status indicator will be flashing red.
Page 19: Indicators And Reset Button
Indicators and Reset button Power on/off ■ Off: The device is turned off indicator ■ Fixed blue: The device is turned on Battery ■ Off: The battery is not installed, it is fully discharged or the device is in energy saving mode charge indicator ■...
Page 20: Calling
(double beep), it means that the interval has been set. If the reject tone (long beep) is heard, it means that an incorrect key was pressed and the interval could not be set. Wait until the Co-Comm CV100 returns to off-hook status and the dial tone is heard again to set the interval.
Page 21 Calling Multiple Call Co-Comm CV100 multiple call funtion allows you to talk with two users at the same time. While you are being in the first call, and a second incoming call is received, dial #*2# code to answer the second call. In that moment the first call will be on hold. Then, you should press #*13# to establish the multiple call between the caller of the first call, the caller of the second call and you.
Page 22: Advanced Services
Advanced Services Enable call forwarding The Co-Comm CV100 can forward calls to another telephone number. The phone will not ring until the service is deactivated. Dial *#73*1*Number# code (or *#73*1*0Number# in the case of having company number with extensions) where Number will be the phone number to which you want to forward calls.
Page 23: Keypad Codes
Keypad Codes Item Keypad Code Description Hold Call #*2# Enable to hold or resume a call to answer other call at the same time and also swap each other *#77*1# Enable the call waiting function *#77*0# Disable the call waiting function #*0# Reject an incoming call #*1#...
Page 24 Keypad Codes Item Keypad Code Description *#73*1*Number# Forward all calls to the indicated *#73*1*0Number# "Number" (in companies rate with extensions) *#73*0# Cancel the forwarding of all calls Check the status of the call *#73*2# forwarding *#76*1*Number# Forward calls to the indicated "Number"...
Page 25 Keypad Codes Item Keypad Code Description *#74*1*Number# Forward calls to the indicated "Number" when unavailable *#74*1*0Number# (if the device is off or off coverage) (in companies rate with extensions) Call Forwarding Cancel the forwarding of calls *#74*0# when unavailable Check the status of the call *#74*2# forwarding when unavailable Insert SIM card PIN...
Page 26 Keypad Codes PUK code (Personal Unblocking Key) allows you to change the blocked PIN code. If you enter the PIN incorrectly three times, the SIM card will be blocked and the red led will flash faster. In this case, you must enter the PUK code provided with the SIM card to unblock the blocked PIN.
Page 27 Keypad Codes Item Keypad Code Description *33*Password# Enable to activate outgoing calls barring (check password with operator). It is not valid for company rate cards #33*Password# Enable to deactivate outgoing calls barring (check password with operator) *35*Password# Enable to activate incoming calls barring (check password with operator).
Page 28: Troubleshooting
It is in a weak signal area (check the LED signal level). Move to a place with better signal strength. ● Check the sound level. ● Your network operator may have connection problems. ● Check if the phone connected to the Co-Comm CV100 is working correctly.
Page 29 Troubleshooting Hands-free function is not working If the Co-Comm CV100 is connected to two phones and one of them is in use, it is possible that the hands-free function of the other can not be used. If this happens, use the phone.
Page 30: Sar Certification Information
SAR certification information This mobile device meets guidelines for exposure to radio waves. It is a radio transmitter and receiver low power. It is designed not to exceed the limits for exposure to radio waves as recommended by international guidelines. These guidelines were established by the International Commission on Non-Ionizing Radiation (ICNIRP), which is an independent scientific organization, and include safety measures designed to ensure the protection of persons, regardless of age or health...
Page 31: Regulations
You can obtain a copy of the declaration of conformity with the directive mentioned by sending an email to the address clientes@cocomm.es, adding the word DoC in the Subject line, and specifying the lot number of the product in the body of the message.
Page 32 Regulations This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.
