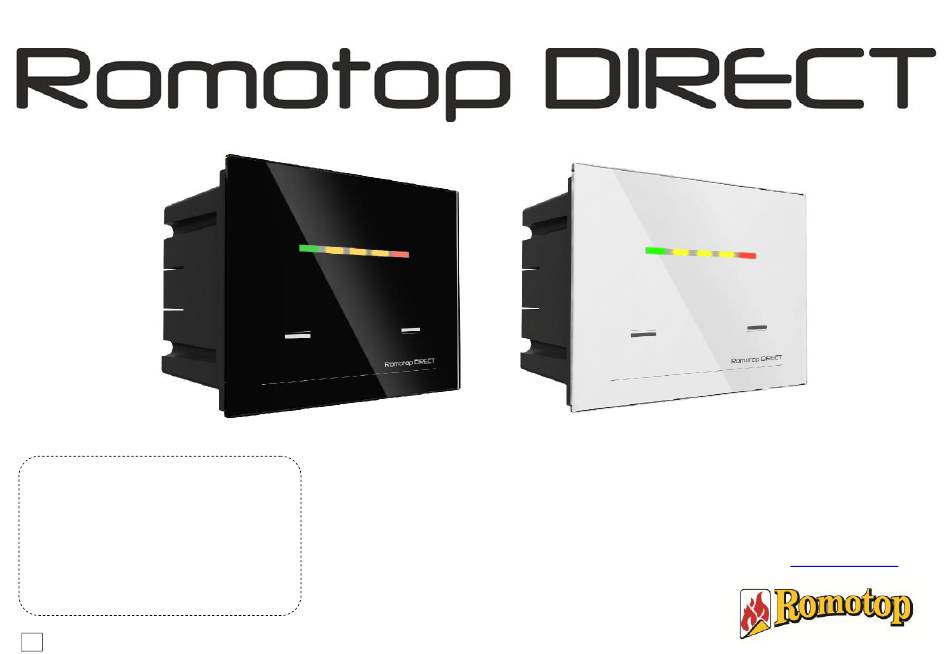

Summary of Contents for Romotop DIRECT
- Page 1 ROMOTOP spol. s r.o. Komenského 325 742 01 Suchdol nad Odrou Czech Republic tel.: +420 556 770 999 fax: +420 517 075 894 e-mail: info@romotop.cz...
- Page 2 (or fireplace stove), maximizes the efficiency of the combustion process. The Romotop DIRECT automatic regulator is specifically designed and configured for your concrete fireplace insert on the basis of our extensive experience and measurements of the combustion process using state-of-the-art Horiba technology, used by leading European laboratories, directly in the Romotop testing room.
- Page 3 The progress of the combustion cycle is monitored by • Noise level: < 42 dB LEDs installed under the glass of the front panel of the Romotop Direct automatic regulation unit (for the color • Inputs: 1 analog – temperature sensor spectrum, see the Operation section).
- Page 4 Color of the front panel of fire or explosion. identification • REG 01 Short Black The Romotop Direct automatic regulation unit can only be connected to an alternating current power point with voltage of 230V/50Hz. REG 02 Short White • REG 03...
- Page 5 8. Servomotor assembly Installation of servomotor assembly 1) Unscrew the 3x M6 screws pos.1 from the bottom of the fireplace insert and remove the lid pos.2. Description of servomotor components axis fixture (short - long) teflon washer M4 self-tapping screw plastic servomotor fixture 3x washer spring...
- Page 6 Note: After installing the servomotor re-mount the servomotor backstops defining the operation Installation of the temperature sensor into the dome of the servomotor. 1). Unscrew the M10 screw from the side of the dome pos.1. 2). Install screw fitting pos.2 into the created opening. Procedure: 3).
- Page 7 Conduct the servomotor, temperature sensor and possibly the door switch cable to the box. 6). Adjust the temperature sensor to ensure that the green cable is not touching any part of the fireplace Connect the cables to the Romotop DIRECT control unit board in accordance with the manual, insert body.
- Page 8 Reduction frame 4 securing screws Recess box 11.3 Dimensional drawing of the Romotop DIRECT control unit 79,7 front panel 3. Before installation of the control unit, connect all cables, including the temperature sensor. Mount the control unit with the front panel on the frame by placing the hooks into the holes and pulling downward.
- Page 9 If the switch is not working due to fouling, it may be taken apart and cleaned. To take the door switch apart, unscrew the bottom switch section. Do not use any preservatives or lubricants on the door switch. 13.2 Electrical wiring diagram for the Romotop Direct control unit board 12.4 Contents of the package - door switch, top plate, tightening nut - 1.5 mm hex key...
- Page 10 If only the red light flashes every 5 sec, it signals a defect in the temperature sensor. All this information is summarized in a clear table below with a description of the operation of the Romotop DIRECT control unit.
- Page 12 16. Description of the regulation process 17. Description and selection of the combustion mode As stated in the Regulator Operation - Configuration table in section 14 if you hold the right capacity 16.1 Starting the fire button for a longer period, the currently set combustion mode is displayed by lighting one of the five diodes. If you wish to set a different mode from the five combustion modes, release the button and pressthe the left 1.
- Page 13 After the 230V power supply is restored, no other manual intervention to the automatic regulator is required. On the next start of automatic regulation, the system will be automatically set to the starting position. Romotop Regulation of combustion MODEL: DIRECT INPUT POWER 230V~ RATED FREQUENCY: 50Hz RATED INPUT: OUTPUT...
- Page 14 WARRANTY CERTIFICATE DELIVERY PROTOCOL ROMOTOP spol. s r.o. COMPLAINT AND WARRANTY TERMS AND CONDITIONS APPLICABLE FOR BUYERS (CONSUMERS) Client: ..........................1. These Complaint and Warranty Terms and Conditions have been prepared in accordance with the corresponding provisions of the Civil Code and the Consumer Protection Act.
