Summary of Contents for Ecler VEO-AXS4P

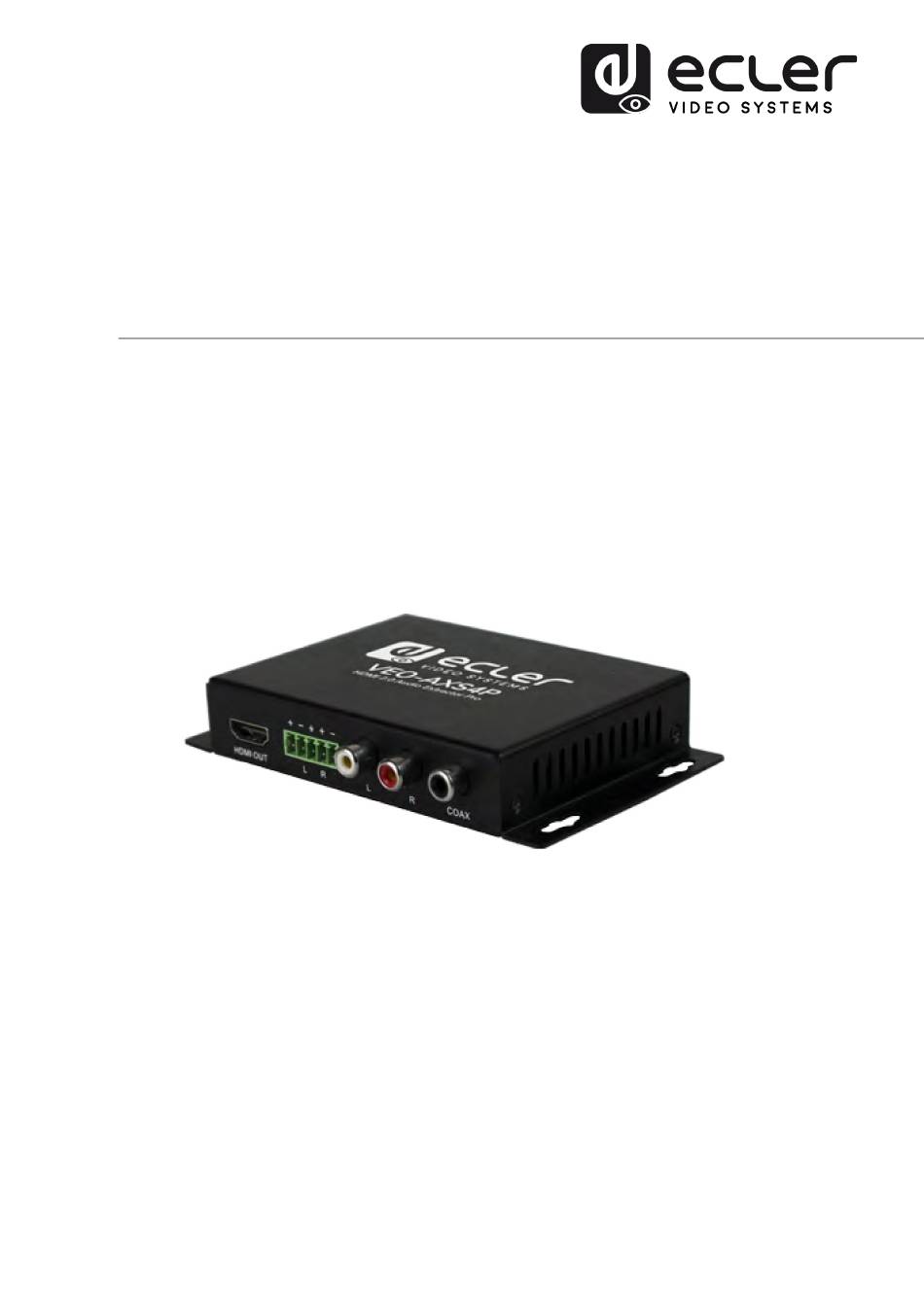

- Page 1 VEO-AXS4P AUDIO EXTRACTORS HDMI 2.0 audio extractor USER MANUAL v.20200409...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................5 INTRODUCTION ........................5 PACKAGE CONTENTS ......................6 PANEL DESCRIPTIONS ......................6 6.1. Frontal Panel ..........................6 6.2. Rear Panel ............................ 6 CONNECTION AND INSTALLATION ................... 7 APPLICATION DIAGRAM ....................... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note
Dolby Digital and DTS multichannel signals through the coaxial S/PDIF digital output. VEO-AXS4P is HDCP 2.2 and HDMI 2.0 compliant, supporting data rates up to 18 Gbps and video resolutions up to 4K/60Hz with 4:4:4 chroma sample and HDR contents. -
Page 6: Package Contents
PACKAGE CONTENTS • 1 x Main Unit: 4K HDMI Audio Extractor • 1 x International DC 5V Power Supply PANEL DESCRIPTIONS 6.1. Frontal Panel 1. Power/HDMI Status Indicator 2. Audio EDID selector 3. HDMI 2.0 Input 4. Micro USB (Reserved) 5. -
Page 7: Connection And Installation
2. Connect a HDMI display device (such as a 4K or Full HD display) to the HDMI output of VEO-AXS4P. 3. Connect S/PDIF audio cable or a Balanced/Unbalanced analogue audio cable to an amplifier or other audio devices input. 4. Connect the 5VDC power supply to the VEO-AXS4P 4K HDMI Audio Extractor. APPLICATION DIAGRAM... -
Page 8: Technical Specifications
Audio Bit Depth Support of 24-bit Sample Rate 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz Distance HDMI up to 10 meters with Ecler VEO cables Operating Temperature -10°C to 55°C 14°F to 131°F Humidity 10 to 90% non-condensing Power Consumption... - Page 9 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
