Sensio SE9080HD Installation Instructions

Sensio SE9080HD Installation Instructions

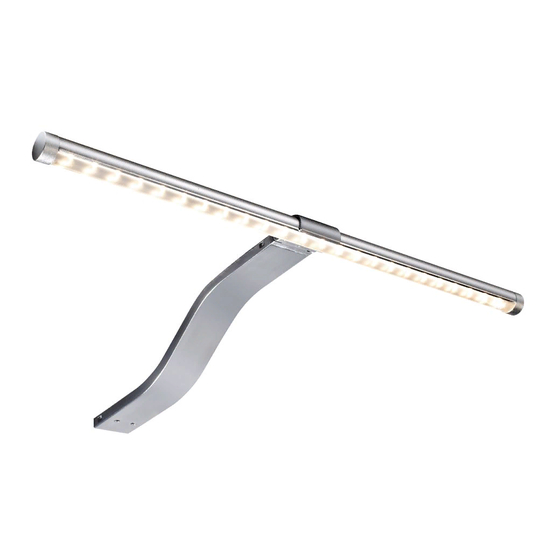

Hd led in-cabinet light with ir sensor

Advertisement

InstructIons
IMPortant: please read these instructions before commencing installation and retain for future reference.

Components

1 x sE9080HD HD lED In-cabinet light
with mounting bracket and cable

Important safety information

Please read these instructions carefully before attempting to install
this product. It is advisable to keep these instructions in a safe place
for further reference.
We recommend that you consult a qualified electrician.
All electrical installations must be carried out in accordance
with current Iee wiring regulations (BS7671).
these products must not be modified, if any modifications are
made, it may invalidate the warranty and may render the product
unsafe. these lED lights operate low voltage (24V).
do not wire the individual Led light fittings directly to the mains.
This product is for indoor use only. Keep out of moisture and use
only in dry rooms.

Safety instructions

1. Before commencing installation or maintenance, isolate the main
electrical supply for the appropriate circuit at the fuse board.
2. this product requires a 24V lED driver which is only
suitable for connecting to a 240V 50Hz supply.
3. the light should be mounted onto a secure surface.
Waste electrical & electronic equipment (Weee)
the symbol on the product, or on the document accompanying the product, the crossed out
wheelie bin symbol, indicated that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic waste.
HD LED
In-CabInEt
LIgHt wItH
IR SEnSoR
Code: Se9080Hd
1 x Fitting Instructions
• If in doubt installation must be carried out by a qualified
• Install on smooth flat surface(s) only.
• the Wattage of this product is 2W. Make sure that
• We recommend using a sE40553 15W lED Driver with this fitting.
• for more fittings, use the sE40555 15W 24V lED Driver. You will
4. Position lights where they will not be exposed to steam
5. suitable for furniture lighting.
6. When the lamp expires the fitting must be replaced.
7. class III safety extra low voltage (sElV).

Tools required

Pencil
10mm
Drill Bit
electrician.
the lED driver used with these fittings has an adequate
max wattage.
You will be able to run a maximum of 3 fittings per driver.
be able to run a maximum of 6 fittings per driver.
or splashes etc.
PZ1 screw Bit
Power Drill
