High End Hog iPC Manual

Replacing a sata hard drive

Replacing a SATA Hard Drive on a Hog iPC Console

Before beginning, follow these setup instructions:

- Disconnect power to the console.

- Disconnect all monitors, external devices (keyboards, widgets, etc) and

remove the main console portion from the roadcase.

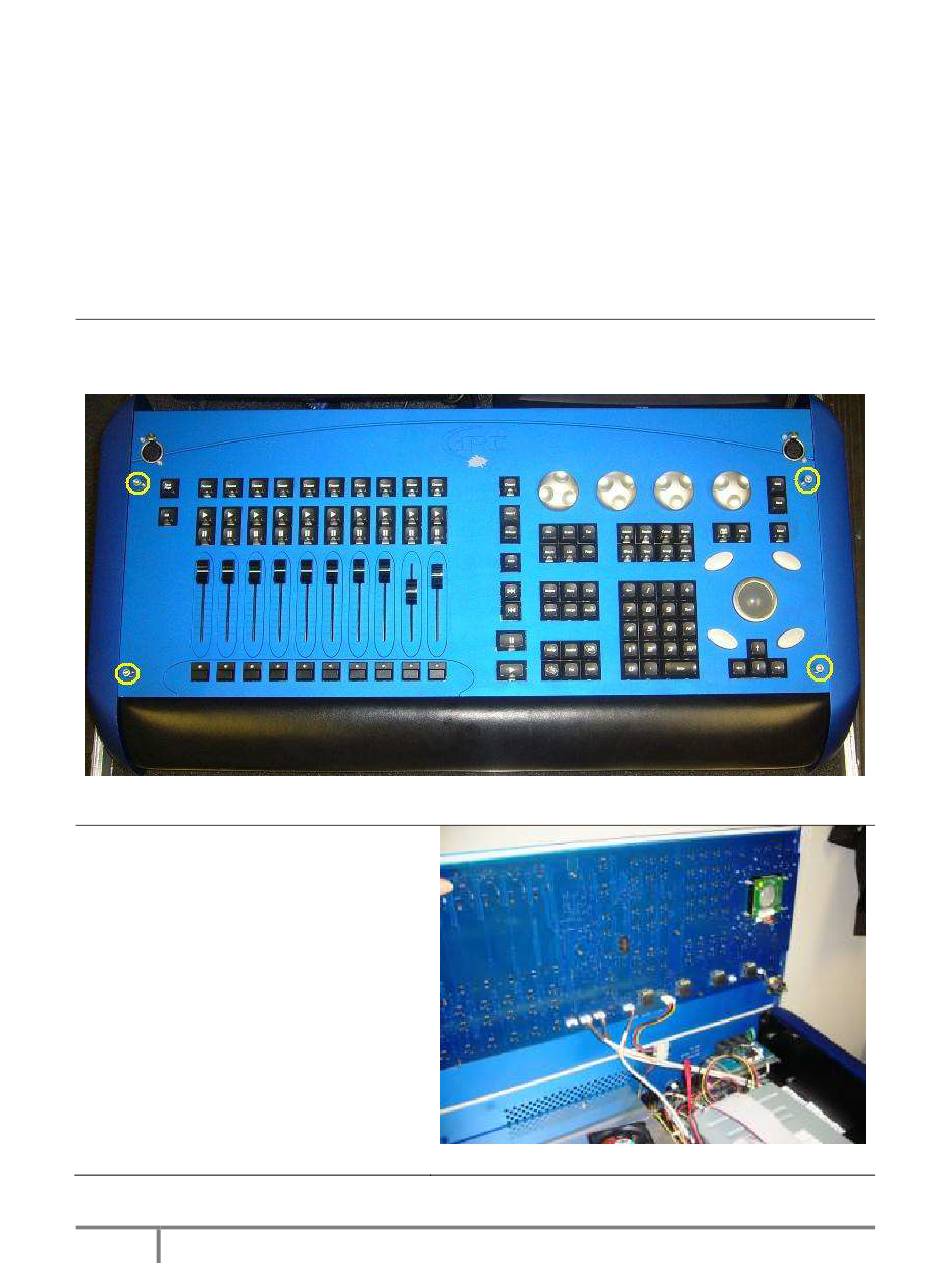

1. Use a 4mm hex key to remove the 4 silver screws holding the front panel in

place

(encoder

Gently lift the front panel PCB

(circuit board) up as you would a

car hood (there are connections at

the top of this board that can be

damaged if you pull straight up).

Please note this circuit board is not

hinged to the console.

Created by Cat West for High End Systems

wheels

and

fader

caps

need

not

Replacing a Hog iPC Hard Drive

November 2007

removed).
