- Page 1 DIGITAL MODULATOR SINGLE DVB-T ENCODER/MODULATOR USER MANUAL...
- Page 2 Stand alone configuration is made easy through 3 tact switches and ergonomic menu’s. To make the configuration of the DMHDS ultra simple, a special software DMHDiface is available that you can download on our website: www.antiference.co.uk/product/conexer-single-hd-dvb-t-modulators/ CONTENTS Safety considerations page 3...
- Page 3 1 SAFETY CONSIDERATIONS 1.1 Connecting to the mains supply This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before carrying out maintenance operation or modification of the installation, the modulator has to be disconnected.

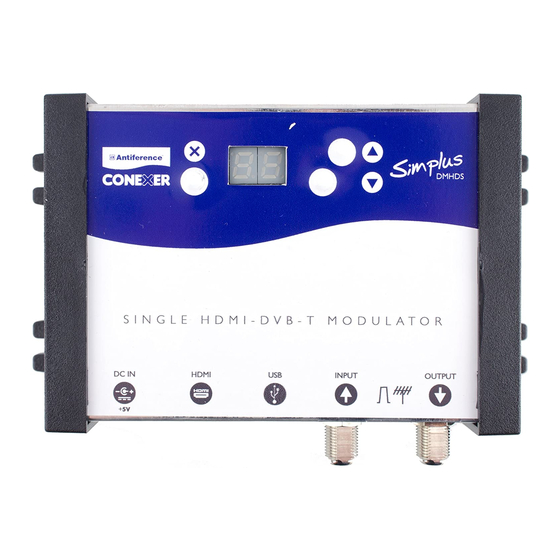

- Page 4 2 - Description of the different elements Power supply input (5 V/2 A) USB input (for programming the DMHDS by PC) RF input RF output HDMI input T3 T2 Alphanumeric Display SELECT button UP button Down button...
- Page 5 3 - Installation and menu structure 3.1 - Installation Install the DMHD01L against a wall using the wall fixing brackets to ensure cooling of the housing through natural convection. Connect the audio and video source using a HDMI cable. Connect the RF input cable (if present) and the RF output cable.
- Page 6 4 Advanced settings using a PC More advanced settings for the DMHDS can be achieved using a separate Windows PC. Please download and install the software DMHDiFace available from the Antiference website. www.antiference.co.uk/product/conexer-single-hd-dvb-t-modulators/ After installation of the software, connect the DMHDS using a USB cable (not supplied) to your PC and then launch the DMHDiFace.
- Page 7 0.45kg 6 - Declaration of Conformity: We, ANTIFERENCE LIMITED herewith declare that the modulator CONEXER DMHD01L complies with all essential requirements and any other applicable conditions set forth on directive 1999/05/CE. According to the WEEE (Waste Electrical and Electronic Equipment) EU Directive, do not dispose of this product as household waste or commercial waste.
- Page 8 www.antiference.co.uk...
