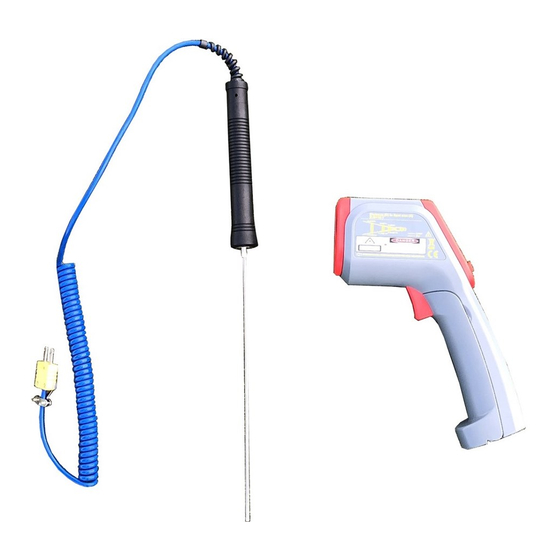

Infrared thermometer w/ laser and probe
Hide thumbs
1
2
3

Advertisement

Table of Contents

IR2-S Infrared Thermometer w/ laser and probe
For Model with probe socket
The thermometer is a non-contact infrared thermometer. There are many mathematical
modes for the Infrared function. Please remember to keep away from children and don't
use it for safety related applications.
(Default Screen)
Simply aim the thermometer at the measure target with Lens (○ ○ ○ ○ 7 ) and press Meas.
key (○ ○ ○ ○ 6 ) to display the surface temperature. The Distance:Spot is 16:1. Please
make sure the target area is within the field of view.
CAUTION
1.
WHEN DEVICE IS IN USE, DO NOT LOOK DIRECTLY INTO THE LASER
BEAM–PERMANENT EYE DAMAGE MAY RESULT.
2.
USE EXTREME CAUTION WHEN OPERATING THE LASER.
3.
NEVER POINT THE DEVICE TOWARDS ANYONE'S EYES.
4.
KEEP OUT OF REACH OF ALL CHILDREN.
Caution: The measure range is for thermometer only. User should choose proper probe types for different kinds of application.
Please make sure the target to be measured will not exceed the temperature range of the probe to avoid permanent damage of
the thermocouple probe.
Caution: To avoid electric shock and thermometer damage, do not measure live circuit where voltage exceeding 24V AC RMS or
60V DC with the thermocouple probe.
EMC/RFI I I I
:Readings may be affected if the unit is operated within radio frequency electromagnetic field strength of
approximately 3 volts per meter, but the performance of the instrument will not be permanently affected.
Instructions
Ref.No.：042007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR2-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Turf-Tec IR2-S

  • Page 1 IR2-S Infrared Thermometer w/ laser and probe Instructions For Model with probe socket The thermometer is a non-contact infrared thermometer. There are many mathematical modes for the Infrared function. Please remember to keep away from children and don’t use it for safety related applications.
  • Page 2 FUNCTION Press Mode key (○ ○ ○ ○ 4 ) for scrolling more display function as follows. Here will show the emissivity data. (The default emissivity is 0.95.) Press Mode key (○ 4 ) , then press Up key (○ 2 ) or Down key (○ 3 ) to set the emissivity, then press Mode key (○...
  • Page 3 LCD ERROR MESSAGES The thermometer incorporates visual diagnostic messages as follows: ‘Hi’ or ’Lo’ is displayed when the temperature being measured is outside of the settings of HAL and LAL. ‘Er2’ is displayed when the thermometer is exposed to rapid changes in the ambient temperature. ‘Er3’ is displayed when the ambient temperature exceeds 0 C (32°F) or +50 C (122°F).
