U S E R ´ S M A N U A L

Safety from above

Table of Contents

Need help?

Do you have a question about the mSafe 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for MobySafe mSafe 100

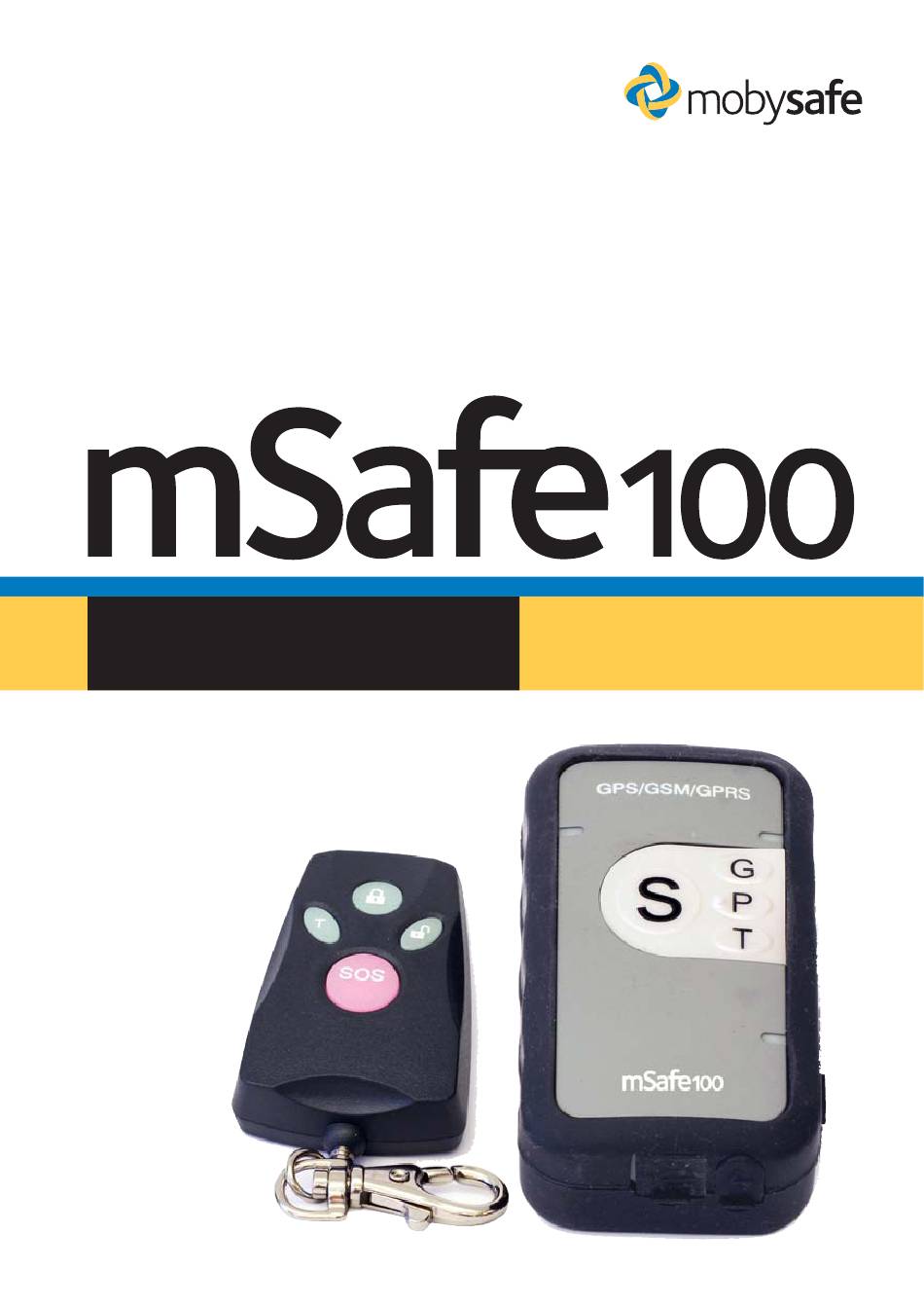

Page 1 U S E R ´ S M A N U A L Safety from above...
Page 2 w w w. m o b y s a fe . co m . b r...
Page 3: Table Of Contents
Contents 1. About mSafe100 ............................4 2. Description of Unit ............................5 3. Description of Lights ............................8 4. Buttons: Signal Light & Sound ........................9 5. Battery Tips..............................10 6. Getting Started ............................11 7. Alarm functions ............................12 8. Receiving/Testing Signals ........................15 9. Quick Reference Guide ..........................16 10.
Page 4: About Msafe100
It has a rugged design and is waterproof and shockproof. Furthermore, with very low power consumption and high battery life, the mSafe 100 can stay on duty for up to 3 days. Device features •...
Page 5: Description Of Unit
2. Description of Unit Front view Power indicator Charging light Geofence SOS button Park/Motion GPS Antenna Volume/ test Status light Charging light Light stays on when charging and off when charging is completed SOS button Report to mobyfinder.com, when help is needed GPS Antenna For receiving GPS signals Power indicator...
Page 6 Rear view Screw Label Armband Holders (not shown) are optional Screw stabilizer For place the unit on other devices Label Showing specifications of the product Charger jack Bottom View Signal connector Signal connector This port is to connect to battery case Charger jack For charging the battery of the main unit ■...
Page 7 Left view Sim card holder Insert direction for SIM card SIM holder Insert the SIM card Top view On/off switch Speaker Strap On/Off switch To turn on/off the power Speaker Sends out the sound when talking Strap mount To hang the strap or necklace ■...
Page 8: Description Of Lights
3. Description of Lights LIGHT LED COLOR AND ACTION DESCRIPTION Blue Light stays on Signal light mSafe is looking for a GPS signal for approximately 2 minutes Sequence when device is turned on Blue Light blinks for mSafe has received a valid GPS signal approximately 2 minutes Green Light blinks 4 times mSafe has received a valid GSM signal...
Page 9: Buttons: Signal Light & Sound
4. Buttons: Signal Light & Sound BUTTON LIGHT SOS Button Green light stays on until (press and hold alarm is sent. down for at least 4 seconds) Geofence Button (press and Green light with 1 blink hold down for at least 4 seconds) Park/Motion Button No light on signal Test Button...
Page 10: Battery Tips
5. Battery advice Battery life depends on the network, signal strength, temperature, features, and accessories in use. For maximum performance, please note the following guidelines: • New batteries or batteries stored for a long time may take more time to charge •...
Page 11: Getting Started
6. Getting started Charging the Battery 1. Insert the Home Charger into the charger jack on your mSafe unit (see “Description of Unit” for location of jack). 2. Plug the other end of the home charger into an electrical outlet. 3.
Page 12: Alarm Functions
7. Alarm functions in mSafe100 Button instructions SOS button, it will send out emergency SMS reports when pressed and then finish the emergency process. G (Geofence) button, press to set up the Geofence and press again to release the Geofence. P (Parking/Motion) button, press to arm the device for vibration sensor triggering and press again to disarm the device.
Page 13 Alarm functions SOS Button The SOS Button should ONLY be used for an emergency. By pressing and holding down the SOS Button for 4 seconds, a message is sent including the location to the contact you chose to be notified. Within 120 seconds after the SOS button has been activated, the terminal will vibrate 3 times when the emergency control center, if used, calls to listen in.
Page 14 How to activate/deactivate Geofence Press the “G” button and the blue LED stays on, it means the Geofence is set up. Press the “G” button again and the blue LED goes out, it means the Geofence is released. How to activate/deactivate Park/Motion Press the “P”...
Page 15: Receiving/Testing Signals
8. Receiving/Testing Signals Receiving GPS & GSM (cellular) Signals Every time you turn your unit on, it immediately starts searching for a GPS signal, then a GSM signal. The following light sequence indicates which signals have been received: 1. Signal light stays solid blue for approximately 2 minutes while searching for a GPS signal.
Page 16: Quick Reference Guide
9. Quick reference guide FUNCTIONS OPERATIONS Press and hold the SOS Button for a minimum of 4 seconds. The Signal Sending an SOS light will be green while the unit reports the emergency to mobyfinder.com and to the speed dial numbers that you set. Mobile phone numbers that have been preset and stored in Speed Dial Buttons Location request 1-3 can call and request location information from the unit.
Page 17: Specifications
10. Specifications ITEM SPECIFICATION Dimension L: 80 mm, W: 45 mm, H: 31 mm Weight 100 g Frequencies 900/1800/1900 MHz Frequency of GPS reception 1575.42 MH Channels of GPS reception 16 channels Type of location report GPRS or SMS Storage temperature Between -10°C and +60°C Battery capacity 850mA...
Page 18: Helpful Hints
12. Helpful hints • For optimum performance, you should keep your mSafe100 in the “On” position at all times, even while charging the battery. • Signal light will always be red when the unit is in the On position while charging, even when the battery is fully charged.
Page 19 ■ User´s manual mSafe100...
