Kelima UM018G User Manual

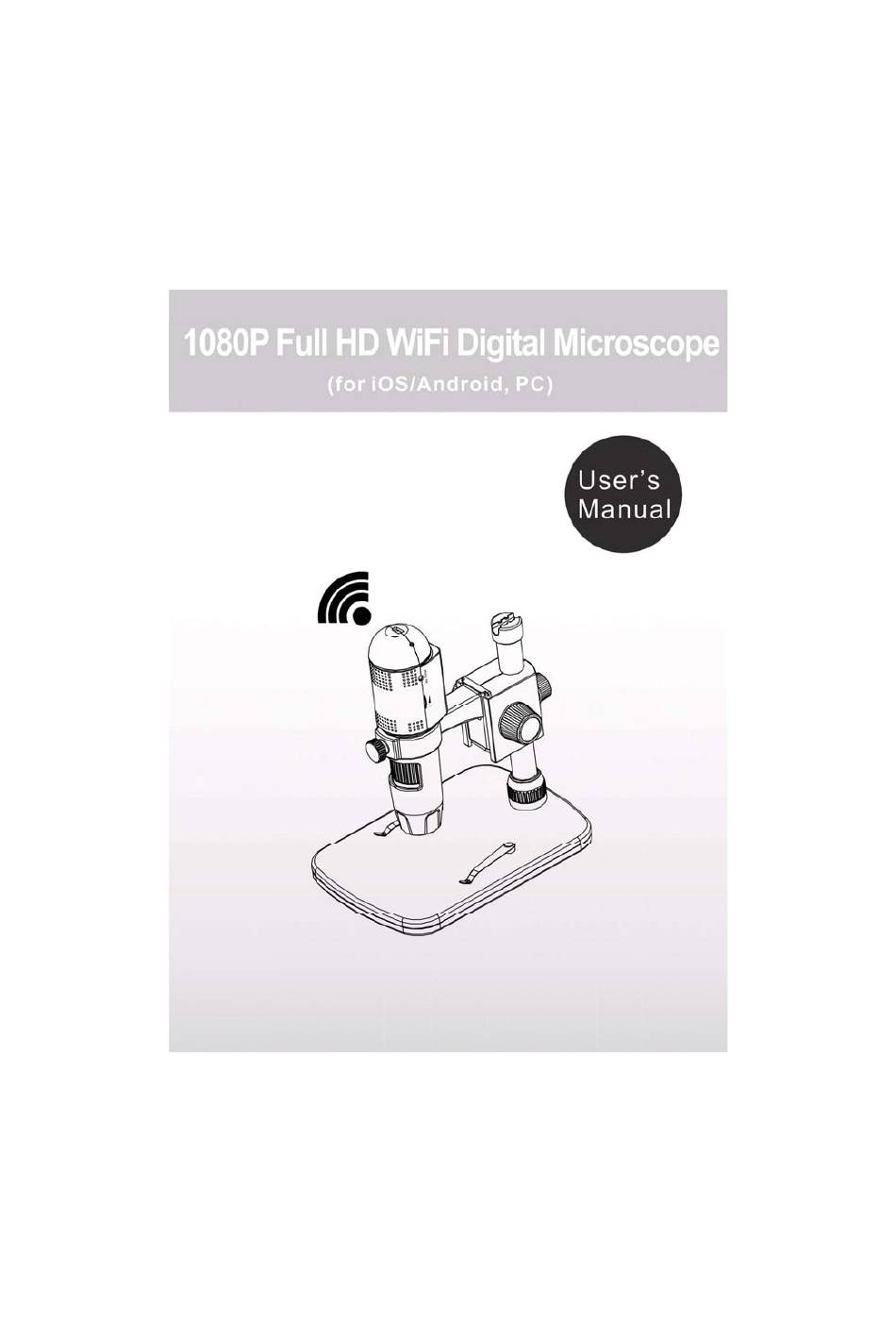

1080p full hd wifi digital microscope for ios/android, pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for Kelima UM018G

  • Page 2: Table Of Contents

    Table of Contents Precaution…………………………………...……………….2 Preparation………………………………………………..…3 Standard accessories……………...…………….4 Parts Names & Functions……………………..5 System requirements……………..….……..…6 Technical Specifications…………………………6 Use on iOS/Android Device by WiFi……………………….7 Insert a Micro-SD card…………………….……7 Download App……...…………………………..7 Connect to iOS/Android Device……………..8 Start preview...…………………………………..10 Take a photo………………………………..…11 Record video……………………………….……11 Playback…………………………………………12 Download files to Smart phone………………13 Delete files……………………………………..14 Settings…………………………………….…15 Install the microscope to Stand...…..………….…………16...
  • Page 3 Timer……………………………………………..24 Calibration and Measurement……………………….…...25 Calibration……………………………………..26 Measurement……………………………………29 Change Calibration…………………..………..30 Draw and text……………………………………33 Software Interface Instructions…………………………...34 Main Interface Icons…………………………..34 Main Menu……………………………………….35 Options…………………………………………..36 Capture………………………………….……….37 Measurement Interface Instruction……………38 Troubleshooting………...………………………………….39 Welcome Thank you for your choice of our product - it is a high-tech while easy to use 1080P Full HD WiFi Digital Microscope. With this unit you will see a unique and “bigger”...

  • Page 4: Precaution

    1. Precaution Before using the WiFi Digital Microscope, please ensure that you read and understand the safety precautions described below. Always ensure that the WiFi Digital Microscope is operated correctly. The Microscope is not waterproof, so keep it dry. Do not use it in a humid place like bathrooms. A dry environment will maintain its life to maximum.

  • Page 5: Preparation

    2. Preparation Standard accessories WiFi Microscope Stand AC adaptor USB cable User manual AC adaptor Calibration Ruler Cleaning Fabric...

  • Page 6: Parts Names & Functions

    Parts Names & Functions Part# Meaning Part# Meaning OFF/WiFi/USB Focus wheel Wheel Micro-SD slot (Fixing the movement) Reset Wheel (for up/down) Wheel LED Dimmer (fixing on the pole) Wheel (PC and Charge) (fixing on the stage) Charging Wheel indicator (fixing the microscope)

  • Page 7: System Requirements

    System Requirements 1. iOS/Android * iOS 5.1 and later * Android 4.3 and later 2. PC * Windows XP / VISTA / WIN7 / WIN8 / WIN10 * P4 1.8 or above * RAM: 512M * Video Memory: 64M * USB port: 2.0 * CD-ROM Drive Technical Specifications Image sensor...

  • Page 8: Use On Ios/Android Device By Wifi

    iOS (5.1 and later): WiFiCapture Search and download from App Store Android: MicroCapture, Install from CD, or search and Download from https://play.google.com/store PC interface USB2.0 PC Software PortableCaptureHD (with measurement) English, Deutsch, Spanish, Russian, Italian, French, PC Software Language Portuguese, Dutch, Polish, Japanese, Korean Software Windows XP/Vista/Win7/ Win8/Win10 Supported...

  • Page 9: Download App

    2) Download App iOS: Search and install MicroCapture from App Store. Android: Search MicroCapture from play.google.com/store, download and install it. Or install MicroCapture from the CD that comes with the package. 3) Connect the WiFi Microscope to iOS/Android device. (here we take iOS device as an example) (1) Power on the microscope by sliding the Part#1 to WIFI position;...
  • Page 10 The password to connect the device is 12345678. Please refer to Settings on how to change the password.

  • Page 11: Start Preview

    4) Start preview Start the installed App, live video will show as follows:...

  • Page 12: Take A Photo

    5) Take a photo Click and then a photo will be taken! 6) Record video Click and then the central icon will be , then click the red dot, video recording will start, click again to stop the recording.

  • Page 13: Playback

    7) Playback By default, the captured files are stored in the Micro-SD card in the microscope. You can preview them and download them to your Smart phone. Click to enter playback as follows.

  • Page 14: Download Files To Smart Phone

    8) Download files to Smart phone By clicking , you can download file to your Smart phone. You can choose if to download the original file or downsized (fast download). By sliding the dot to the cell phone icon, you can see files that are already downloaded and stored in your phone.

  • Page 15: Delete Files

    9) Delete files Click from the bottom bar, tick the files to be deleted, and then click . Finally confirm the delete.

  • Page 16: Settings

    10) Settings Click , you can enter into setup screen as follows. Date/Time: turn on/off the date stamp Cyclic record: turn on/off the cyclic recording. Video record size: change the video size among 1080P, 720P and VGA Video EV: adjust the EV Capture size: change the photo size among3M/5M/8M/12M.

  • Page 17: Install The Microscope To Stand

    4. Install the Microscope to the Stand 1) Take the microscope out from gift box gently; put the carriage stage on a flat surface. 2) Follow the below steps: metal pole through Wheel 12! metal pole into female part of the stage!
  • Page 18 Rotate Wheel 12 to fix the pole on the stage! microscope into the ring of the stand!
  • Page 19 Rotate Wheel 13 clockwise to fix the microscope on the ring. (1) Adjust the upper part of the stand to get a proper height. (2) Rotate Wheel 9 clockwise to fix the upper part.

  • Page 20: How To Get Focus

    5 How to get focus Rotate Wheel 10 to get a rough focus! Rotate Wheel 8 to get a fine focus! Rotate Wheel 9 to lock or release the movement!

  • Page 21: Use The Microscope On Pc

    6. Use the Microscope on PC When connecting to PC, there are two statutes. 1) With Micro-SD card inserted, it is mass storage. You can visit files stored on the Micro-SD card. 2) Without Micro-SD card inserted, it is PC Camera status.

  • Page 22: Install Software On Pc

    7. Install the Software on PC (Windows) Insert the driver CD into CD-ROM Drive and this will automatically display the following interface: 1) Install MicroCaptureHD Click Install MicroeCaptureHD and the installation wizard will guide you through the whole process. 2) Full user’s manual can be viewed by clicking User’s Manual.

  • Page 23: Start Microscope

    8. Start Microscope Take out Micro-SD card, connect your Microscope to your PC USB port, start the software by clicking the icon generated on the desktop after installation and you will see the following screen pop up. When the Microscope is disconnected from your PC USB port, the following message will pop up.

  • Page 24: Software Functions

    9. Software Functions Capture Photo a. Click ‘Photo’ shortcut icon in the main menu bar. b. Click ‘Capture > Photo’. Capture Video a. Click ‘Video’ shortcut icon in the main menu bar. b. Click ‘Capture > Video’.

  • Page 25: Timer

    Timer (Photo / Video) Click ‘Timer’ shortcut icon in the main menu bar. * Under Timer photo, you can set the start time, interval time and total picture number. * Under Timer video, you can set the start time, interval time and total video number.

  • Page 26: Calibration And Measurement

    Calibration and Measurement Please make calibration before measurement. Calibration Display Crossing from ‘Options>Crossing’’. Microscope default at crossing “on” It’s used to check the dial on the calibration ruler.
  • Page 27 1. Focus microscope on the attached calibration ruler and then adjust the magnification till the picture is clear. Take a picture for the selected area when the dial is parallel to the crossing as below. 2. Double-click on the picture to enter into measurement interface as below.
  • Page 28 3. Click Calibration icon , and then move mouse to the picture. Click on the beginning and ending points across a known value. Now a dialog will popup as below and you need to enter the exact value of the measurement sample into ‘Actual dimension’.
  • Page 29 4. Now you can use ‘Any angle Line’ under Measurement icon to measure the value again. If the value you measure by software is nearly the same as the exact value of the dial means the calibration finish.

  • Page 30: Measurement

    Measurement Double-click on the picture to enter into measurement interface. Under the ‘Measurement’ icon , you can choose any desired options to measure. 1. Any Angle Line Measurement Simply click from one point and drag to the next point, and then release the click.

  • Page 31: Change Calibration

    Change Calibration If you need to change the magnification rate and adjust focus to capture picture, please calibrate the magnification rate again. 1. Double click to open the picture, Click ‘ > Reset magnification > Reset picture magnification’ as below. And then start calibration again (Calibration details please refer to page37).
  • Page 32 2. Change the magnification rate and capture several pictures, click on the picture to enter into measurement interface. And click ‘ > Set magnification > Set picture magnification’, now a dialog will show up as below; enter the magnification rate into the dialog and click ‘OK’.
  • Page 33 3. If you want to use the same magnification rate to capture pictures, just click ‘ > Set magnification >Set capture magnification’. Now all pictures will use the same magnification rate and you can start measurement directly.

  • Page 34: Draw And Text

    Draw and Text You can draw or add a text on the picture and save for later analysis. 1. Click icon to choose any kinds of drawing under the pull-down manual as below. 2. Click icon and set the font for the text in the popup dialogue as below.

  • Page 35: Software Interface Instructions

    10. Software Interface Instructions Main Interface Icons Capture photo – It’s used to capture photo one by one. Start / Stop record video. Timer for photo / video – Set the start time, interval time and total photo/video number. Full screen mode, Press ESC or double-click to exit.

  • Page 36: Main Menu

    Main Menu File Photos Directory: set the directory to store photos taken; Videos Directory: set the directory to store video taken;...

  • Page 37: Options

    Options Resolution: change preview size Date/Time: set to display system date/time on preview window Language: choose different OSD language Crossing: display cross on preview window Full-screen mode: enter into full screen. Click ESC or double click to exit...

  • Page 38: Capture

    Capture Photo: take a photo Video: record a video clip...

  • Page 39: Measurement Interface Instruction

    Measurement Interface Instructions Save as Redo Copy to Draw clipboard Copy file Text note Previous Measurement Next Calibration Undo...

  • Page 40: Troubleshooting

    11. Troubleshooting Problem Solution After switched to WIFI 1). Rotate the LED dimmer to position, the LED does check if it is on. not light. 2). Charge the battery. When the microscope is on, The microscope is use a pin to press the Reset halted.
  • Page 41 position. And then the password will be restored to 12345678. This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.
  • Page 42 FCC INFORMATION Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
