BF9500 车载台使用说明书
■

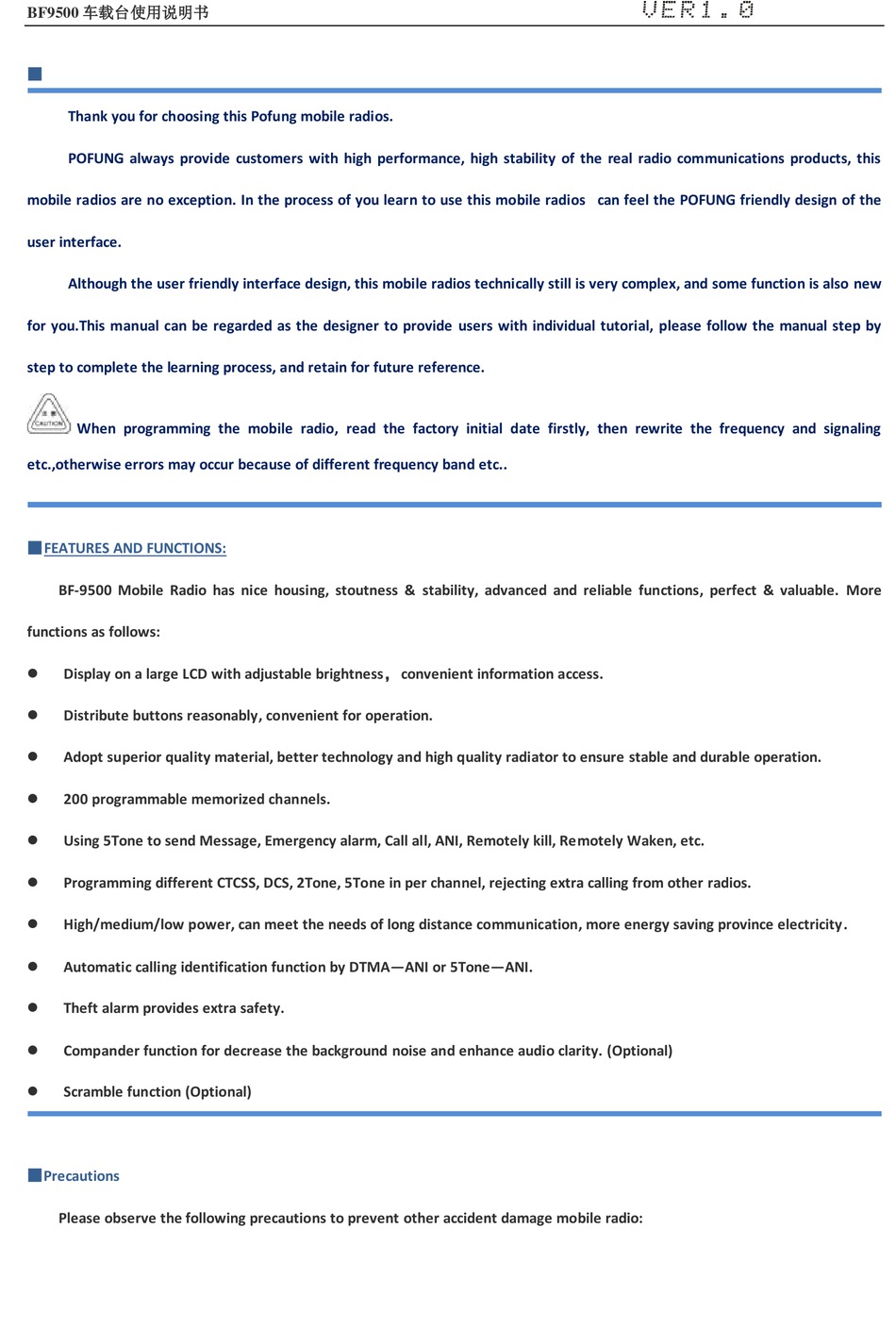

Thank you for choosing this Pofung mobile radios.
POFUNG always provide customers with high performance, high stability of the real radio communications products, this
mobile radios are no exception. In the process of you learn to use this mobile radios can feel the POFUNG friendly design of the
user interface.
Although the user friendly interface design, this mobile radios technically still is very complex, and some function is also new
for you.This manual can be regarded as the designer to provide users with individual tutorial, please follow the manual step by
step to complete the learning process, and retain for future reference.
When programming the mobile radio, read the factory initial date firstly, then rewrite the frequency and signaling
etc.,otherwise errors may occur because of different frequency band etc..

■FEATURES AND FUNCTIONS:

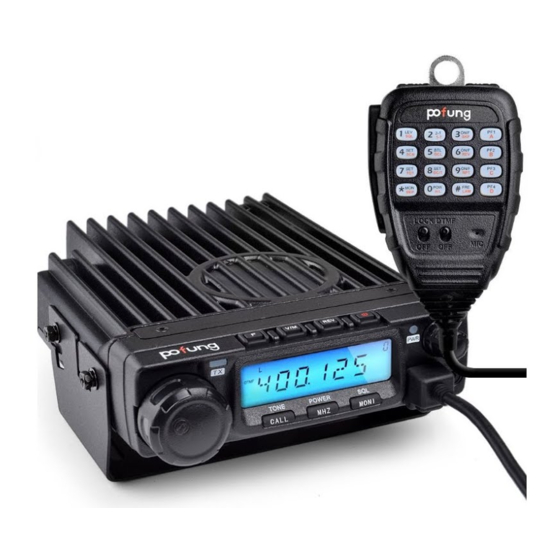

BF-9500 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. More
functions as follows:
Display on a large LCD with adjustable brightness，convenient information access.
Distribute buttons reasonably, convenient for operation.
Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation.
200 programmable memorized channels.
Using 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.
Programming different CTCSS, DCS, 2Tone, 5Tone in per channel, rejecting extra calling from other radios.
High/medium/low power, can meet the needs of long distance communication, more energy saving province electricity.
Automatic calling identification function by DTMA—ANI or 5Tone—ANI.
Theft alarm provides extra safety.
Compander function for decrease the background noise and enhance audio clarity. (Optional)
Scramble function (Optional)

■Precautions

Please observe the following precautions to prevent other accident damage mobile radio:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF9500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POFUNG BF9500

  • Page 1 POFUNG always provide customers with high performance, high stability of the real radio communications products, this mobile radios are no exception. In the process of you learn to use this mobile radios can feel the POFUNG friendly design of the user interface.
  • Page 2  Do not place the transceiver in excessively dusty, humid or wet areas, nor unstable surfaces.  If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact an POFUNG service station or your dealer.
  • Page 3 BF9500 车载台使用说明书 ■Mobile installation To install the transceiver, select a safe, convenient location inside your vehicle that minimizes danger to your passengers and yourself while the vehicle is in motion. Consider installing the unit at an appropriate position so that knees or legs will not strike it during sudden braking of your vehicle.
  • Page 4 BF9500 车载台使用说明书 Route the DC power cable supplied with the transceiver directly to the vehicle's battery terminals using the shortest path from the transceiver. · We recommend you do not use the cigarette lighter socket as some cigarette lighter sockets introduce an unacceptable voltage drop.
  • Page 5 If the fuse blows, determine the cause, then correct the problem. After the problem is resolved, replace the fuse. If newly installed fuses continue to blow, disconnect the power cable and contact your authorized POFUNG dealer or an authorized POFUNG service center for assistance.
  • Page 6 BF9500 车载台使用说明书 Transceiver Supplied Accessory DC power cable ◆If you use the transceiver for a long period when the vehicle battery is not fully charged, or when the engine is OFF, the battery may become discharged, and will not have sufficient reserves to start the vehicle. Avoid using the transceiver in these conditions.
  • Page 7 BF9500 车载台使用说明书 The speaker can not connect with the ground, otherwise the speaker will be fault. 2. DTMF Microphone For voice communications, connect a microphone equipped with an 8-pin modular plug into the modular socket on the front of the main unit. Press firmly on the plug until the locking tab clicks. Attach the supplied microphone hanger in an appropriate location using the screws included in the screw set.
  • Page 8 BF9500 车载台使用说明书 ﹒Basic Functions FUNCTION Main Dial Change frequency, memory channel and scan direction etc Display the menu, sfrequency, channel information etc.. TONE and CALL Function keys Switches between 2TONE,5TONE and DTMF. POWER and MHz Function keys High/medium/low power switch；frequency regulation(MHz)
  • Page 9 BF9500 车载台使用说明书 Signal is being received or monitor Signal strength of receiving and transmitting. Keypad lock Current channel number has been stored Channel scan skip this channel Indicates the channel number in channel mode...
  • Page 10 BF9500 车载台使用说明书 3. Rear Panel 后面板 Port FUNCTION Connection for 50Ωcoaxial cable and antenna. Antenna Connector Ext.Speaker Terminal Terminal for optional external speaker SP01 Adjustable measuring port Production of set parameters when special port DTMF 手咪 4. DTMF Microphone Basic Functions...
  • Page 11 BF9500 车载台使用说明书 Set noise level POWER High/medium/low power switch SCAN frequency、channel、CTCSS/DCS Scan Priority Channel switch BATT Battery voltage detection RADIO FM Radio switch DTMF DTMF edit Storage of channel parameters TONE Optional signaling switch LOCK key lock(Except the PTT Key) 3）FM Radio mode：...
  • Page 12 BF9500 车载台使用说明书 1）Frequency+Channel mode：When set display as"FR",it enters into Frequency+Channel mode, new setting of channel operation and shortcut operation can be temporarily used by user. Once the radio is turned off or switched to another channel, the temporary setting will be erased and back to initial settings.
  • Page 13 BF9500 车载台使用说明书 When the channel you are operating is called, the screen shows BUSY, in this way, you can hear the calling from transmitting party. If the transceiver has set at higher squelch level, it may fail to hear the calling.
  • Page 14 BF9500 车载台使用说明书 ① In VFO mode, press the key, the frequency of the screen display area MHZ digital flicker. ② Turning the knob to select the required value MHz. Main knob clockwise control increases MHZ, rotate counterclockwise to reduce MHZ. Rise and fall MHZ or use hand microphones F key values.
  • Page 15 BF9500 车载台使用说明书 12. Transmitting OPTIONAL SIGNALING 发射可选信令 Press and hold the Microphone [PTT] key, then press key to transmit pre-stored and selected DTMF/2Tone/5Tone optional signaling. 13.Transmitting DTMF 发射 DTMF Slide DTMF key to DTMF position, press and hold the [PTT] key, transmitting the desired DTMF signaling by the numeric key directly.
  • Page 16 BF9500 车载台使用说明书 ①In VFO mode,long press to enterinto frequency scan； ② Turn selector knob or press Microphone key to change scan direction； ③ Press any key except key to exit. 2）Channel Scan 信道扫描 ① ； In channel mode,Press key to enter into channel scan ②...
  • Page 17 BF9500 车载台使用说明书 channel,the temporary setting will be erased. 差频方向及差频频率设置 5. Offset Direction and offset frequency setup Repeater receives a signal(UP-LINK) on one frequency and retransmits on another frequency(DOWN-LINK). The difference between these two frequencies is called the offset frequency. If the UP-LINK frequency higher than DOWN-LINK frequency, the direction is positive, If it is lower, the shift direction is negative.
  • Page 18 BF9500 车载台使用说明书 1）Display the DTMF: sending DTMF code, sending categories for menu "5" category, specific content can be found in the menu "21"; 2）Display the"2TON" : sending 2TON code, sending categories for menu "3" category； 3）Display the "5TON" :sending 5TONE code,sending categories for menu"4" category；...
  • Page 19 BF9500 车载台使用说明书 1） According to the menu operation flow into the content editor interface(Menu No.10 and Menu No.21)； 2） Scintillation screen "_", rotate the knob switch or Mic's key, and select the desired content, short press confirm to save the current character and into the next character editing, short press...
  • Page 20 BF9500 车载台使用说明书 DTMF.MR CH？0～9 DTMF sending content editor 50、100、200、300、500 毫秒 SPD. DTMF Transmitting Time SCAN. Scan mode TO、CO、SE LAMP. Backlight luminance 1～8 CL-RX 1～3 CL-TX 1～3 COLOR Backlight Color CL-ST 1～3 See the microphone CALL programmable key definitions See the microphone...
  • Page 21 BF9500 车载台使用说明书 2.喇叭打开模式 1）In standby mode, press and hold key to enter general setting menu； 2）Adjust the knob switch or Mic's key, and select 02 menu option, the screen display · If open the CTCSS/DCS and DTMF / 2 TON / 5 TON, options are "SQ, CTC, TON, C * T, C/T"；...
  • Page 22 BF9500 车载台使用说明书 corresponding name for 2TONE,this operation will display 2TONE corresponding name. 4. 5TONE Signaling Group 5TONE 信令编码组别 1）In standby mode, press and hold key to enter general setting menu； 2）Adjust the knob switch or Mic's key, and select 04 menu option, the screen display 3）Short press the...
  • Page 23 BF9500 车载台使用说明书 Setup process short press , then cancel save , and switch to the on a menu or next a menu； 7. Press to other keys , cancel the save and return to main interface. 7. Launch 发射允许 1) In standby mode, press and hold key to enter general setting menu；...
  • Page 24 BF9500 车载台使用说明书 4）Adjust the knob switch or Mic's key choose to ON； 5）Short press the key, save and exit the Settings； 6）Setup process short press , then cancel save , and switch to the on a menu or next a menu；...
  • Page 25 BF9500 车载台使用说明书 ； 2）Adjust the knob switch or Mic's key, and select 12 menu option, the screen display 3）Short press the key, enter the function menu, the screen flashing "OFF", Options are "OFF/ON"； Set the scan skip display “★” 4）Adjust the knob switch or Mic's key choose to ON；...
  • Page 26 BF9500 车载台使用说明书 ； 2）Adjust the knob switch or Mic's key, and select 15 menu option, the screen display 3）Short press the key, enter the function menu, the screen flashing "MN", Options are "MN/FRQ"；； In frequency mode cannot be set, MN: name of the channel, FRQ: channel frequency 4）Adjust the knob switch or Mic's...
  • Page 27 BF9500 车载台使用说明书 TOT (Time-out timer) 发射限时 TOT 1）In standby mode, press and hold key to enter general setting menu； ； 2）Adjust the knob switch or Mic's key, and select 19 menu option, the screen display 3）Short press the key, enter the function menu, the screen flashing "3", Options are "OFF/1-30 Minute"；...
  • Page 28 BF9500 车载台使用说明书 cofirm but not save and go on edit the next word. Press to edit the left word. Short press to delete the cursor and the words on the right side. Caution: When the cursor is on the left, short press the radio do not save automatically return to the previous menu.
  • Page 29 BF9500 车载台使用说明书 24. LCD Backlight 背光灯亮度 1）Press and hold key to enter general setting menu； ； 2）Adjust the knob switch or Mic's key, and select 24 menu option, the screen display ，the screen flashing “32” 3）Press Adjust the knob switch or Mic's key to select a desired LCD backlight brightness 1-32.
  • Page 30 BF9500 车载台使用说明书 1）Press and hold key to enter general setting menu； ； 2）Adjust the knob switch or Mic's key, and select 27 menu option, the screen display ，the screen flashing 3) Press “V/M”， Options see "PF1, PF2, PF3, PF4 function selection list", Default: “V/M”；...
  • Page 31 BF9500 车载台使用说明书 ； 2）Adjust the knob switch or Mic's key, and select 30 menu option, the screen display ，the screen flashing 3) Press “1750”， Options see "1000,1450, 1750,2100Hz”, Default:”1750Hz”； Adjust the knob switch or Mic's key to select 5）Press to confirm the selection and exit；...
  • Page 32 BF9500 车载台使用说明书 Data will be cleared after reset, restore factory Settings, prudent use this feature. Assistant Function 辅助功能 1. Cable Clone 有线克隆功能 This feature will copy the programmed data and parameters in the master unit to slave units. It copies the parameters and memory program settings.
  • Page 33 BF9500 车载台使用说明书 ■Reset 2 完全复位方法 2 ，to enter general setting menu； 1）In standby mode, long press 2）Adjust the knob switch or Mic's key, and select 32menu option, the screen display ， 3）Press the screen flashing “VFO”； ，press 4）Press to confirm， the screen shows again to confirm the reset and restart the radio，...
  • Page 34 BF9500 车载台使用说明书 · Type and serial number of the equipment · You have encountered the difficulty or problem · Meter reading · Other relevant information（Menu Set, mode, frequency, etc） Do not use broken paper to wrap the mobile radio! Improper handling or transportation, improper may lead to damage of mobile radio.
  • Page 35 BF9500 车载台使用说明书...
  • Page 36 5.Trouble Shooting 故障排除 Problem 问题 Possible Causes Potential Solutions 1. Power cable contact error. 1. Connect the power cable correctly:Red(+);Black(-) Power is on, nothing appears on 2. Power cable of a root or more fuse 2 . Check and solve problem resulting in blown Display.
  • Page 37 ■ Specifications 主要技术指标 Receiver 接收部分（用 ETSIEN 300 086 标准测试） Wide band 宽带 Narrow band 窄带 Sensitivity 灵 敏 度 （ 12dB ≤0.25uV ≤0.35uV SINAD） Adjacent Channel Selectivity ≥70 dB ≥60 dB 邻信道选择性 Intermodulation 互调 ≥65dB ≥60dB Spurious Rejection 假信号响 ≥70 dB ≥70 dB 应...
  • Page 38 Squelch 静噪方式 Carrier/CTCSS/DCS/5TONE/2TONE/DTMF Frequency Stability 频率 ±2.5ppm 稳定度 Operating Temperature －20~＋60℃ 工作温度 Dimensions(W*H*D) 尺 145(W)*47(H)*190(D)mm 寸 Weight 重量 About 1.2Kg Specifications are subject to change without notice due to advancements in technology. Disclaimer 免责声明(放在说明书封底)  This manual has been carefully collated to reach high accuracy. If any error occurs during translation or printing, our company is not responsible for it.
