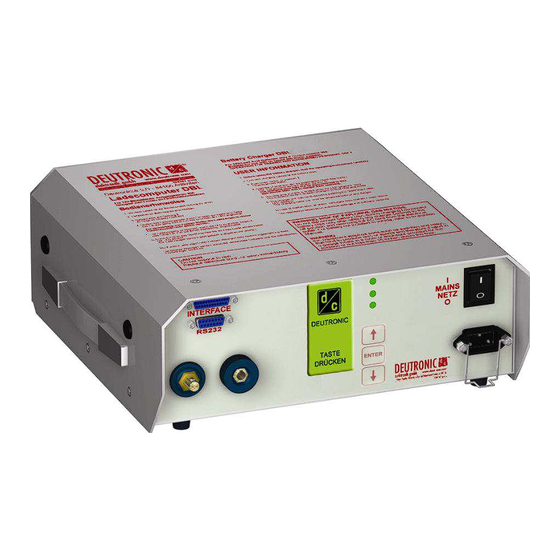

EDWANZ group Deutronic DBL-MPC4 Series Manual

Battery charger / external power supply with mpc4-board and nominal 14vdc charging voltage
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

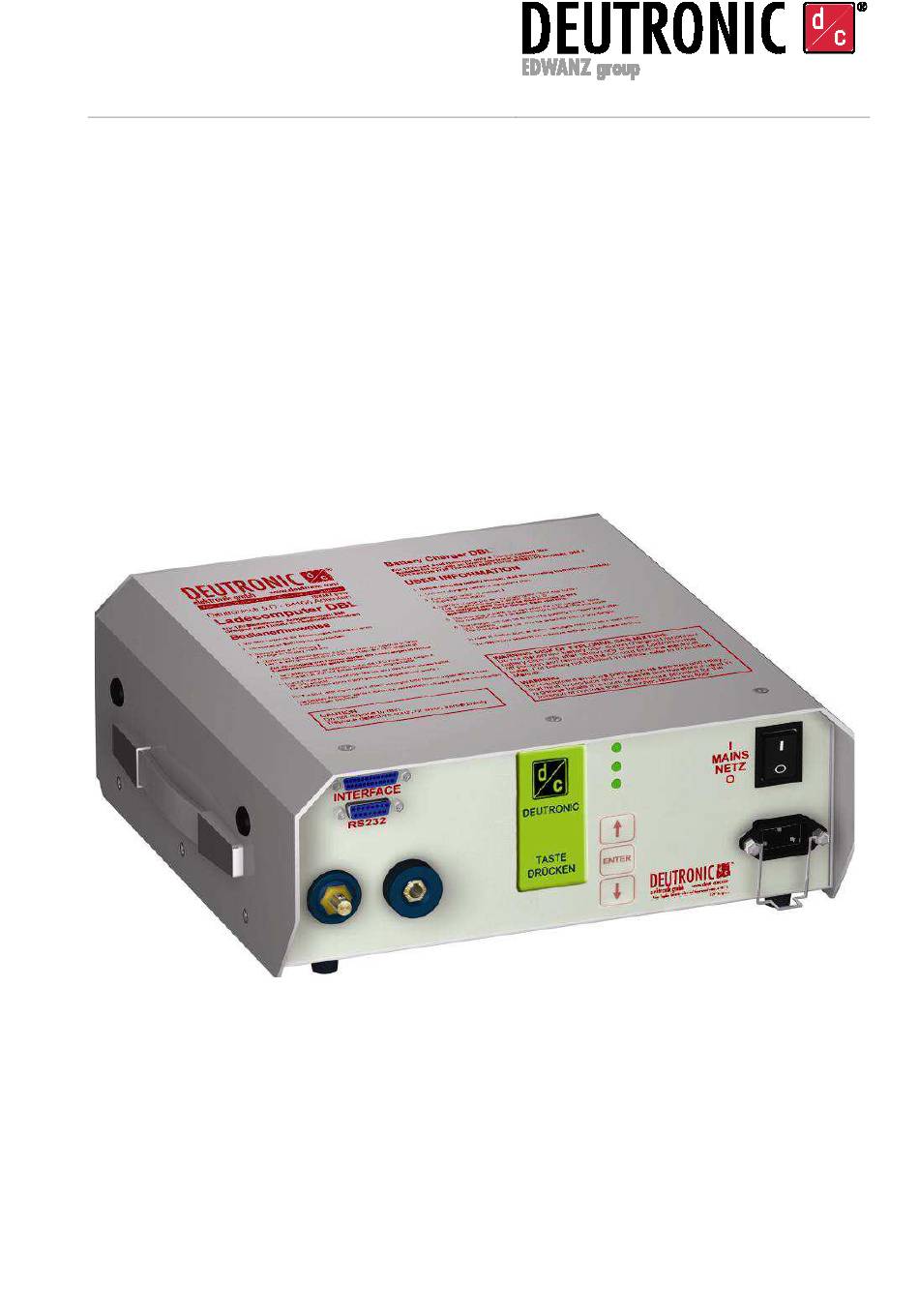

Deutronicstr. 5, D - 84166 Adlkofen, Germany
Tel.:
+49 (0) 8707 920-0
Fax:
+49 (0) 8707 1004
E-mail: sales@deutronic.com
http://www.deutronic.com
Deutronic Battery Charger / External Power Supply
with MPC4-Board and nominal 14VDC Charging Voltage
(suitable for 12VDC Vehicle On-board Networks and Batteries)
Important note:
Do not use the charger in applications for which the device was not
originally designed! Only qualified personnel are allowed to use this
charger. Read operation instructions carefully! In any case pay
attention to the safety instructions and follow the guidelines of the
battery manufacturer!
DBL Operating Instructions / MPC4
Manual
- Valid from firmware v1.41.251 -
Last updated: 03.12.2020
Page 1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Deutronic DBL-MPC4 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for EDWANZ group Deutronic DBL-MPC4 Series

  • Page 1 Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com Manual - Valid from firmware v1.41.251 - Deutronic Battery Charger / External Power Supply with MPC4-Board and nominal 14VDC Charging Voltage (suitable for 12VDC Vehicle On-board Networks and Batteries) Important note: Do not use the charger in applications for which the device was not...

  • Page 2: Table Of Contents

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com Content Installation and Safety Instructions ..............3 Device Information ....................3 2.1. Device description ....................3 2.2. Technical Data ....................... 3 2.3.

  • Page 3: Installation And Safety Instructions

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com Installation and Safety Instructions In addition to the operating instructions, always also comply with the specifications of the battery manufacturer, the associated installation and safety instructions and the device-specific data sheets. The installation and safety instructions, as well as the data sheets, can be found on our website www.deutronic.com .

  • Page 4: Warning Signs On The Dbl Housing

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 2.3.2. Warning signs on the DBL housing Please read the instructions carefully Warning of hot surfaces 2.3.3. Waste disposal of packaging material Please keep the packaging material for a possible refuse.

  • Page 5: Connections And Control Elements

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 3. Connections and Control Elements Mains power switch ON/OFF Connection for power cord with mains connector (AC IN) "+" Plug for POSITIVE charger cable (red clamp) "-"...

  • Page 6: Commissioning

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 4. Commissioning Before taking the charging computer into operation check the charger and the equipment like the mains supply cord charging cable / clamps or optional accessories (e.g.
  • Page 7 Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com After showing the version information or after language selection the display changes automatically to the main screen (see chapter 5.3 Main Screen). The desired line can be selected with the Up / Down buttons in the main screen.

  • Page 8: Instructions

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 5. Instructions 5.1. Overview of the menu structure Main Screen Information display START / STOP MENU - Measurement (voltage U[V] NOTE: Depending on possible customized (delivery) specifications a pin code request can be faded in.

  • Page 9: General Notes On Operation

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 5.2. General notes on operation Should a parameter be changed by the user, it can be selected with the UP / DOWN buttons at the device and activated for editing by means of the ENTER button.

  • Page 10: Pin Lock

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 5.4. Pin lock The pin lock is activated when you can see the following display (see Picture 3) after choosing access to the menu. The lock can only be deactivated with entering a predefined code successfully.

  • Page 11: Selection Of Operation Mode

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 5.5.1. Selection of operation mode After selecting the operation mode with ENTER field the available modes can be selected with the arrow buttons and accepted with pressing the ENTER button: Operation mode Description AUTOMODE The charger identifies automatically if a battery or a resistive load is...

  • Page 12: Supply Menu (Parameters For The Supplymode)

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 5.5.3. Supply Menu (parameters for the SUPPLYMODE) Picture 5 – supply menu Parameter Description Figures / range of adjustment U in [V] Output voltage [2 ...

  • Page 13: Charge Menu (Parameters For The Chargemode)

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 5.5.4. Charge Menu (parameters for the CHARGEMODE) Picture 6 – charge menu Parameter Description Figures / range of adjustment U in [V] Charging voltage [2 ...
  • Page 14 Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com in [Ah] Maximum battery [0 … 6000] Ah; Limiting value from which on the charge capacity charging process will be stopped with an application error.

  • Page 15: Charge Menu / Features

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 5.5.5. Charge Menu / Features Picture 7 – features in charge menu Parameter Description Figures / range of adjustment BFL (ON/OFF) Signal ‚Battery full‘...

  • Page 16: Device Menu

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 5.5.6. Device Menu Picture 8 – device menu Parameter Options Figures / range of adjustment STORAGE No temporary saving of the charging process state. CYCLIC Every 5 minutes relevant operating parameters such as operating modus or timer values are saved and...
  • Page 17 Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com SAFETY [15.5 / 17 ] V; Important: Follow instructions out [3]! 15.5V: OVP limit 15.5V is active (maximum 17.0V OVP limit 15.5V is deactivated output voltage Note: Max.
  • Page 18 Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com [1] CYCLIC STORAGE - NOTE: If during a charge process the voltage supply of the charger is interrupted, then the battery charging is continued automatically at setting STORAGE CYCLIC as soon as the mains supply is back again (all meter readings, e.g.
  • Page 19 Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com [5] SECURITY LIMITING - OVERLOAD OR SHORT CIRCUIT BEHAVIOUR If the voltage at the measuring point on the device output drops below U output current will be limited and the output relay will open.

  • Page 20: Operation Mode / Status / Error Messages

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 6. Operation Mode / Status / Error Messages Display Meaning / Reasons Correction Ah LIMIT Charging process stopped - Maybe the battery capacity was after the predefined limiting adjusted to low in the setup? value (ampere hours [Ah])
  • Page 21 Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 1. Check connected consumers for EXT.VOLT. Overvoltage on the output (in errors (wrong battery or external SUPPLY / CHARGEMODE): voltage source). The device measures a 2.

  • Page 22: Short Cell Detection - Instructions For Application

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com SHORTED Short circuit (!) detected at - Check load and cables for any the output. damages - To continue supply process after error is removed, release clamps and connect the load again STANDBY...

  • Page 23: Signalling / Led And Signal Lamp

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 8. Signalling / LED and Signal Lamp With the following chart you can visualize the DBL operating state by choosing between the signal variants ”0..9”: Indication SIGNAL '0'...

  • Page 24: Characteristic Curves

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 9. Characteristic Curves Charging characteristic I-Uo-U: Charging characteristic - Remote-ON/OFF, trickle and recharge: DBL Operating Instructions / MPC4 Last updated: 03.12.2020 Page 24 of 26...

  • Page 25: Maintenance Instruction

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 10. Maintenance Instruction The charger works reliably for years with low maintenance. Please note the following points to keep the device in the optimal condition: - Please pay attention to the safety instructions.

  • Page 26: Exclusion Of Liability

    Deutronicstr. 5, D - 84166 Adlkofen, Germany Tel.: +49 (0) 8707 920-0 Fax: +49 (0) 8707 1004 E-mail: sales@deutronic.com http://www.deutronic.com 12. Exclusion of liability The customer is responsible for the use of the device according to the specifications. Regardless of the type, Deutronic is not liable for damage incurred through the use of the device.
