Helmet Bluetooth Interphone
User Manual
Applicable for:
Motorcycle riders, skiing enthusiasts, construction and mining workers, fire control personnel,
traffic police, etc..
Main Features and Specifications:
The Bluetooth system that allows the max. call distance between two riders up to 1,200m and
actually realizes the fully duplex wireless communication among four riders.
Working speed above 120km/h;
Automatic and safe receiving of mobile phone calls;
Master control Bluetooth CSR BC5 scheme available;
Advanced A2DP & EDR Bluetooth function available;
Strong stereo music/audio available (mobile phone/MP3/GPS with A2DP for transmission);
DSP noise reduction function
Inbuilt polymer lithium battery with capacity up to 500mA;
Standby 240h;
Continuous call or music playing above 8h;
Charging time around 3h;
National Level 5 waterproof standard;
FM radio available.
Advertisement
Table of Contents
Summary of Contents for BANGGOOD 262119

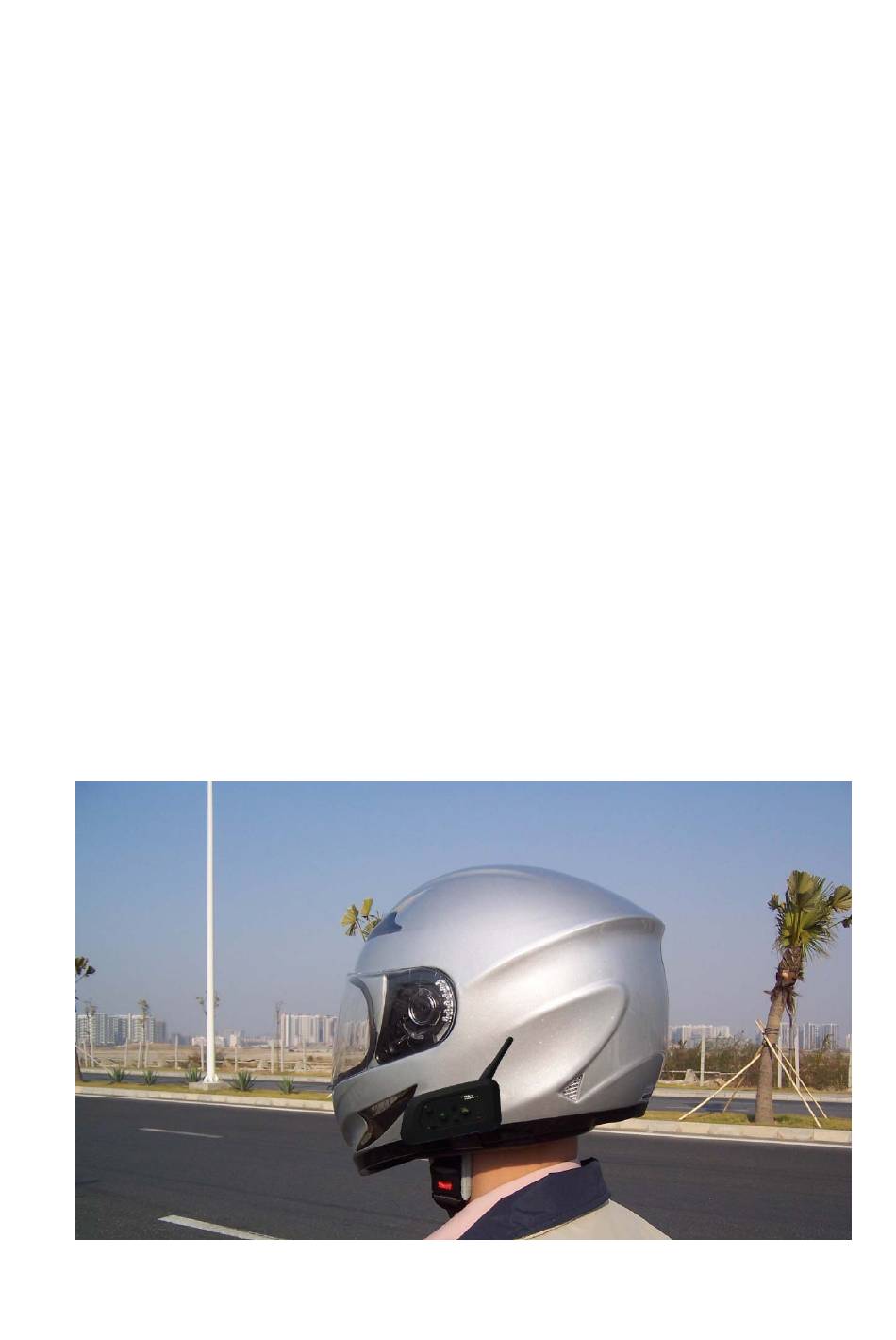

- Page 1 Helmet Bluetooth Interphone User Manual Applicable for: Motorcycle riders, skiing enthusiasts, construction and mining workers, fire control personnel, traffic police, etc.. Main Features and Specifications: The Bluetooth system that allows the max. call distance between two riders up to 1,200m and actually realizes the fully duplex wireless communication among four riders.
- Page 2 I. Table of Contents 1. Table of Contents …………………………………….P2 2. About the Product…………………………………….P2-3 3. Related Fittings………………………………………P4-6 4. Fitting Installation Means……………………………P6-14 5. Main Unit Operation Flow II. About the Product The model of this product is V4 and it is one multifunctional Bluetooth device specially designed for the motorcycle and skiing enthusiasts.
- Page 3 Microphone and speaker audio plug-in component USB A/C charger (AC110V-220V / DC output 5V) User Manual 1. Main Unit: FM radio on/off Volume- Rider B Power on/play Turn off Rider A Volume+ 2. Clamp Connected and Installed with Main Unit 3.
- Page 4 4. USB AC Charger Before use, connect the head unit to a charger to charge it fully. 1. Insert the USB plug of the charging cable into the charger and the other small plug into the headset. 2. In charging, the red lamp of the headset will be on; after charging is over, it will be off. IV.
- Page 5 2. Install the main unit onto the helmet. 3. Installation of Headset Accessories: Remove the protective pad with Velcro, place the Velcro in a proper place, install the two speakers of the helmet properly with the short one for left ear and the long one for the right ear. Short speaker for the left ear Long speaker for the right ear Adjust the location of the microphone properly...
- Page 6 V. Main Unit Operation Steps: 1. For the first use, make sure V4 can pair your Bluetooth mobile phone. 1) Activate the Bluetooth device on your mobile phone. 2) Press the power-on key on the headset until the red and blue LEDs flash alternately, making the main unit in “pairing mode”.
- Page 7 within certain scope. Steps: 1) Press the power key shortly, then the red LED will flash; about 2s later, the red LED will be off and the blue LED will flash once every 2s, indicating that the main unit has been activated. 2) Hold the A key about 3s, then the red and blue LEDs will flash alternately, indicating having entered the pairing state;...
