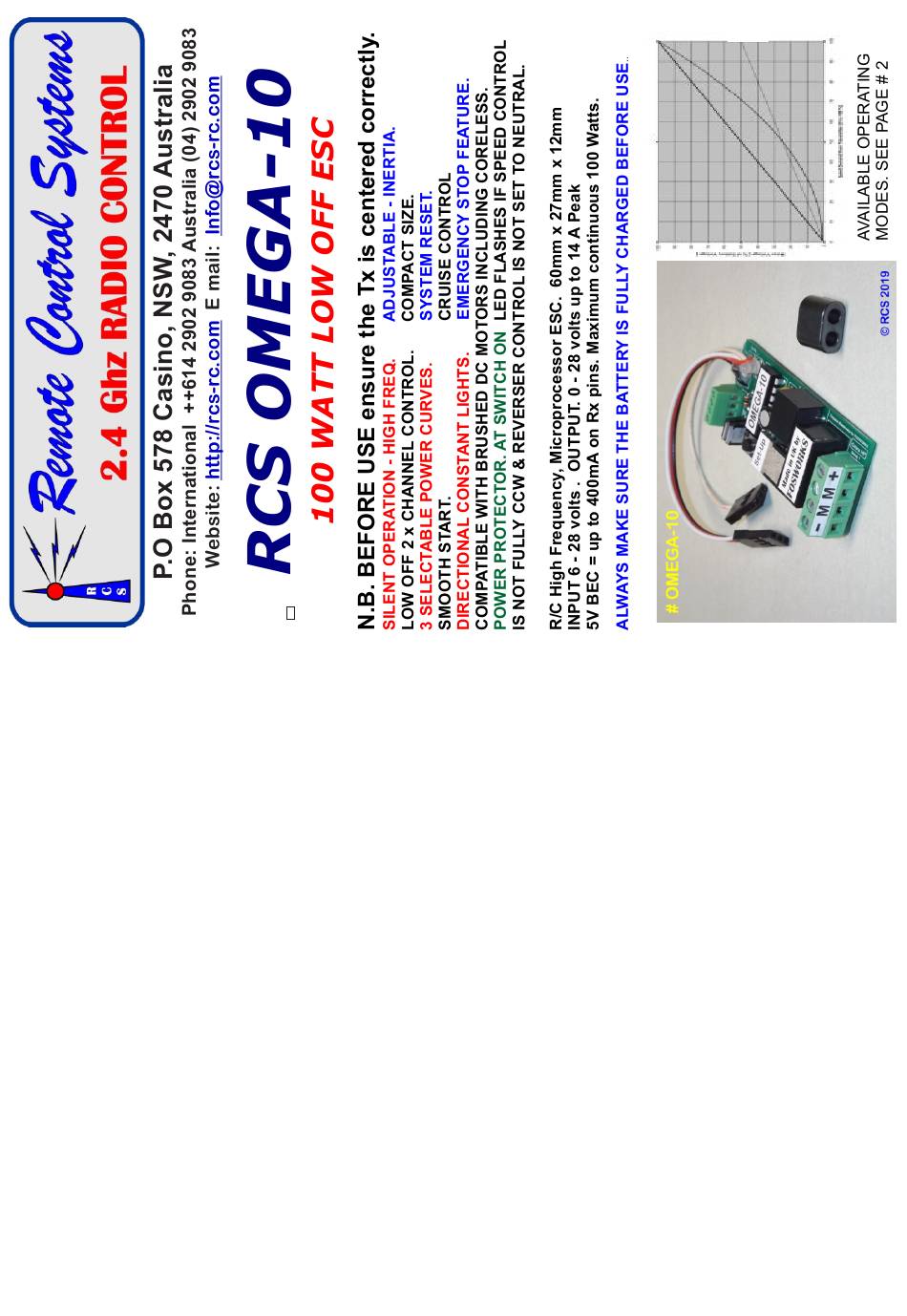

Remote Control Systems OMEGA-10 Manual

„

FEATURES

·
20 kHz PWM output, suitable for all permanent magnet d.c. motors, including coreless.
·
No audible motor whine. Silent operation.
·
Two RC Channel Inputs - Speed and Direction/Inertia Period. Standard 1.0 to 2.0 ms Servo pulse inputs.
·
Motor output from zero to 100 % of supply voltage.
·
User calibration for Reverser Stop setting, and zero and maximum Speed settings.
·
Three user selectable Operating Modes - Standard, Shunt Control [1] and Shunt Control [2].
·
User controlled inertia setting from 1 to 50 seconds for zero to full motor voltage, and vice versa.
·
Emergency Stop feature to over-ride inertia setting. Provision for factory reset to default settings.
·
Single LED for user indications.
·
Single push button switch for user interaction.
·

FACTORY DEFAULT SETTINGS:

Reverser Stop Setting = 1.50 ms. i.e. Centre idle.
·
Zero Speed Input PWM = 1.00 ms
·
Maximum Speed Input PWM = 1.95 ms in both Forwards & Reverse.
·
Reverser Relay is de-energised for Forward.
·
Operating Mode = Standard - Linear 0 to 100% Output for full input range.
·

LED

In normal operation, the LED flashes in groups of
·
1, 2 or 3 flashes when the actual output = Stop, to indicate current operating mode.
1 Flash = Standard Linear 0 to 100% PWM Output
·
2 Flashes = Shunt Control [1] Non Linear 0 to 100% PWM Output
·
3 Flashes = Shunt Control [2] Linear 0 to 50 % PWM Output
·
Also, the LED will go fully on when the motor output voltage reaches 100% PWM.
·
On Start up, the LED flashes rapidly for 2.5 seconds, before entering normal operation. If, during this time,
·
the SET-UP push button switch is pressed, the unit will enter Calibration Mode to permit:
Reverser Stop transmitter setting calibration.
·
Zero and Full Speed transmitter setting calibrations.
·
Reverser Relay direction to be selected [Energised or De-energised for Forward].
·
