Summary of Contents for Aeritech ISO

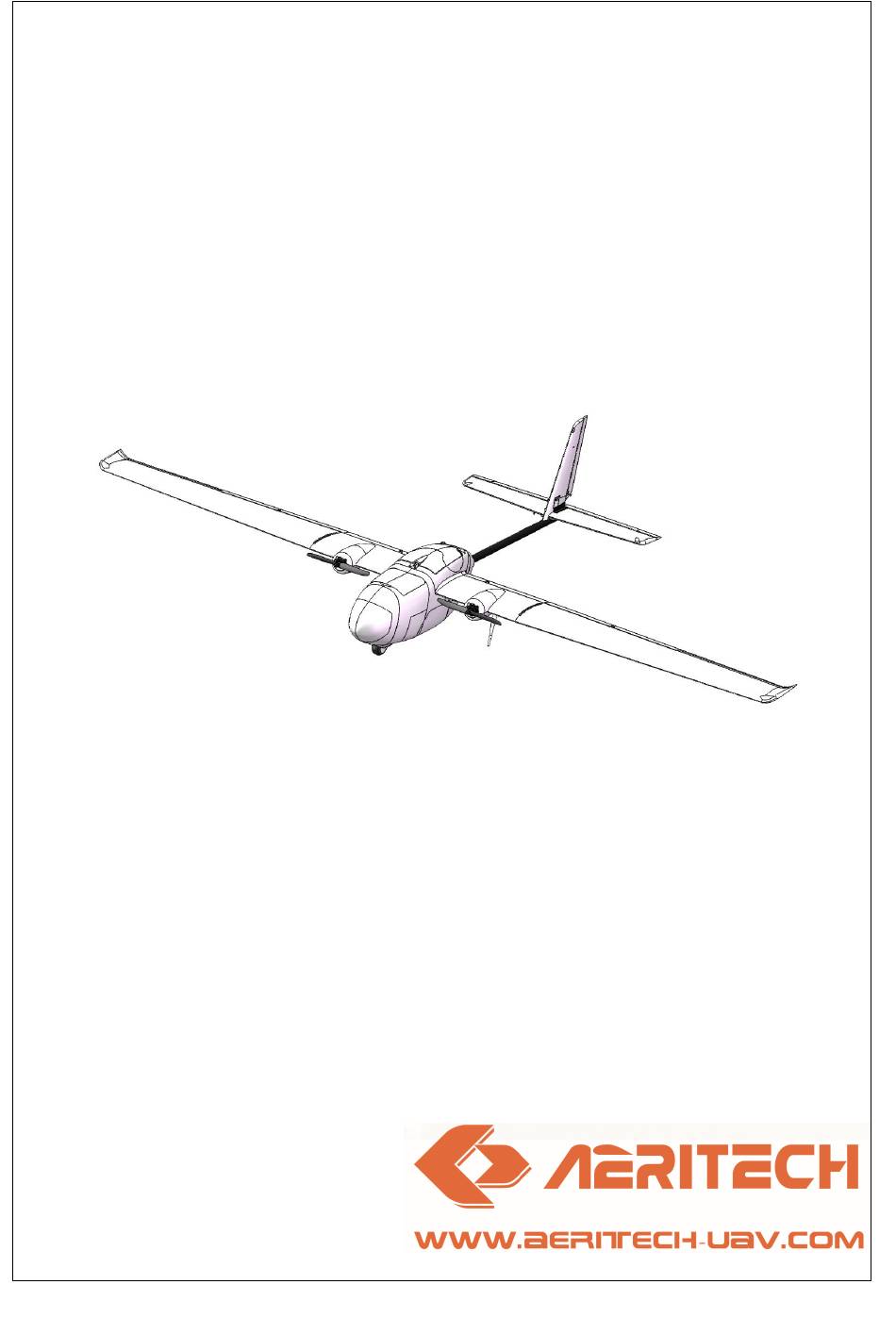

- Page 1 ISO—design for FPV ASSEMBLY AND OPERATION INSTRUCTIONS MANUAL...
- Page 2 Thank you for purchasing the new ISO plane from Aeritech. Read this manual carefully to achieve the best results with your ISO plane and first of all to control safely your model. If you experience any trouble during operation, take the instructions to help or ask your dealer or Aeritech Service Centre.
- Page 3 1.Before Assembling the Model Please check the contents of your package before you start working on it. You will find Fig. 1 + 2 and the Parts List helpful here Item Material Stickers Connecting rod(11mm)used for connect the Mid wing and aileron wing Middle stick Connecting rod(5mm) used for connect the Mid wing and aileron wing Connecting rod(25mm)used for connect the empennage and fuselage...
-
Page 4: Assembly Guide
2.Assembly guide 2-1)Assembly all the servo Assembly the servo for Aileron as below Assembly the servo for Horizontal and vertical as below Assembly the servo for parachute cabin... - Page 5 2-2)Assembly the motor Please install the motor as below To make sure the motor direction as below 2-3）Assembly the ESC Install the 2 pcs esc as below...
- Page 6 glue the Mid wing cover board. Notice: If you used for FPV flight, please put the extension wire of GPS and Tx first before Glue it. 2-4)Assembly the vertical fin, horizontal and connecting rod Assembly the vertical fin---glued the fixedblock and vertical . Install the extension wire into the connecting rod and take notice of the direction.
- Page 7 Connect the vertical fin and horizontal with the connecting rod. Push the connecting rod into the fuselage and take notice of the distance as below, After push it please raking-out the extension wire from the right side of the connecting rod, then It can connect with the receiver.
- Page 8 2-5)Assembly the Mid wing with the fuselage Glue the Mid wing and fuselage and then cover the Mid wing. Later Screw the PM3*60,and at the Bottom of fuselage, you will use the M5 nuts to fix the connecting rod so it can’t roll.
- Page 9 2-6) Assembly the aileron with the fuselage By the connecting rods you can connect the aileron with the fuselage, But at first you need glue the short pine into the fiberglass tube, so the connecting rods can as a whole. Please take notice of the Distance .
- Page 10 2-7)Assembly the parachute cabin cover Supplementary instruction we design this plane for FPV flight, So we reserve a place for FPV equipment, If you want to take it as FPV flight you can put some equipment before glue it, We suggest the position as below.
- Page 11 3.C.G adjust C.G position Please make sure the CG position at this. 4. Other instruction LiPo charging instructions Charge the LiPo battery by connecting the wall socket adapter (not included) to the balance charger.When power is supplied to the balance charger, connect the charge lead (usually white) of the LiPo battery to the balance charger.
- Page 12 Keep the speed well up on the landing approach to avoid stalling. If you had to move the trims during the flight, correct the mechanical linkages before flying again. This allows you to re-centre the trims, so that full trim travel is available for subsequent flights. www.aeritech-uav.com...
