WARRANTY
Cable Electronics, Inc. warrants this product to be free from defects in
material and workmanship, under normal use and service, for a period of
one year from the purchase by the original purchaser. If this product is
defective or malfunctions, Cable Electronics will replace or repair this unit (at
their option) within a reasonable time. No expressed or implied warranty is
made for any defects caused by immersion or exposure to liquids, abuse,
neglect, improper operation of unit, excess wear and tear and defects
resulting from unauthorized disassembly and or modification.
3209 Wood Drive
Garland, TX 75041
Phone: (469) 429-9200
Toll free: (800) 767-6189
Fax: (469) 429-9205
www.celabs.net
Document: AIO7_manual.pdf
990-3520-01_Rev.B
AIO7
All-in-One Player
Key Features:
•
Video/photo playing on demand by pushing button, supports up to
7 flashing buttons
•
Auto standby by motion sensor detection
•
Supporting low power mode
•
Auto detect to update the firmware and content
•
Push buttons counter (Maximum 99999 times for each button)
•
Brightness and contrast adjustment
•
Automatic turn ON/OFF at certain time
Advertisement
Table of Contents
Summary of Contents for Cable Electronics AIO7

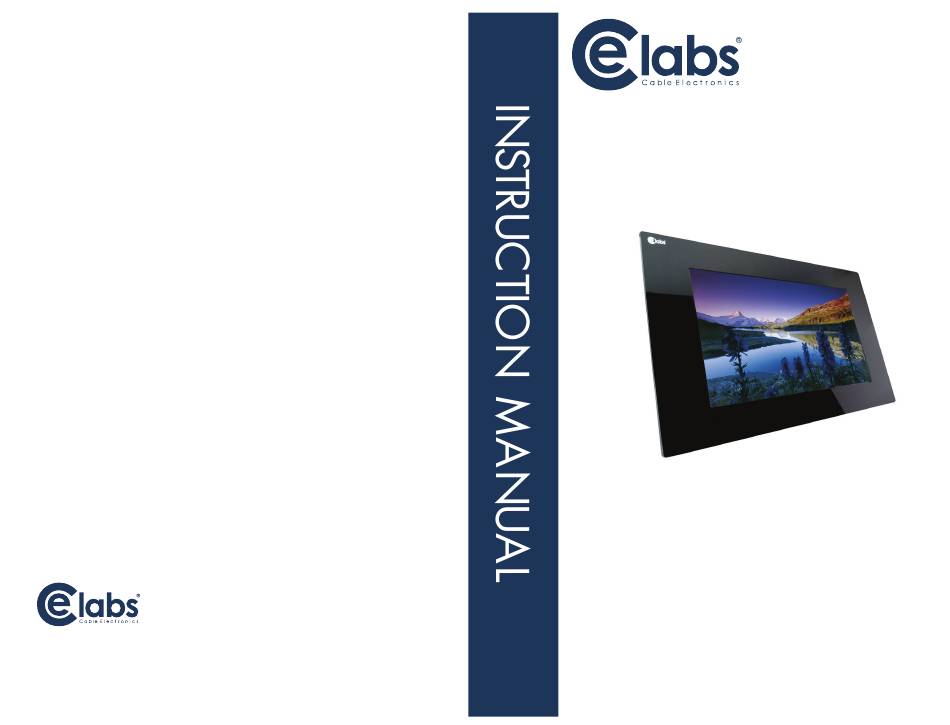

- Page 1 All-in-One Player WARRANTY Cable Electronics, Inc. warrants this product to be free from defects in material and workmanship, under normal use and service, for a period of one year from the purchase by the original purchaser. If this product is defective or malfunctions, Cable Electronics will replace or repair this unit (at their option) within a reasonable time.
- Page 2 Additional Photos: General Specifications • Resolution: 7 inch TFT (800x480), LED backlight LCD Item Specification Unit Contrast ratio 500:1 Response time msec Brightness Cd/m Active area 150.48(W)x85.92(H) Viewing angle 70/70/50/70 degree Interface Digital Back light • Power: DC12V 2A • Working current: 500mA-700mA; Standby: 300 mA; Power Off: 5mA •...
- Page 3 FIRMWARE UPDATE Language Automatic Update Using USB Drive Press MENU to enter the main menu, and then ↓ , move the cursor to LANGUAGE. Press Copy the firmware file named “upgrade.img” to the USB drive, then make a new TXT ↑...
- Page 4 Automatic Power On Time Setting Files Source ↑ ↓ In the menu of CLOCK SETTING, press Move cursor to the FILES SOURCE, press ENTER to select POWER ON TIME, then press ENTER to set the files source to play. Three sources can to confirm.
