Summary of Contents for Technika BH200

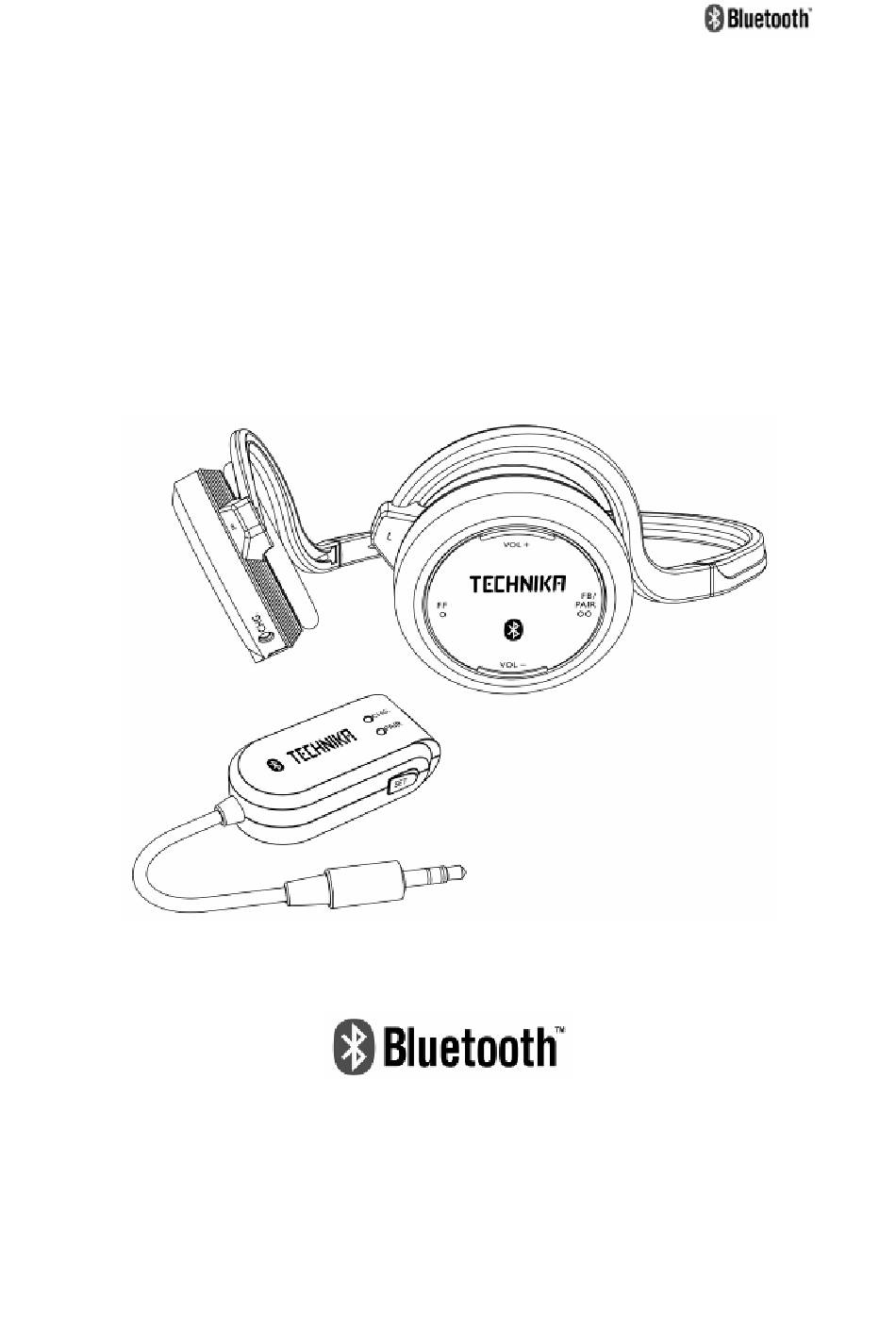

- Page 1 BH200 Bluetooth® Class II V2.0 Plug-n-Play Dual Mode Dongle and Headphone User’s Manual Please read before using the equipment...
- Page 2 Instruction Designed for an active lifestyle, the BH200 Bluetooth® Stereo Headphone combines the stylish design and reliable technology in the ideal mini size units. This exclusive 2-in-1 (3.5AV Mode/USB Mode) feature enables BH200 Bluetooth® Dongle to make connection to any music player such as a CD player, MP3 player and handheld game condole through 3.5mm...
-
Page 3: Identifying Components
IDENTIFYING COMPONENTS Headset ON/OFF slide switch Power ON/OFF USB jack To charge the headset with USB AC/DC power adaptor Charging LED (red) Charging process indicator Pairing LED (blue) Pairing process indicator Microphone Call button To answering/disconnecting call or pause the music Volume up Adjusting volume Fast Forward... -
Page 4: Low Power Indication
HEADSET STATUS INDICATION SEARCHING/LINK INDICATION Mode LED Status Power ON / Searching Pairing LED (blue) will flash quickly Pairing Both Pairing LED (blue) and Charging LED (red) will flash quickly and simultaneously Linked Pairing LED (blue) will flash slowly LOW POWER INDICATION Power Status LED Status Low Power... - Page 5 DONGLE STATUS INDICATION SEARCHING/LINK INDICATION Function LED Status Power ON / Searching Pairing LED (blue) will flash quickly Pairing Both Pairing LED (blue) and Charging LED (red) will flash quickly and simultaneously Linked Pairing LED (blue) flash slowly. VoIP/HCI INDICATION Mode LED Status VoIP...
- Page 6 DONGLE OPERATION KEY MODE SELECTOR SWITCH CONFIGURATION Mode Selection Switch on the Dongle has three positions as described below. Position Function Set to AV Mode when connect to the audio source via 3.5mm stereo cable for audio streaming. Set to POWER Mode when connect to computer or USB power adaptor for charging progress.
- Page 7 OPERATING GUIDE This section elaborates how to pair up the Dongle and headset for use with audio devices, pairing the headset with your computer for audio streaming/VoIP/HCI, and pairing the headset with your Cellphone for audio streaming/handfree. A. Connecting The Dongle to Audio Device via 3.5mm Audio Plug Set the Power switch on the headset to ON to turn on the headset.
- Page 8 pause. Press the Call button once again to end up the call, and resume the music playback. (c) HCI (Host Control Interface) Mode for Data Transferring/Receiving: If you want to transfer/receive files from your computer to any Bluetooth® enable devices, press the “SET”...
- Page 9 Once both devices were paired, your can sending file or receiving file between both paired devices. Example I: Sending File to a Bluetooth® Enable Cellphone Right click the Bluetooth® Icon, then select Send a file. Click Browse and select the Bluetooth® enable Cellphone, and then click Next On the Select the file you want to send page, click Browse, and select the file that you want to send.
- Page 10 Browse to select the location where you want to save the file, and then click Next. C. Pairing the BH200 headphone with Bluetooth® Enable Cellphone (a) Audio Streaming: Set the Power switch on the headset to ON to turn on the headset. The Charging LED (red) will flash slowly.
-
Page 11: Charging Method
(b) Handfree: Once your cellphone was paired to the headset, you can pick up an incoming call with the headset while listening to a music. If there is an incoming call, you will hear a ring tone from the headset. Press the Call button to pick up the call, and the music will pause simultaneously. - Page 12 Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
