Summary of Contents for Progeny Preva Plus

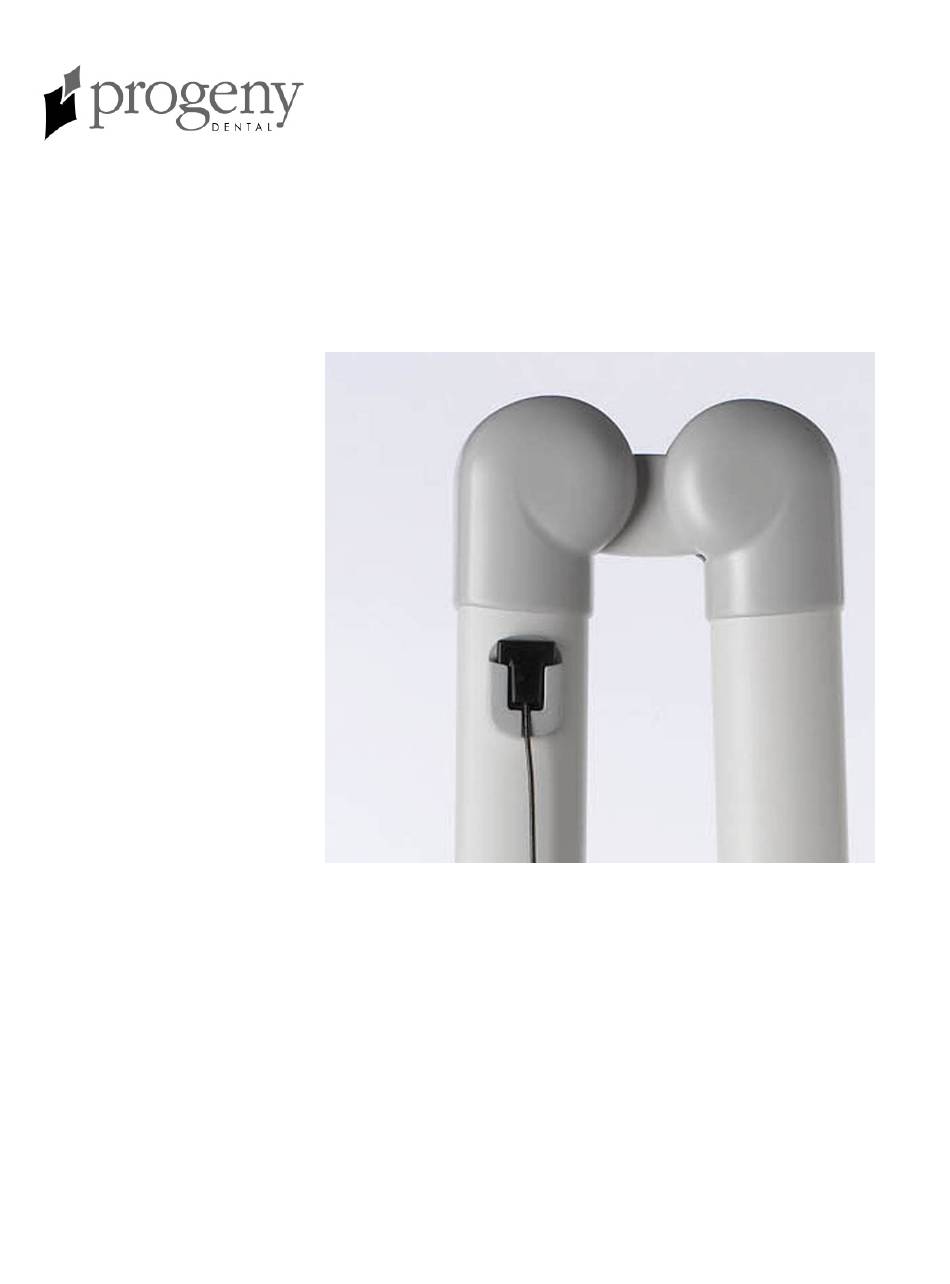

- Page 1 Preva Plus Upgrade Instructions FORM #00-02-0594 ECN: P1713 Rev. C...
- Page 2 Purpose These instructions facilitate the upgrade of a Preva DC Intraoral X-ray (manufactured after July 1, 2008) to a Preva Plus with integrated Vision DX Sensor. Items required for this upgrade may include one or more of the following Part Numbers: 600-401 –...
- Page 3 Procedure 1. Remove the end caps from the tube head end of the articulating arm by pulling them apart. Figure 1 2. Locate the cable tie that holds the end of the USB cable to the arm. Refer to Figure 2. Figure 2 3.
- Page 4 Figure 3 5. Replace the male end cap with Sensor Interface PCB,Arm Mount Kit. Press it and the female end cap together over the end of the Articulating Arm. 6. Secure the Sensor Interface PCB, Arm Mount Kit to the Articulating Arm using the M3 x 16mm socket head cap screw.
- Page 5 Figure 5 8. Plug the sensor connector into the Sensor Interface at the bottom of the Arm mount. Figure 6. Figure 6 9. Place the sensor into the sensor holder. Refer to Figure 7. Figure 7 FORM #00-02-0594 ECN: P1713 REV.
- Page 6 10. Remove the cover from the Preva Plus Control Unit. Attach the Unpowered USB Hub to the bracket adjacen t to the Logic pcb. Use the two M3x5mm screws provided. Refer to Figure 8. Figure 8 Locate the free end of the USB cable from the horizontal arm.
- Page 7 25 ft. in length. a. In the cases where the PC cannot reach the Preva Plus Control Unit wit the 5m USB cable, a USB-Ethernet Extender may be used. b. Attach the USB-Ethernet Extender to the bracket adjacent to the Logic pcb.
- Page 8 Replace the Control Insert in the Control Unit Cover with the Dual-Host Switch Assembly. c. Plug the USB cable from the Preva Plus Horizontal Arm into J2 on the Dual-Host Switch Assembly. . Plug the two USB cables for each of the two PCs into J1 and J3 on the Dual-Host Switch Assembly.
- Page 9 Figure 11 e. Dress the two USB cables through the notch in the bottom of the Control Unit cover and replace the cover. Refer to Figure 10. Figure 12 Plug one USB cable into a USB Port on each of the PCs in use. FORM #00-02-0594 ECN: P1713 REV.
- Page 10 Option 4: Mobile Installation Figure 13. a. With the operator panel and the cradle removed, route the USB cable and the control panel computer cable through the hole in the cradle bas as shown in figure b. Route the control panel computer cable through the cradle and the USB cable in the slot at the bottom of the cradle as shown in figure 14.
- Page 11 Figure 14. c. Attach the control panel computer cable to the control panel as shown in figure d. Place the control panel on to the cradle as shown in figure 15. Figure 15. FORM #00-02-0594 ECN: P1713 REV. C...
- Page 12 e. Attach the USB cable to the USB hub included in the system as shown in figure 16. Use the hub included with the system but do not connect the power cord to power as it is not necessary. This hub acts as an unpowered USB hub in this installation.
