Hawk 12-HPT300WH User Manual

4-in-1 wireless media presenter 2.4ghz
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4-in-1
Wireless Media Presenter
(2.4GHz)
User's Manual
Be sure to carefully read this User's
Manual first for the proper use of the
4-in-1 Wireless Media Presenter and
keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12-HPT300WH and is the answer not in the manual?

Questions and answers

Related Manuals for Hawk 12-HPT300WH

Summary of Contents for Hawk 12-HPT300WH

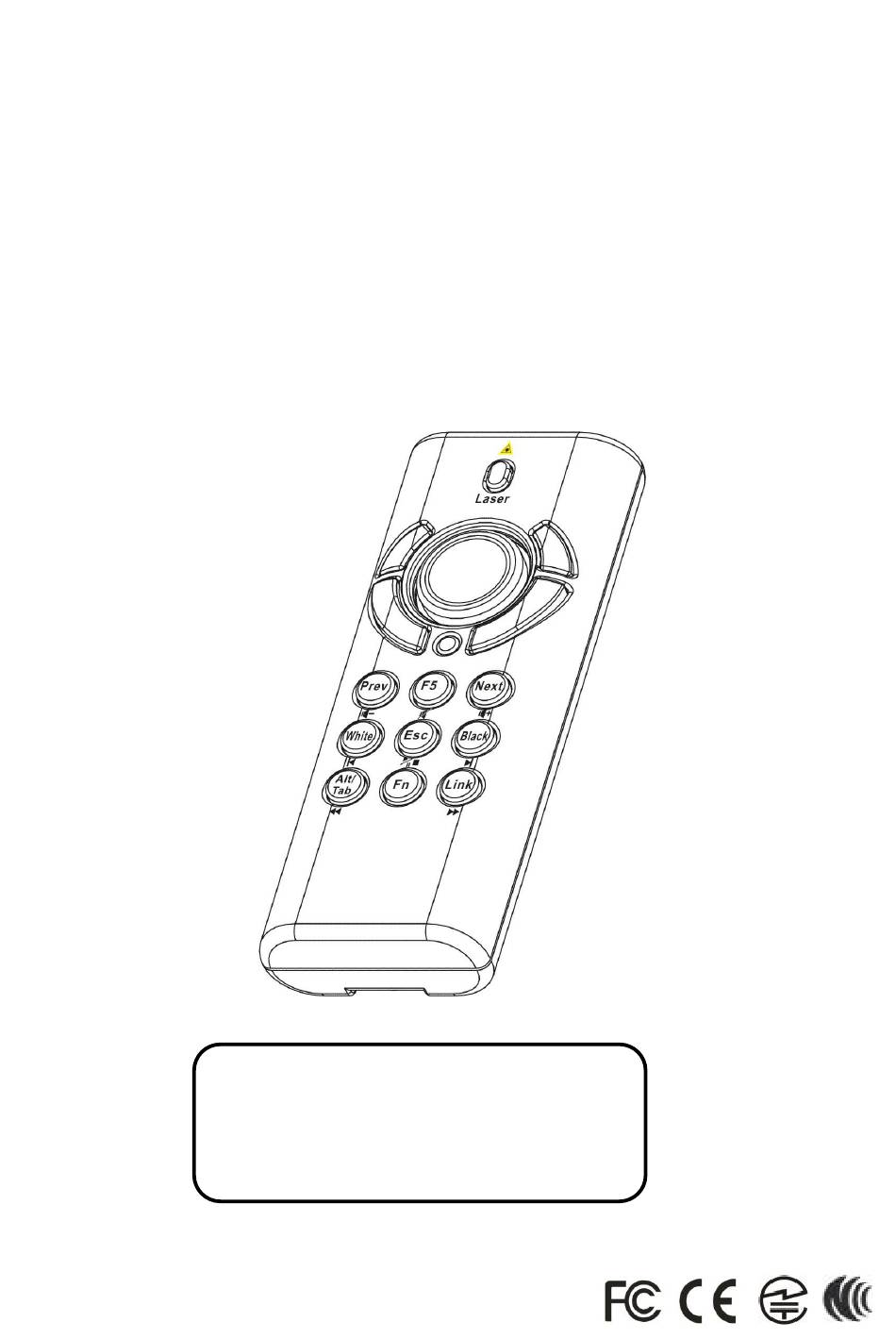

  • Page 1 4-in-1 Wireless Media Presenter (2.4GHz) User’s Manual Be sure to carefully read this User’s Manual first for the proper use of the 4-in-1 Wireless Media Presenter and keep it for future reference.
  • Page 2 Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written prior permission of the seller. The seller provides this document without warranty, or condition of any kind.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction  What’s the benefits  Equipment checklist  System requirements Chapter 2 Getting Started and Operation Mode  Inserting the battery  Connecting the USB receiver  Opening PowerPoint  Turning on the laser point ...

  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction Thank you for choosing this 4-in-1 Wireless Media Presenter — “Totally Control Your Presentation and PC Multimedia”  What’s the benefits 4-in-1 multi-function  This 4-in-1 Wireless Media Presenter combines the features of the PowerPoint Controls, Laser Pointer, Wireless Mouse and PC Multimedia Remote Control into one elegant device.

  • Page 5: Equipment Checklist

     Equipment Checklist Carefully unpack your 4-in-1 Wireless Media Presenter, and make sure you have all the following items: 4-in-1 Wireless Media Presenter  USB Receiver (attached in the back of Presenter)  AAA Batteries  User’s Manual  Carry case (might be optional) ...

  • Page 6: Chapter 2 Getting Started And Operation Mode

    Chapter 2 Getting Started and Operation Mode  Inserting the batteries Open the battery cover in the product rear side and insert two AAA batteries.  Connecting the USB receiver Take out the USB receiver in the back (please refer to page 7), label side down and plug it exactly into an USB port.

  • Page 7: Take Out/Put Back The Usb Receiver

     Take out the USB receiver Figure 1 Pull up the USB receiver as the following figure and then take the USB receiver out from the compartment.  Put back the USB receiver Figure 2 Insert the bottom of the USB receiver with the label side up and then press the USB receiver down to the compartment firmly.

  • Page 8: Chapter 3 Using The 4-In-1 Wireless Presenter

    Chapter 3 Using the 4-in-1 Wireless Media Presenter  PowerPoint Presentation Mode (Part I) Figure 3 Print in key Function description 1. Press Fn and Laser keys simultaneously till Orange LED blinking in orange to turn on or off laser pointer Laser 2.

  • Page 9: Powerpoint Presentation Mode (Part Ii)

     PowerPoint Presentation Mode (Part II) Figure 3 Print in key Function description  Mode change： Press and hold for 1 second and release to change modes between PowerPoint Presentation mode and Multimedia Player mode  Turn on or off laser pointer： Press Fn and Laser keys simultaneously till Orange LED blinking in orange to turn on or off laser pointer 1.

  • Page 10: Multimedia Player Mode

    Chapter 3 Using the 4-in-1 Wireless Media Presenter  Multimedia Player Mode (Note: Laser has no function at this mode) Figure 4 Print on case Function description Mouse keys Use main and left/right mouse keys as common mouse Blue LED Regularly blinks when at Multimedia Player mode Lights when battery power is detected lower than 2.5V Note：The control will still be available for a short time but suggest replacing new...

  • Page 11: Chapter 4 Additional Information

    Chapter 4 Additional Information  Specifications System Frequency range：2400~2483MHz Remote range：Approx. 100 feet (30 meters) indoors, 328 feet (100 meters) outdoors Operating voltage：Remote control: 2.5V~3.3V, Laser: 2.6V~3.3V Power：AAA batteries * 2 Power：Normal operation <10mA Laser operation < 20mA Sleep < 10uA Output power: Under 1mW Dimensions ...

  • Page 12: Trouble Shooting

    Trouble Shooting Question Possible cause How to resolve Need to install software for first No, this is a plug and play device. use of this product? Need to link ID before first use? No need Possible to use 2 or more of this Yes, but please implement ID Link in product in a room at the same advance to avoid interference (see...

  • Page 13: Special Remarks On Using Multimedia Player Function

    Special remark on using Multimedia Player function This product is designed to support English keyboard. If you are using other language O/S, please conduct following change before using the multimedia function. (a) Go to " Control Panel" -> " Regional and language options" --> " Languages"  click “...
  • Page 14 (b) Click “ Add” and choose required language e.g. German at Input language and change Keyboard layout/IME to “US”. (c) Execute Mediaplayer e.g. PowerDVD or WinDVD etc. (d) Move cursor inside the Mediaplayer screen to activate the full screen function. (e) Select required language e.g.

  • Page 15: 中文說明書

    四合一無線簡報器 (2.4GHz) 產品使用說明書 使用前務請詳閱本使用說明，以正確操作 本裝置，閱讀後並請妥善保存，以備日後 參考。謝謝...
  • Page 16 (注意：本產品具雷射功能，請勿將雷射光束直射眼睛並避免孩童把玩) (一)、本產品包含： 1. 無線簡報器 2. USB 無線接收器(簡報器背面) 3. 四號電池 4. 使用說明書 5. 潛水布套 (可能需另購) (二)、系統需求： Windows® 98 SE / Me / 2000 / XP / Windows Vista™ / Windows 7 USB 插孔 (三)、開始操作及模式說明： 1. 請先打開無線簡報器背面之電池蓋，依電極指示方向置入電池。 2. 取出無線簡報器背面之無線接收器，標籤面朝下插入電腦或其他簡報裝置之 USB 插 孔，並依電腦畫面指示操作。 3.
  • Page 17  取出 USB 無線接收器 圖 1 拉起無線接收器前端，然後取出無線接收器。 放回 USB 無線接收器 ■ 圖 2 標籤面朝上，先將無線接收器尾端插回儲存槽。 壓下無線接收器前端，確認無線 接收器固定於儲存槽中。...
  • Page 18 (四)、操作說明：(使用前請務必依本說明書實際操作一次，以便熟悉所有功能) 1. 簡報模式 (I) (注意: 請將語言輸入設定在”英文”, 不要在注音或倉頡模式) 圖 3 按鍵 功能 操作說明 1. 同時按 Fn 跟 Laser 按鍵, 橘色 LED 燈閃爍時表示成功開啟或關閉雷射 雷射按鍵 2. 開啟雷射後, 單按雷射開關鍵發出雷射光束 Laser 注意：30 分鐘以上沒有使用雷射時, 雷射功能會自動關閉 Orange LED 模式指示 開啟雷射後, 此橘色 LED 燈會定時閃爍 電池電壓低於 2.5V 時, 此紅色 LED 燈會亮起 低電力指示...
  • Page 19 1. 簡報模式 (II) (注意: 請將語言輸入設定在”英文”, 不要在注音或倉頡模式) 圖 3 按鍵 功能 操作說明 1. 同時按 Fn 跟 Laser 按鍵, 橘色 LED 燈閃爍時表示成功開啟或 1.開啟或關閉 關閉雷射 雷射 2. 單按此鍵 1 秒, 可從 ”簡報模式” 切換到 “多媒體模式” 或 2.模式切換 從 “多媒體模式” 切換到 ”簡報模式” 1. 先按下 USB 無線接收器上之頻率切換鈕(Link), 此時 USB 上 之紅色...
  • Page 20 2. 多媒體模式 (注意：本模式下雷射功能無法使用) 圖 4 按鍵 功能 操作說明 Mouse keys 滑鼠 使用方式如一般電腦滑鼠 在多媒體模式時, 此藍色 LED 燈會定時閃爍 模式指示 Blue LED 電池電壓低於 2.5V 時, 此紅色 LED 燈會亮起 低電力指示 Red LED 注意：LED 紅燈亮起後, 電力只能維持短暫使用, 建議儘速更換新電池 播放開始, 按一下此鍵, 開始多媒體放映; 再按此鍵並迅速放開, 暫停投影片放映. 長按此鍵 1 秒決結束放映 暫停, 結束...
  • Page 21 產品規格 使用頻率 2400~2483MHz 遙控距離 室內約 30 公尺；開放空間約 100 公尺 工作電壓 遙控功能：2.5V~3.3V；雷射功能：2.6V~3.3V 電源供應 四號電池(AAA)*2 輸出功率 小於 1mW 重量 無線簡報器(含電池)：約 63.2 公克 無線接收器：約 2.6 公克 體積 無線簡報器：105mm (長) x 40mm (寬) x 18mm (高) 無線接收器：49mm (長) x 16mm (寬) x 3.5mm (高) 環境...
  • Page 22 常見問題 問題 可能原因 解決方法 第一次使用時需先安裝軟體嗎? 不需要 第一次使用時需先做頻率聯結嗎? 不需要 可以在近距離內(三十公尺)同時使 可以 ， 但在使用前請先執行“重新 用兩支以上無線簡報器嗎？ 聯結”以避免干擾 (詳見第 19 頁操作說明) 沒有雷射但遙控功能正常 1. 多媒體模式：雷射功能 1. 確認已切換至簡報模式 自動關閉 (詳見第 19 頁操作說明) 2. 簡報模式：沒有開啟雷 2. 開啟雷射 射或雷射功能在靜置 (詳見第 19 頁操作說明) 三十分鐘後自動關閉 遙控功能異常但雷射正常運作 嚴重干擾 請執行“重新聯結” (詳見第 19 頁操作說明) 遙控及雷射同時異常...
