S911 Lola User Manual
Version 1.10
September 6, 2012
(Preliminary)
Copyright 2012 by Laipac Technology Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S911 Lola and is the answer not in the manual?

Questions and answers

Related Manuals for Laipac S911 Lola

Summary of Contents for Laipac S911 Lola

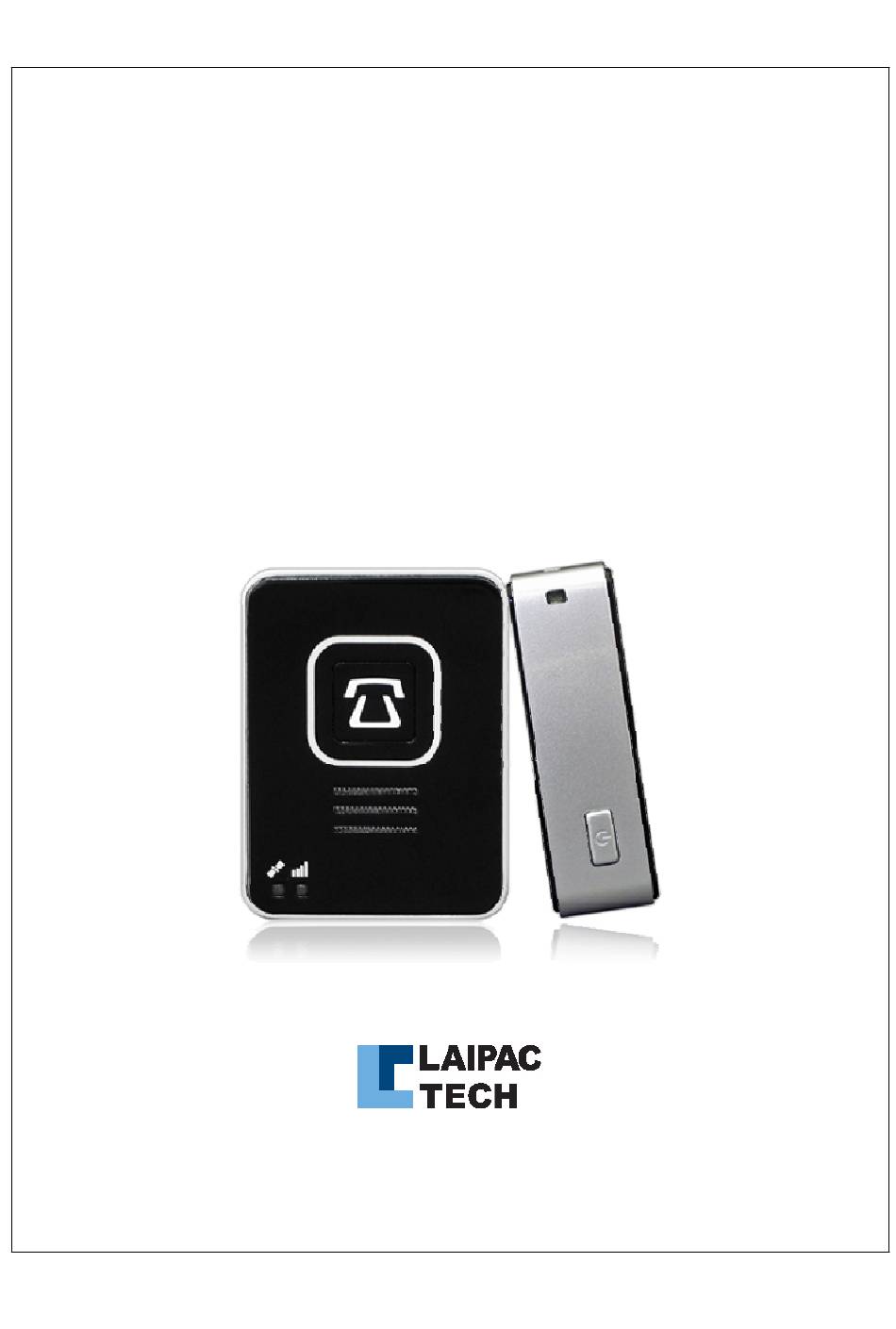

  • Page 1 S911 Lola User Manual Version 1.10 September 6, 2012 (Preliminary) Copyright 2012 by Laipac Technology Inc.
  • Page 2 0.754W/kg W/kg,Head is 0.919 W/kg. EU regulatory conformance (CE) Laipac Technology Inc hereby declares that this tracking device is in compliance with the essential requirements and other relevant provision of Directive 1999/5/EC. Additional regulatory conformance Specific details about compliance to the following standards and regulatory bodies may be obtained from Laipac Technology Inc.
  • Page 3 Chapter 4: SIM Card and Its Installation 4.1 Requirement for SIM Card 4.2 Installation of SIM Card Chapter 5: Configuration, Upgrading and Utility 5.1 Introduction to Laipac Suite 5.2 Usage of Laipac Suite Chapter 6: Operation Instructions 6.1 Knowing about your Lola 6.2 Function Button and Its Related Operation...

  • Page 4: For Your Safety

    - Chapter 1 - For Your Safety...
  • Page 5 Laipac Technology Inc. Read these simple guidelines below. Not following them may be dangerous or illegal. Read the complete user guide for further information. Road Safety Comes First Do not use the device for talk and text when wireless phone use is prohibited or when it may cause danger.

  • Page 6: About Your Device

    • Do not attempt to open the device other than as authorized technician by Laipac. • Do not drop, knock, or shake the device on purpose. It will trigger the tamper alert to the monitoring centre if internal motion sensor is enabled.
  • Page 7 - Chapter 2 – Introduction...
  • Page 8 2.1 Welcome Congratulations on purchasing the S-911 Lola! The S-911 Loa is a real-time personal tracking device which operates over GSM/GPRS networks and utilizes a built-in high sensitivity GPS receiver. Your Lola contains… • A new generation of high-sensitivity GPS receiver •...

  • Page 9: Main Features

    2.2 Main Features • Available for GSM/GPRS in 850/1900 900/1800 MHz • Complies with FCC, CE, and PTCRB (Under certification process) • Compact and robust design for portable usage • GPS, GSM/GPRS & Battery/Status Indicator LEDs • Internal Li-Ion Polymer rechargeable battery •...

  • Page 10: Specification

    - Chapter 3 - Specification...
  • Page 11 3.1 Electrical & Environmental Specs Item Typical Units Li-Ion polymer Battery Voltage Current Consumption while connecting Current Consumption in operation mode (Idling) Current consumption in operation mode (Reporting) Current Consumption in Power off Mode Peak Current (< 100mS) 1500 Ambient operating temperature °...

  • Page 12: Gps Engine Specification

    3.2 GPS Engine Specification Item Value Units Channels Channels RF Frequency 1575.42 Position update rate Position accuracy < 10 Meters Velocity accuracy Time accuracy Cold start acquisition time Seconds Warm start acquisition time Seconds Hot start acquisition time < 1 Seconds Maximum velocity tracked Maximum altitude tracked...

  • Page 13: Sim Card And Its Installation

    - Chapter 4 - SIM Card and Its Installation...

  • Page 14: Installation Of Sim Card

    This chapter describes the request for SIM card and the installation procedure of SIM card used for the S-911 Lola. 4.1 Requirement for SIM Card In order to use the Lola, you should have a valid SIM (Subscribe Identity Module) card provided by your local GSM/GPRS service provider.
  • Page 15 - Chapter 5 – Configuration, Upgrading and Utility...
  • Page 16 LocationNow Suite is the utility software to meet the requirements above. 5.2 Usage of Laipac Suite Another document, “S911 Lola Utility Operation Manual”, introduces the detail procedures below ● How to install this utility and its USB driver ●...
  • Page 17 Laipac Technology Inc. - Chapter 6 – Operation Instruction 20 Mural Street, Unit 5, Richmond Hill Ontario L4B 1K3 Canada Tel: 905-762-1228 | Fax: 905-763-1737 | E-mail: info@laipac.com http://www.laipac.com...
  • Page 18 Laipac Technology Inc. This chapter describes the S-911 Lola’s typical operation procedures, which is provided by the demo application firmware V1.02, the corresponding hardware version is V2.0. 6.1 Knowing about your Lola Fig. 6.1 shows the locations and names of the major physical features with this product Fig.
  • Page 19 There are 2 function buttons on Lola, user can find their positions in Fig. 6.1 above. Power Button: It is being used for turning on or off the S911 Lola unit. Turn On the unit: Press this button over 3 seconds, user should feel the vibration form the built-in vibrator.
  • Page 20 Laipac Technology Inc. Checking status: Press this button, user can hear beeping. Also, the LED indicators can tell user the working status of those major function parts inside Lola, such as GPS and GSM. 6.3 LED indicators and Lola’s working status There are 3 color LED indicators on Lola.
  • Page 21 Item GPS LED GSM LED SOS Back light LED Vibrator Operation and unit’s working status Unit is under charging and battery volt. is too low to activate unit White LED White LED flashing LED flashing work 1. Battery volt. is high enough to activate the unit automatically, or flashing 2.
