Summary of Contents for Sport Camera SportyCamHD GPS
- Page 1 SportyCamHD GPS Sportcamera gruppo DMT Services Via S. Gottardo, 8 – 47900 Rimini (RN) info@sportcamera.net www.sportcamera.net...
-
Page 2: Table Of Contents
Manuale inglese Indice Product Introduction ……………………………………..............2 Safety Instruction…………………………………………..............3 Camera Accessories……………………………………..............4 Interface Function Instruction…………………………..............5 Charge the Battery Usage…………………………………..............6 Insert /Take Out SD Card…………………………………...............7 Install Instruction……………………………………………..............8 Key Function Description......................9 Basic Operation…………………………………………………...........9-13 Menu Setting…………………………………………..............13-14 GPS Introduction…………………....................15 PC Mode…………………………………………................16 Remote controller Instruction.......................16 Technical Specification………………………………………............17 Troubleshooting…………………………………................18 Sportcamera gruppo DMT Services Via S. -
Page 3: Product Introduction

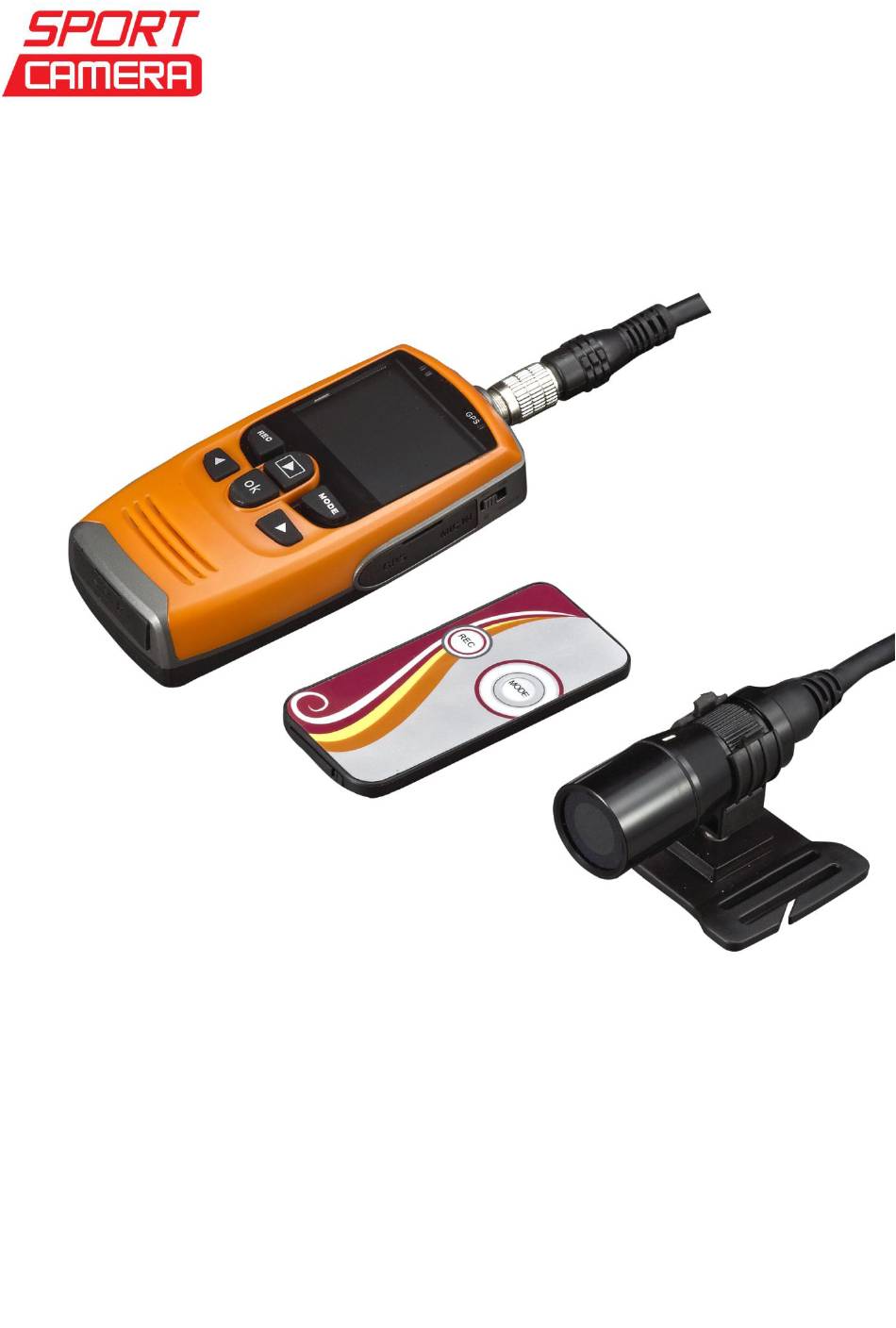

Product Introduction This camera adopts high-speed image processing CPU, high performance photosensitive sensor and 6G wide angle lens. It can make video more smooth and perfect,perspective is wider but without distortion.Two-channel stereo audio input. Receiver and camera head are connected by removable air head cable so that it can be carried and applied more easily. -
Page 4: Camera Accessories
Camera Accessories Main accessories: Receiver Remote control Camera Other accessories: Bag User manual GPS module USB cable HDMI cable Helmet grip Camera pedestal Universal bracket Bicycle bracket 3M pads (3 pcs) ... -
Page 5: Interface Function Instruction
Interface Function Instruction Sportcamera gruppo DMT Services Via S. Gottardo, 8 – 47900 Rimini (RN) info@sportcamera.net www.sportcamera.net... - Page 6 1. Charger indicator 2. Working indicator 3. GPS indicator 4. TFT screen 5. Mode key 6. Playback key 7. REC key 8. Left key 9. OK key 10. Right key 11. Speaker 12. SD card slot 13. MIC 14. GPS input port 15.
-
Page 7: Charge The Battery Usage
Charge the Battery Usage 1. Charge the battery Please connect the receiver to the USB port, and then connect the charger to the power socket for charging. While charging, the red charging indicator in left up corner of receiver is on. When the battery is fully charged, the red light indicator is off. -
Page 8: Install Instruction
Install instruction 1. Install helmet grip According to the picture, screw the camera pedestal into the helmet grip,adjust direction after the rotation of the adjusting disc lock. 2. Install lens emitter According to the picture, put the camera into the camera flat pedestal, and then put the elastic through the slot of helmet pedestal,and bind the helt around the helmet or head. -
Page 9: Key Function Description
Key Function Description REC key: Taking video or stop; Taking pictures Browse key: check movies and pictures. Mode key: switch to camera/video mode; one frame playback Left key: to zoom out the image; to select the last file or menu. OK key: to playback videos and to pause;... - Page 10 2. Video Mode (1) Normal Recording Set “Record Overwrite” as “OFF”, press “REC key” to record videos, and “IN USE” indicator flickers, recorded time and video icon appear on the up side of LCD screen. Press “REC key” again to stop recording, the “IN USE” indicator stops flickering and save videos recorded.
- Page 11 Aim at the object you want to shoot, press “REC key” to take shooting and it will save pictures automatically. (2) Self capture Under camera mode, press and hold “OK key” for 3 seconds enter menu setting, and press to select self capture (you can choose different time), press “OK key” to confirm and quit the setting.
- Page 12 To playback GPS video footage needs to use the special player software to display the location data.Refer to below picture. GPS function on,set GPS power “ON” in the menu, then plug GPS moulde into GPS input When camera is port, the yellow light indicator is on, LCD screen will display the values of N:--- and E:---, speed:000.0Km/H and 00:00:00:0 refresh time accurate to 0.2 seconds.
-
Page 13: Menu Setting
Menu Setting Under video monitoring and camera mode, there are separated corresponding menu settings. Press and hold “OK key” for 3 seconds to enter system setting mode. Menu Setting Under video monitoring mode 1）Resolution：FULL HD30 / FULL HD 25 / 1080P30 / 1080P 25 / 720P60 / 720P 50 /720P30 / 720P 25 / WVGAP60 / WVGAP 30 2）Record Overwrite：OFF/1 MIN/2 MIN/3 MIN/5 MIN 3）Time and Date：2010.01.01 10：30（current time）... -
Page 14: Pc Mode
Turn the camera on, connect camera to HD TV video input port and audio input port of with the HDMI cable provided. Choose HDMI mode on TV, the LCD screen of camera will be off automatically, all operation functions can be shown on TV. PC Mode Turn the camera on, connect camera to computer with USB cable. -
Page 15: Troubleshooting
1080P (1440*1080) 30fps/25fps 720P (1280*720) 60fps/50fps/30fps /25fps WVGA (848*480) 60fps /30fps Screen 2 inch TFT screen, 16 Mega pixels for still picture Zoom 4X digital zoom Audio Built-in Microphone/speaker, external microphone Storage SDHC slot supports up to 32G File format JPG/MPEG4 Battery Rechargeable Li-ion battery (3.7V 1700 mAh) - Page 16 check if USB port has a malfunction. I can’t capture the video footage. Make sure there’s enough space on the internal memory of Action cam of the SD card. The display will tell you how much time left for video recording.
