Chapter 1
Introduction

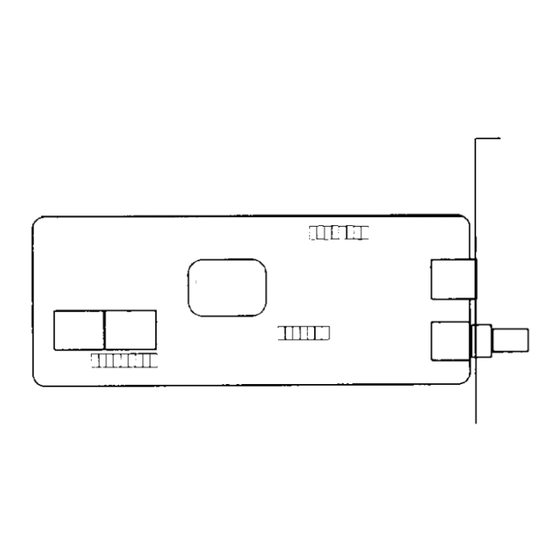

The GE200011 Series are 16-bit Jumper & Jumperless Novell
NE2000 compatible Ethernet adapters designed for users to
connect IBM PC/XT/AT and its compatible computers to an
IEEE802.3 Ethernet network. The GE200011 Series includes
the following three models:
:
*GE2000ll-2
Supports both RJ-45 phone jack & BNC
connectors for IOBASE-T UTP cable and
1 OBASE-2 thin coaxial cable connections.
*
:
GE2000ll-CX
Supports BNC connector for 10BASE-2 thin
coaxial cable connection.
:
*GE2000ll-TP
Supports RJ-45 phone jack connector for
1 OBASE-T UTP cable connection.
(All of these three models support an AUI expension
connector for an optional AUI expension cable)
Features 8 Benefits
The GE200011 series allow users to configure the hardware
by using either jumper or software. The auto-setup feature
makes the card "plug & play". 8 interrupts and 8 I/O
addresses are supported to increase the flexibility of the
hardware installation. It is also equipped with 16KB SRAM
on-board data buffer, socket for an optional 8KB remote boot
ROM. In addition, it provides comprehensive driver supports
for those most popular network operating systems (NOS)
such as, NetWare, Personal NetWare, LAN Manager, WFW,
and TCP/IP. Diagnostic program is provided for detecting
hardware configuration / connection / operation failure.
I-I
Advertisement
Summary of Contents for Genius KYE Systems GE200011 Series
- Page 1 Chapter 1 Introduction The GE200011 Series are 16-bit Jumper & Jumperless Novell NE2000 compatible Ethernet adapters designed for users to connect IBM PC/XT/AT and its compatible computers to an IEEE802.3 Ethernet network. The GE200011 Series includes the following three models: *GE2000ll-2 Supports both RJ-45 phone jack &...
-
Page 2: Location Of Components
Jumper Description The major features and benefits of GE200011 Series are summarized as follows: Jumper Description Conforms to IEEE802.3 CSMA/CD Ethernet standard Fully Novell NE2000 compatible Configuration by jumers or software (Jumperless mode) Auto hardware configuration through auto-setup program Auto-dectection for 8/16-bit bus interface and media type... -
Page 3: Adapter Configuration
Hardware Installation Capter 2 The hardware installation requires the following two steps: Adapter Configuration Adapter Installation Adapter Diagnostic Adapter Configuration This GE200011 LAN adapter supports both software configuration (Jumperless mode), and the jumper setting (Jumper mode). Both configuration modes are described as f o l l o w s : Jumperless Mode Configuration GE200011 is by default set at jumperless mode (IRQ=3, l/O... - Page 4 Step 2. Run SETUP Program After comoletina the setuo oroaram. users MUST select To run SETUP program in the DOS prompt, please locate “Save Configuration” to save the selection and reboot PC the prompt under A:\SETUP subdirectory and type: system again by truning OFF/ON power switch. A:>SETUP Jumper Mode Configuration If jumper configuration is used, the following jumper settings...
- Page 5 ROM Usage and Memory Boot Address Setting 6. Connect the adapter to the network using thin or twisted- An optional boot ROM is available to be installed on the pair Ethernet cable. (an optional AUI expansion port is adapter. JP2 is by default set to Boot ROM disable. If a available for thick Ethernet cable).
- Page 6 Hardware such as adapterID, I/O address, and work with network operating systems. These programs are Configuration loaded on the diskette contained in the GE200011 series When the product transmits or package. Transmit / receives a packet in the network, the...
- Page 7 Appendix A Specifications Specification IEEE802.3 CSMA/CD Ethernet 10BASE-2 S t a n d a r d and 1 OBASE-T 10 Mbps Data Rate H a r d w a r e IBM PC/XT/AT, and compatibles BNC for GE2000ll-CX, RJ-45 for GE2000ll- I n t e r f a c e TP, and both connectors for GE2000ll-2 Expansion...
- Page 8 Appendix B Warranty W arranty Limitation of Liability We hereby warrant this Ethernet GE200011 series products, if properly handled under normal use and only for the ALL EXPRESSED AND IMPLIED WARRANTIES OF purpose it is designed for, to be free of defects in...
- Page 9 Disclaimer KYE SYSTEMS CORP. makes no representations or warranties with respect to the contents or use of this manual, any driver and testing software, and specifically disclaims any expressed or implied warranties of merchantability or fitness for any particular purpose. KYE SYSTEMS CORP.
-
Page 10: Table Of Contents
Table of Contents FCC Warning This equipment generates radio frequency energy and, if Disclaimer installed and used in accordance with the instructions in this FCC Warning manual, may cause interference to radio communication. Table of Contents However, there is no guarantee that interference will occur in a particular installation. -
Page 11: Driver Installation
This appendix lists the technical specification of the product, as well as the application environment and Software, Hardware certifications. Appendix B Warranty This appendix tells the warranty policy of GE200011 series product. User Manual Driver Diskette Figure I. Package content...
