User Instructions: Rain Cover for Focus Venue
RC-Top-FV (Art. No. 8159-00000)

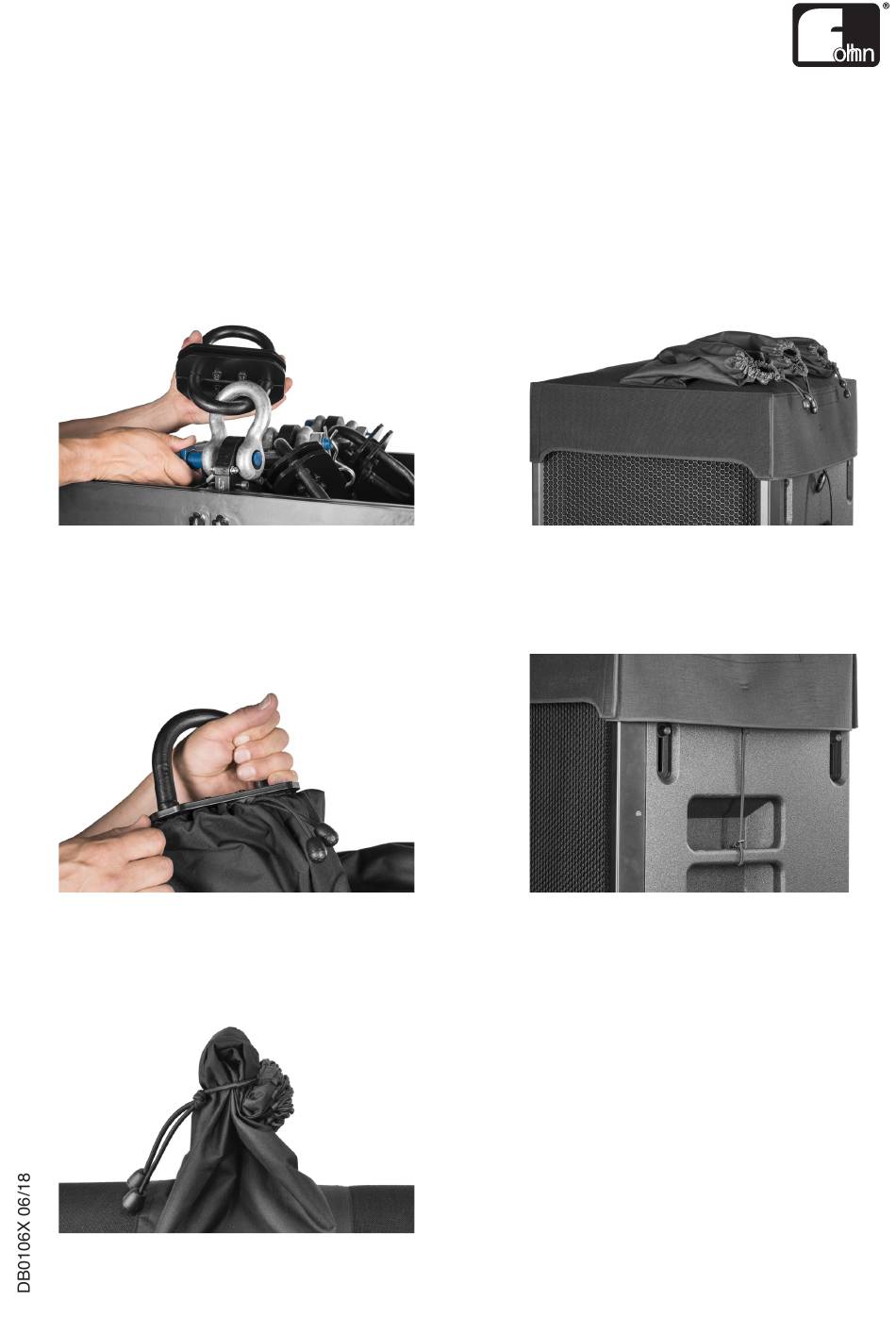

1. Attach the load rings to the shackles on the
flying frame slides. Each shackle should be inserted
through the smaller opening on the load ring.
3. Guide each load ring up through its respective
sleeve and use the elastic cord to gather the top of
the sleeve into the groove on the load ring.
5. If you are not using all three load rings, fold over
the tops of any empty sleeves and close them by
tying the elastic cord around.
2. Put the rain cover on the flying frame.
4. Attach the rain cover to the loudspeaker grab
handles using the adjustable elastic cords.
Technical Data for Load Ring
Max. load according to DGVU V17: 1300 kg
Net weight: 2 kg
