10/19

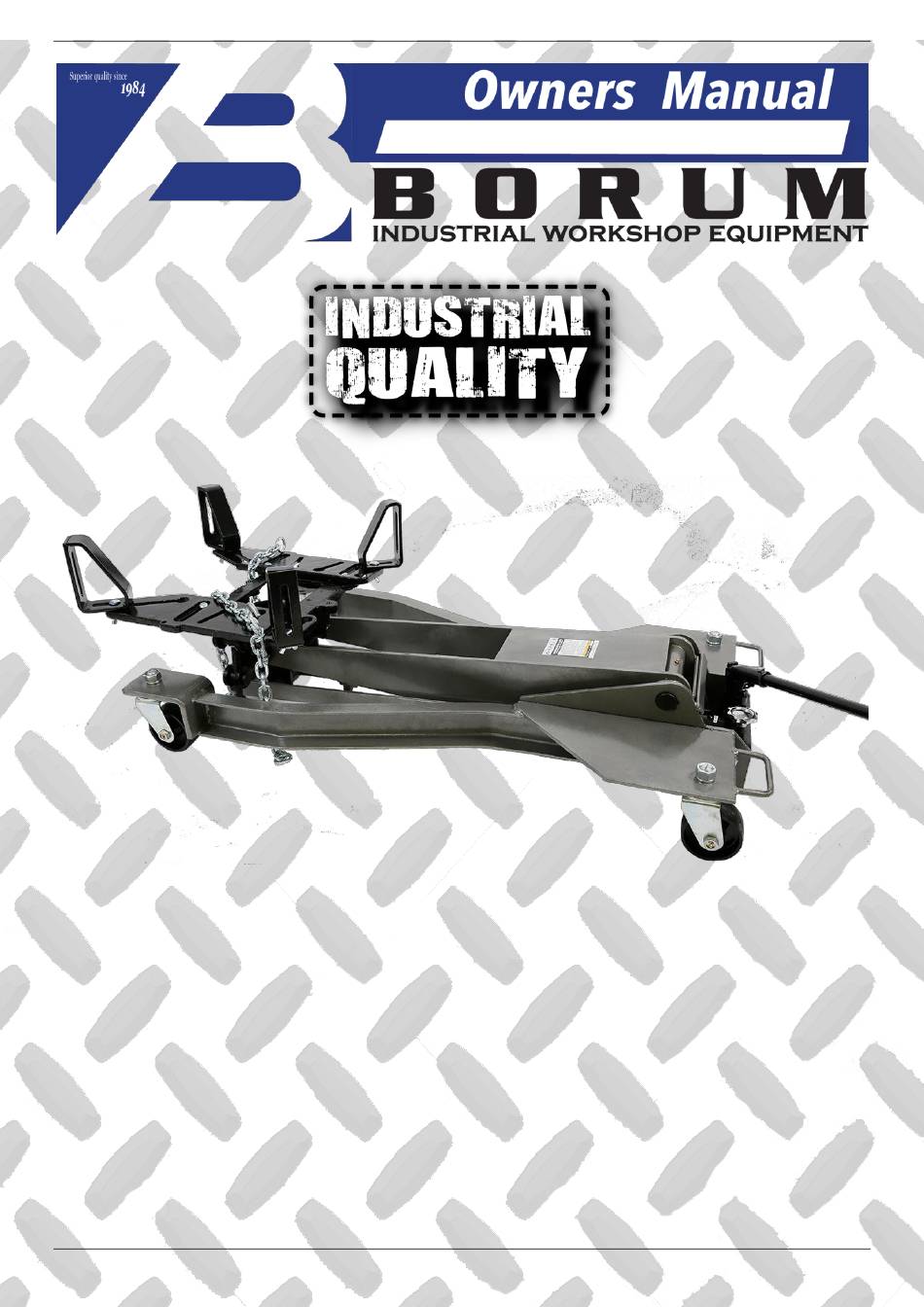

B900TJL
900kg TRANSMISSION LIFTER
Specifications:
Safe Working Capacity: 900kg
Minimum Height: 275mm
Maximum Height: 1118mm
Cradle Forward Tilt: 40°
Cradle Backward Tilt: 25°
Cradle Lateral Tilt: 12°
Swivel Castor Wheel Dia: 75mm
Chassis: 1226(L) x 705(W) mm
Nett Weight: 135kg
Carton: 1460 x 840 x 370mm
Gross Weight: 146kg
About the Borum brand
Our "heavy duty commercial" range of Borum Industrial equipment has been manufactured to exacting standards for the past 34
years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport,
mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior
professional standards, reliability, quality, and are covered by a 12 month trade use warranty.
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
Advertisement
Table of Contents
Related Manuals for Borum B900TJL
Summary of Contents for Borum B900TJL
- Page 1 About the Borum brand Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments.
- Page 2 Whilst every effort has been made to ensure accuracy of information contained in this manual, the Borum policy of continuous improvement determines the right to make modifications without prior warning.
- Page 3 12. DO NOT tamper with the safety valve. 13. DO NOT expose the transmission lifter to rain or any other kind of inclement weather. 14. When servicing, use only Borum identical replacement parts. Use of any other parts will void the warranty.
- Page 4 ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES & MODELS The Borum Industrial Extra Long... Extra Wide chassis floor-style transmission jack is designed for work on heavy-duty transmissions, including Spicer, Mack, Allison, Clark, Mercedes, Volvo and Iveco. This heavy duty transmission jack features a wide chassis, fully adjustable 4way tilt cradle, four 75mm diameter easy-roll castors and a swivel pump handle that can be repositioned in tight spots.
- Page 5 10/19 B900TJL Re-installing a Transmission 1. Move the transmission lifter so that the transmission is lined up properly with its connection points. 2. Close the release valve. 3. Pump the handle to gradually raise the transmission lifter, while guiding the transmission lifter into place.
- Page 6 10/19 B900TJL PARTS LIST & DIAGRAM Part Description Part Description Main Frame Lock Nut M12 Lift Arm Washer 12 Front Link Axle (Plate) Circlip Axle (Base) Forward Pivot Shaft Screw Nut Kit Saddle Support Assembly Grease Nipple Side Pivot Shaft...
- Page 7 B900TJL WARRANTY BORUM Industrial products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
