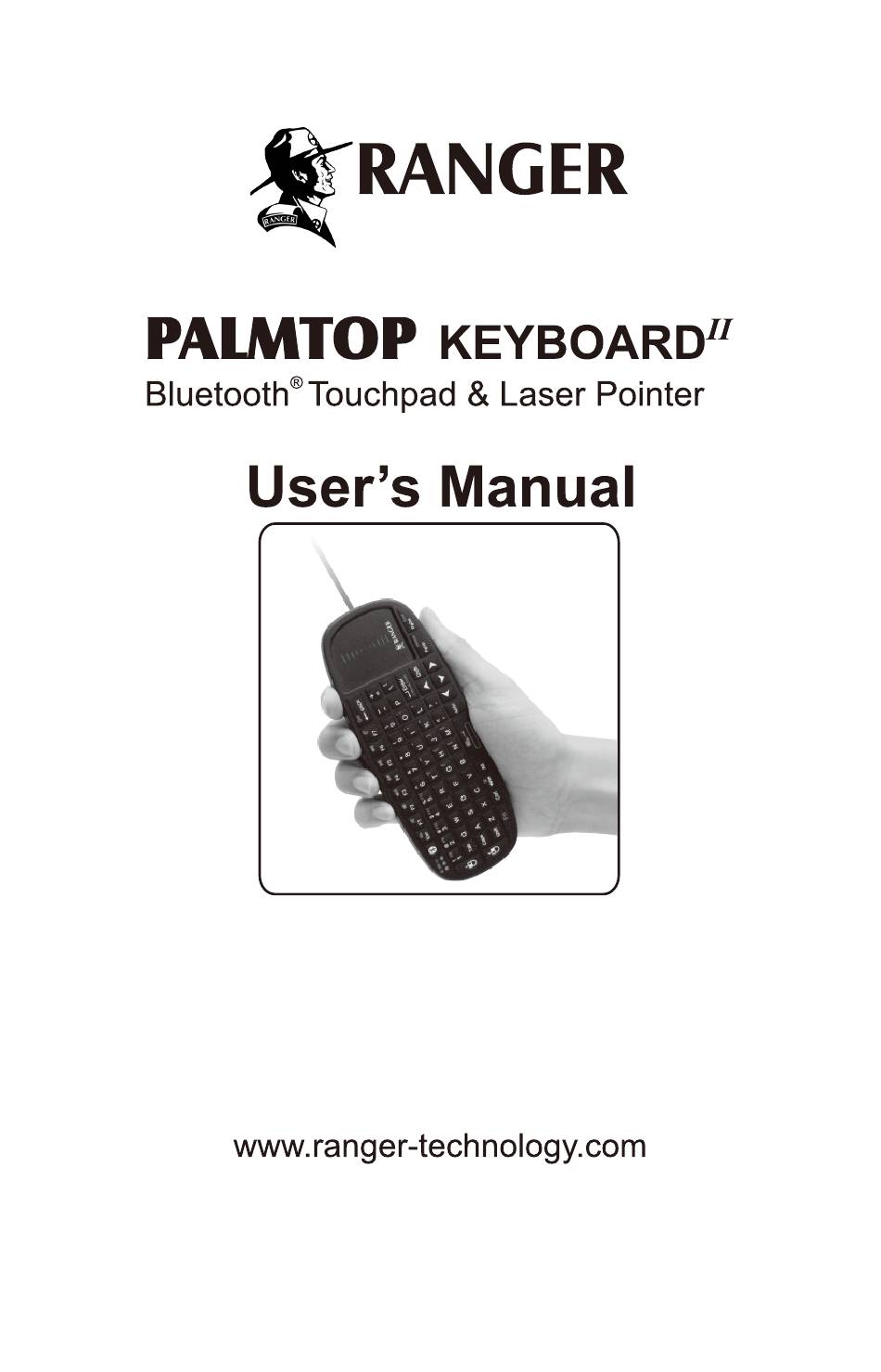

Summary of Contents for Ranger PALMTOP Keyboard II
- Page 2 1. Introduction 1. Introduction Thank you for your purchase of the Ranger Palmtop Bluetooth Thank you for your purchase of the Ranger Palmtop Bluetooth keyboard with Touchpad and Laser Pointer combo. keyboard with Touchpad and Laser Pointer combo. Specification Specification Measurements (LxWxH): 154x62.5x12mm...
- Page 3 2. Keyboard Diagram Keyboard Function Description Table Bluetooth Communication indicator Charging indicator Battery capacity indicator 2. Left Mouse Button 3. Right Mouse Button...
- Page 4 4.5. Multimedia Control Keys Fn+Esc=Lock Touch Pad(Click & Double Click) Fn+F1=Mute Fn+F2=Volume down Fn+F3=Volume up Fn+F4=Previous Fn+F5=Play/Pause Fn+F6=Next Fn+F7=Internet Fn+1=F8 Fn+2=F9 Fn+3=F10 Fn+4=F11 Fn+5=F12 6. Bluetooth Pair / Connect Key 7. Page Down: Fn+PgDn=End 8. Page Up: Fn+PgUp=Home 9. Fn+ENTER=Bring up the Task Manager etcs 10.
- Page 5 Pairing Mode 1. Make sure the power switch is turned to the "on" position, the Blue LED will illuminate for 2 seconds. 2. Press the "Bluetooth Pair/Connect Key" on the keyboard, the Blue LED will blink intermittently. 3. Go to the Bluetooth settings of your device and select the keyboard "Bluetooth 3.0 Macro Keyboard"...
- Page 6 4. Right click on the Bluetooth keyboard and select “Connect -Bluetooth Input Service”. 5. A popup dialog will appear with a code. Input this code to the keyboard and press OK. The system will automatically install the drivers for the keyboard. Windows OS (Broadcom Bluetooth stack) 1.
- Page 7 5. Maintenance * Do not attempt to disassemble the device or replace rechargeable battery. Doing so will void the warranty. * The battery will discharge if stored for a long period of time without usage. * Use the specified USB charging cable. Disconnect the device after the battery has been fully charged.
