ACTIVANKLE
Cleaning Instructions
®
Read Entire Instructions Before Proceeding




















         Disassembly
a.
Unlock the ankle.
Remove D‐ring (12) and D‐ring cap (13).  Cut nylon tie‐wraps and remove neoprene
b.
cover.
c.
At a point near the LOWER DOWEL (15), insert a flat‐blade screw driver under the
END CAP (1) lip.
Pry up and remove END CAP.
Using a Phillips screw driver, remove MACHINE SCREW  (2).
d.
Remove WASHERS (3 and 6), SPRING (5) and SLEEVE (4). If any of these items remain
e.
lodged in the
a. center of the CAM (8), they can be pushed out after the HANDLE ASSEMBLY (10 thru 14) is removed in
step 1.f.
f.
Pull the HANDLE ASSEMBLY from the UPPER and LOWER ANKLE (19 and 20).
Insert shaft of Bushing Puller into CAM (8).
g.
Attach Bushing Puller to the BUSHING (7 or 9).
Hand tighten the screws. Do not over tighten
Push or tap end of shaft until BUSHING releases.
h.
Repeat step (1.g) to remove the other bushing.




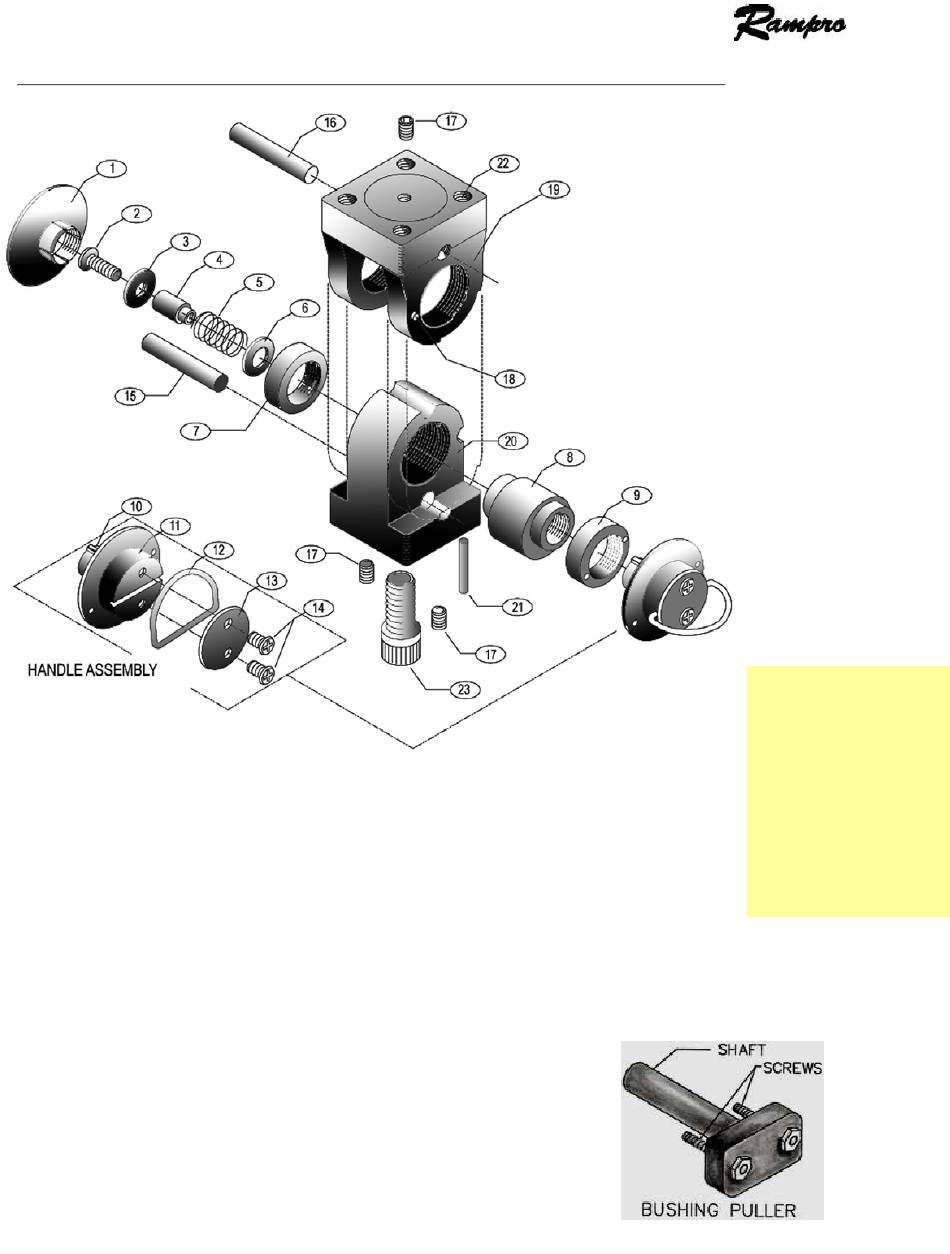

Parts List
1. End Cap
2. Machine Screw
(SS Truss  Head 8‐32 x 1)
3. Washer
4. Sleeve (SS) *
5. Spring (SS)
6. Washer
7. Bushing
8. Cam
9. Bushing
10. Woodruff Key  (1/8 x 1/2)
11. Handle Body
12. D‐ring
13. D‐ring Cap
14. Machine Screw (2)
(SS Oval Head 8‐32 x 3/8)
15. Lower Dowel
16. Upper Dowel
17. Set Screw (3) (SS 10‐24 x
1/4)
18. Handle Locking  Pin
19. Upper Ankle
20. Lower Ankle
21. Dowel Pin (SS 5/32 x 1)
22. Threads (M6 x 1) **
23. Socket Head Cap Screw
(SS M10 ) ***
Tools required:

Bushing Puller  (ACK)
Teflon grease
#2 Phillips screw
driver
Clean cloth
Flat screw driver
