- Page 1 HVLP paint spray gun EN INSTRUCTION MANUAL IMPORTANT: Please read these instructions carefully before you start to use your PAINT FAST 4x4 by VON HOME...
-
Page 2: Table Of Contents
THANK YOU FOR PURCHASING With this advanced system of spraying paint, you will enjoy quick, simple and superior results when used on large and small surfaces, without suffering any spills or dripping. Its 360º spraying technology will allow you to spray in a horizontal or vertical pattern, and even in a precision pattern so that you can paint even the most inaccessible corners. -
Page 3: Important Safety Information
• Never use plastic to isolate the area where • Do not use the PAINT FAST 4x4 by VON HOME you will spray. Do not wear plastic clothing or if the switch does not turn on or turn off the protection when spraying materials indoors. - Page 4 • Do not use materials that contain bleach or • Do not spray in rainy or windy weather. chlorine. • PAINT FAST 4X4 By VON HOME is not designed • Do not use halogenated hydrocarbon solvents to be used for applying any kind of sunscreen;...
-
Page 5: Product Components
• Never spray without the protection of the nozzle. • Make sure the switch is in the OFF position before plugging in the power cord, lifting or • Keep the electric cable, plug and the trigger moving the paint sprayer. of the spray gun free of paint and other liquids. -
Page 6: Product Assembly
B. MULTIPOSITION REGULATOR Types of paint C. NOZZLE PAINT FAST 4X4 by VON HOME can be used with any type of paint (except textured) provided it is perfectly diluted and in a liquid state that allows it to pass through the suction tube easily. - Page 7 1.1.1-trichloroethane if you are painting aluminium. Filling the PAINT FAST 4x4 by VON HOME NOTE: When you point the suction tube in the 1. Make sure that the device is unplugged and right direction, you will not have to refill the the switch is in the OFF position.
-
Page 8: Intensity Adjustment
INTENSITY ADJUSTMENT How to adjust the pattern The intensity adjustment will allow you to 1. Make sure that the paint sprayer is turned off. increase or decrease the flow of paint that 2. Loosen the retaining nut by turning it anti- comes out of the nozzle. -
Page 9: Led Light
LED LIGHT • Never tilt the sprayer upwards at an angle of more than 45°. The material could enter the The innovative PAINT FAST 4X4 by VON HOME turbine and damage the sprayer. light guide gives you greater precision in difficult to access or poorly lit corners. -
Page 10: Cleaning Instructions
6. Put the container back in the gun, plug in the cleaning solution. PAINT FAST 4X4 by VON HOME and turn it on. IMPORTANT: It is advisable to check whether the 7. In a safe area and in an empty can, spray the motor air filter is excessively dirty. - Page 11 AIR FILTER Note: If paint entered the air tube, remove the multiposition regulator and clean the inside with a damp cloth. IMPORTANT: The air tube and multiposition regulator are resistant to solvents only up to a certain point. Never immerse them in solvent, only clean them.
-
Page 12: Troubleshooting
TROUBLESHOOTING Problem Cause Solution The nozzle is clogged up. Clean it The suction tube is clogged up Increase the intensity of flow (+) The intensity of flow is too low (-) Increase the intensity of flow (+) No or little material for The suction tube is loose Reinsert the tube painting is sprayed... -
Page 13: Technical Information
TECHNICAL INFORMATION Model Q1P-WYT24-800 Power 600 W Voltage 110 V Nominal Frequency 60 Hz Protection Class Cable Size 2 meters Voltage or range of the LED light 1,5 V WARRANTY This product is covered by a warranty against manufacturing defects subject to the time periods stipulated by the legislation in force in each country. - Page 14 info@windirect.es Distributed by : Win Direct S.L. C/ Córcega 299, 5º 3ª, 08008 Barcelona, Spain Made in China...
Need help?
Do you have a question about the PAINT FAST 4X4 and is the answer not in the manual?
Questions and answers

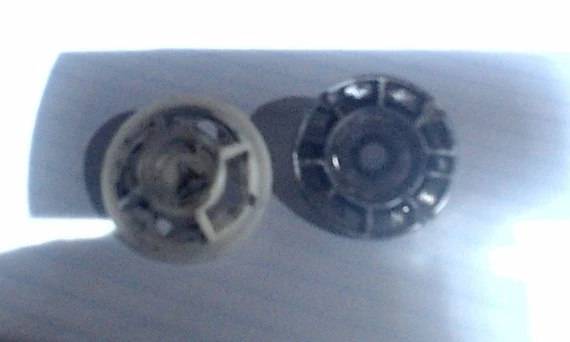

where can I order parts for my Paint Fast 4x4 Paint Blast Q1P-WYT24-800, the rubber seal on the spray nozzle is missing and would like to purchase the item if possible thank you.
