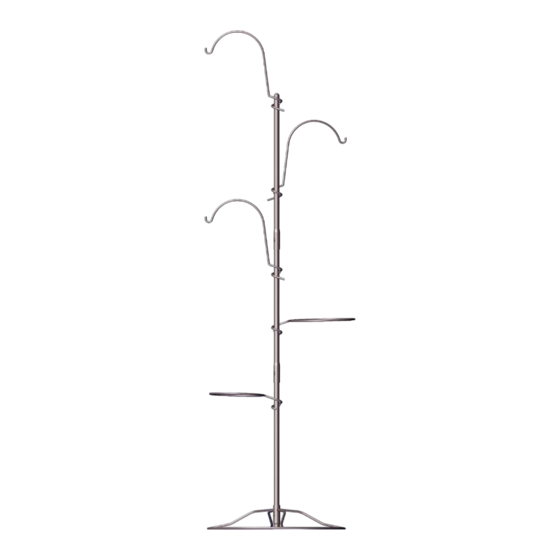

YARD TREE
ASSEMBLY INSTRUCTIONS
1
STEP 1
Insert bottom pole into base and
secure with set screw.
2
STEP 2
Slide gravity lock ring over
bottom pole then insert middle
pole and secure with set screw.
Repeat with top pole & ring.
Questions?
Let Lewis Tools Customer Service help!
Call 1-800-589-7058 or
Email customerservice@lewistools.com
3
STEP 3
Slide gravity lock hooks over top
pole. Position as desired and
secure with vinyl bumpers.
ASSEMBLY INSTRUCTION PART NUMBER 5601019, Rev. 4
PAGE 1 OF 2
