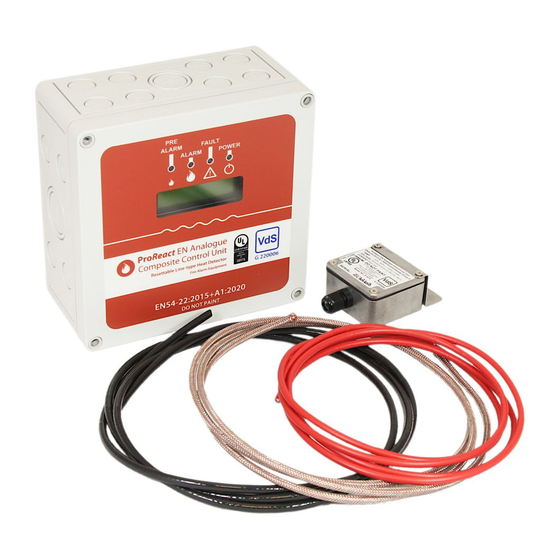

- Page 1 World leading linear detection ProReact EN Analogue Linear Heat Detection Sensor Cable Testing Instructions Linear Detection Technology Made Simple Page 1 of 8 Revision 1.0 Mar 2020 www.thermocable.com ProReact EN Analogue Cable Test Kit Instructions Document Ref. PACC-CTK...
- Page 2 Contents: ProReact EN Analogue Sensor Cable Test Kit Page 3 - Overview - Kit Contents - Technical Information Operating Instructions Page 6 Troubleshooting Page 8 Page 2 of 8 Revision 1.0 Mar 2020 ProReact EN Analogue Cable Test Kit Instructions...
- Page 3 ProReact EN Analogue Sensor Cable Test Kit Overview The ProReact EN Analogue Sensor Cable Test Kit provides users with a of the total sensor cable length, which should have been made accessible practical and safe method of verifying the operational performance of during the system design and installation as per the manufacturer’s...
- Page 4 Max. Output Current: Figure 1: Power supply unit rear Figure 2: Power supply unit front Figure 3: Power supply unit front panel Page 4 of 8 Revision 1.0 Mar 2020 ProReact EN Analogue Cable Test Kit Instructions Document Ref. PACC-CTK...
- Page 5 ProMinder Brown Cable for zone lengths between 175m - 500m 16.6 (each cable includes 5m cold lead with plug on for connecting to power supply unit) Page 5 of 8 Revision 1.0 Mar 2020 ProReact EN Analogue Cable Test Kit Instructions Document Ref. PACC-CTK...
- Page 6 Operating Instructions The ProReact EN Analogue Sensor Cable Test Kit can be used to carry out a functional test on a ProReact EN Analogue LHD system. The test kit is designed to heat up between 1% and 3% of the sensor cable, simulating a real fi re or overheat condition. A typical test setup is shown in Figure 4.
- Page 7 12. Where possible, it will aid testing of the ProReact EN Analogue system to reduce the chosen alarm temperature to the lowest setting for the purpose of the test.
- Page 8 Email: info@thermocable.com Call: +44 1274 882359 Thermocable (Flexible Elements) Ltd, www.thermocable.com Pasture Lane, Bradford, BD14 6LU United Kingdom Page 8 of 8 Revision 1.0 Mar 2020 ProReact EN Analogue Cable Test Kit Instructions Document Ref. PACC-CTK...
