Summary of Contents for Strom 720QA101

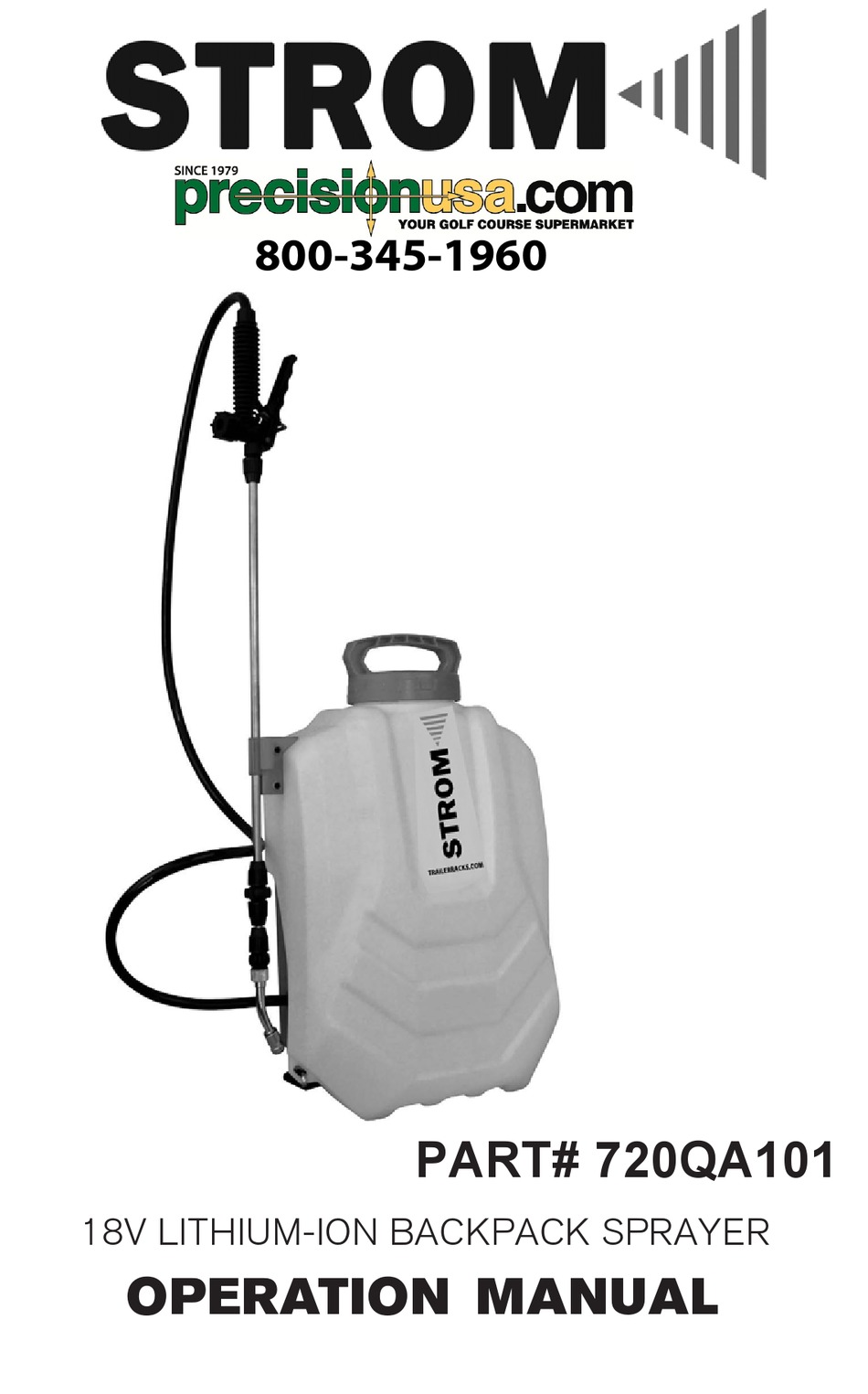

- Page 1 800-345-1960 PART# 720QA101 18V Lithium-ion BACKPACK sPrAyer operation manual...
- Page 4 PRODUCT SPECIFICATIONS Model No.: QA101 Input: 18V Battery type: Lithium-ion Lithium-ion battery capacity: 2600 Ah Charger input: Input 100/240volt 50/60Hz.032Amp. Output 21 volt DC 1.0 Amp. Tank capacity: 4 Gallons (15 Liters) QUALITY STATEMENT This product has been engineered and manufactured to our high standards for dependability, ease of operation, and operator safety.
- Page 5 PERSONAL SAFETY SAFETY PRECAUTIONS WARNING: Failure to read and follow all a) Stay alert, watch what you are doing safety warnings and all instructions may and use common sense when operating a powertool. Do not use a power tool while result in electric shock, fire and serious you are tired or under the influence of drugs, injury.
-
Page 6: Introduction And Installation
INTRODUCTION AND INSTALLATION Before using you must charge the battery (during storage it may have lost part of its load). To do this, plug the charger into a power outlet and connect it to the battery, the battery must be disconnected from the sprayer. Note that the charger indicator is green when it is plugged into the power outlet, and turns red when the battery has begun charging. -
Page 7: Maintenance
MAINTENANCE TANK Clean the sprayer after each use with clean water. Empty the tank completely. Never leave the sprayer products stored in the tank, hose or pump. FILTERS This machine has the following filters: Filling tank filter Output tank filter is located the inside the sprayer at the bottom of the tank and it can be removed for cleaning. - Page 8 IT IS RECOMMENDED TO RECHARGE THE BATTERY AFTER EACH WORKING DAY. Never recharge the battery in extreme temperatures, the charging temperature range is 32ºF to 104ºF. It is normal for the charger to warm up slightly during charging (red light). For extended periods of inactivity, you should remove the battery from the sprayer and store at half load in a dry and stable temperature (ideal range of 41ºF to 59ºF), Use only the charger supplied with this equipment, connected to a power socket AC...
-
Page 9: Security Considerations
MOTOR & PUMP The motor, the pump and the pressure switch are sensitive items subject to wear, they are integrated into a single module and need preventive maintenance to extend the lifespan. To keep the pump head in proper operating condition after each application, run the sprayer with clean water in open circuit for a few minutes. -
Page 10: Problems And Solutions
ProbLems aND soLUTIoNs ProbLem ProbabLe caUse soLUTIoN The motor does not work Low battery Recharge battery and red light signal is flashing red The motor does not work Pump motor short circuit Change pump and red light signal is flashing red Short circuit over motors output Check wiring cable... - Page 11 MAINTENANCE ATTENTION: Please keep the safety lock in the place when not in use to prevent from switching on unintentionally. Do not switch chemicals used in the garden sprayer without proper cleaning. Do not store liquids in the tank. Follow chemical manufacturer’s directions for storage and disposal.
