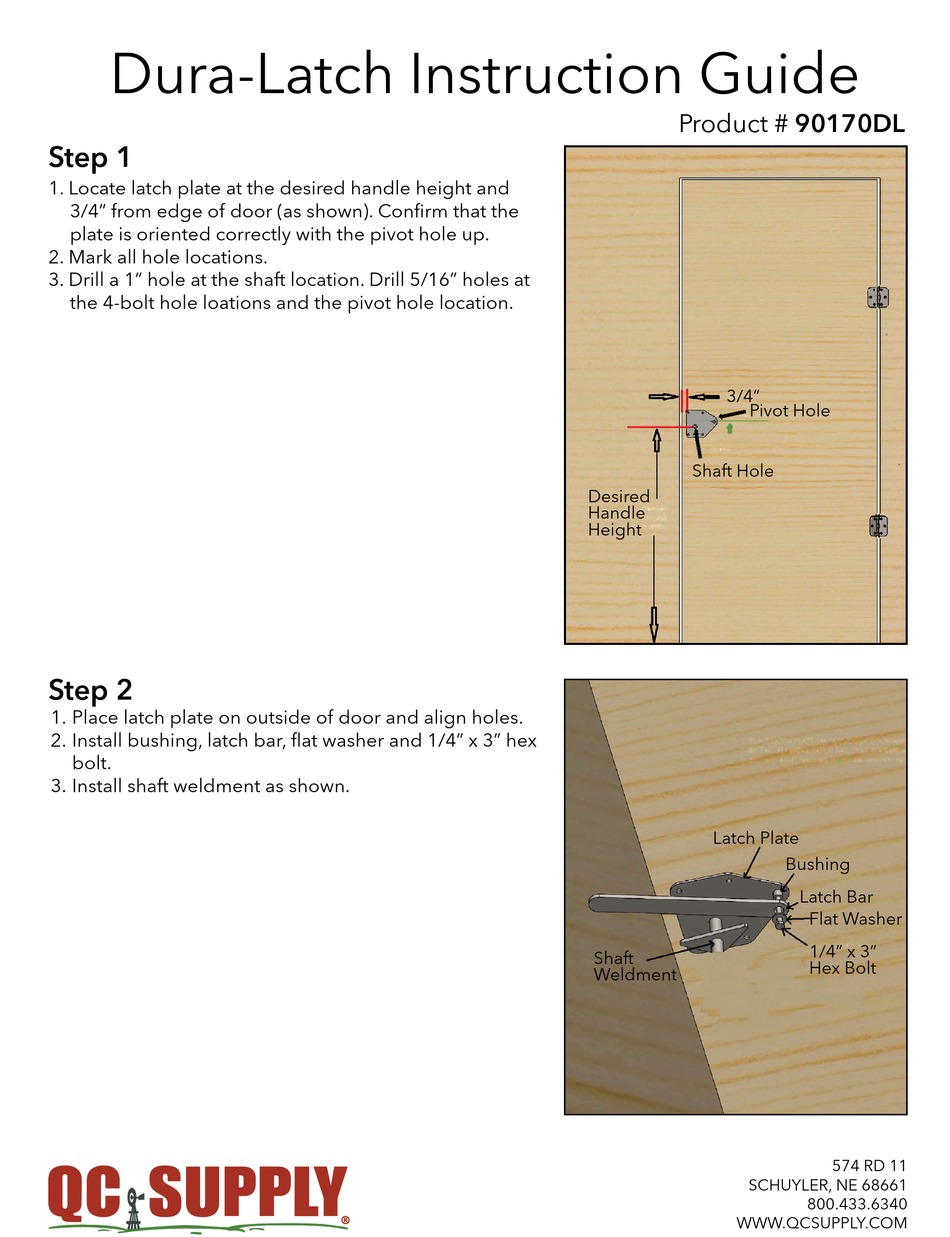

Dura-Latch Instruction Guide
Step 1
1. Locate latch plate at the desired handle height and
3/4" from edge of door (as shown). Confirm that the
plate is oriented correctly with the pivot hole up.
2. Mark all hole locations.
3. Drill a 1" hole at the shaft location. Drill 5/16" holes at
the 4-bolt hole loations and the pivot hole location.
Step 2
1. Place latch plate on outside of door and align holes.
2. Install bushing, latch bar, flat washer and 1/4" x 3" hex
bolt.
3. Install shaft weldment as shown.
Product # 90170DL
3/4"
Pivot Hole
u
..
,I),
D
o �..
Shaft Hole
Desired
Handle
Height
Latch Plate
Shaft
Weldment
SCHUYLER, NE 68661
WWW.QCSUPPLY.COM
I ...
- -
• •
- -
••
I
Bushing
Latch Bar
Flat Washer
1/4" x 3"
Hex Bolt
574 RD 11
800.433.6340
Advertisement
Table of Contents
Summary of Contents for QC Supply Dura-Latch
- Page 1 Dura-Latch Instruction Guide Product # 90170DL Step 1 1. Locate latch plate at the desired handle height and 3/4” from edge of door (as shown). Confirm that the plate is oriented correctly with the pivot hole up. 2. Mark all hole locations.
- Page 2 , Cont’d. Dura-Latch Instruction Guide Product # 90170DL Step 3 1. Install the cover plate and the four 1/4” x 3” carriage bolts as shown. Cover Plate 1/4” x 3” Carriage Bolt Step 4 1. On the inside of the door, install the flat washer and five nylon lock nuts.
- Page 3 , Cont’d. Dura-Latch Instruction Guide Product # 90170DL Step 5 1. With door closed, use a straight edge to line up the bottom of the latch with the latch hook and position it 3/4” from the edge of the opening.
