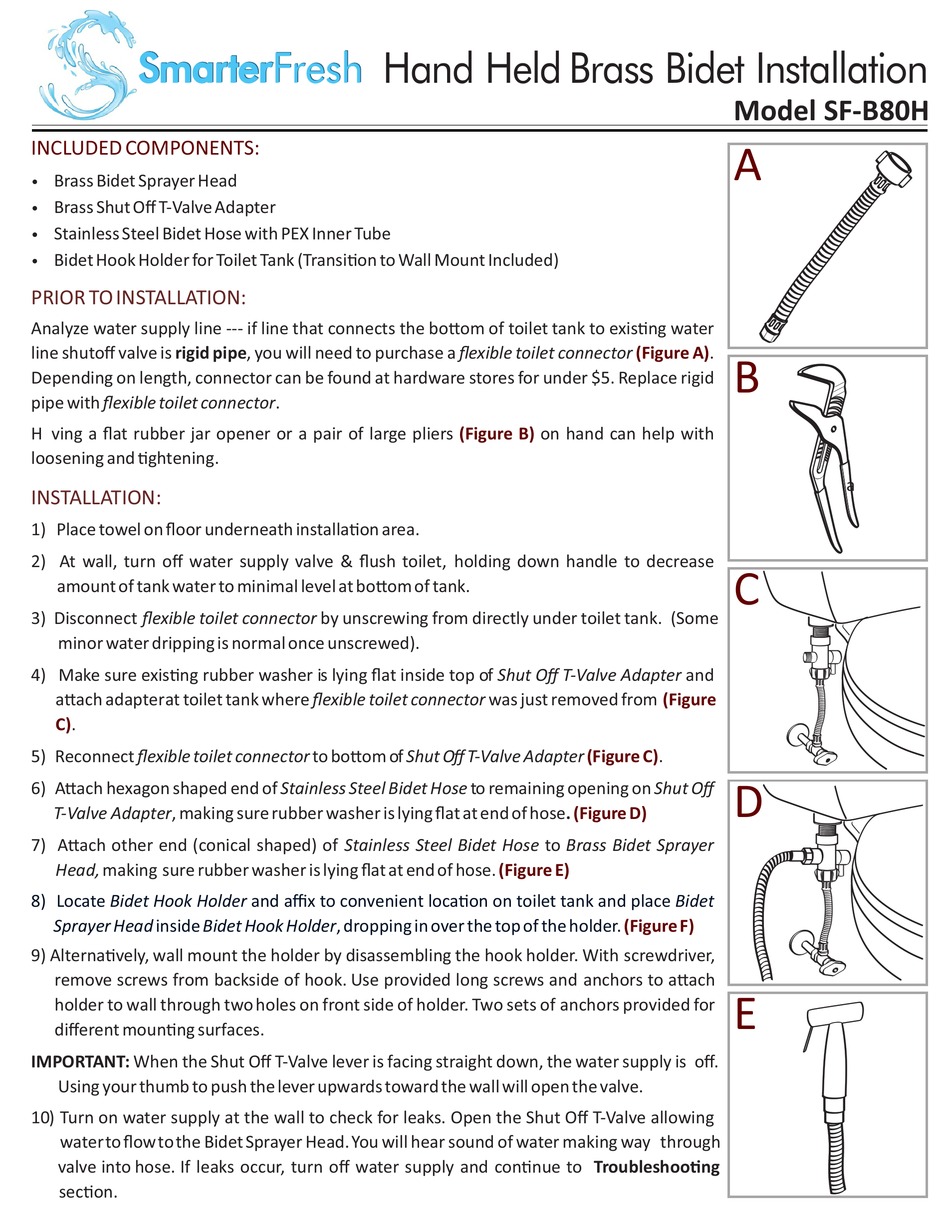

SMARTERFRESH SF-B80H Installation

INCLUDED COMPONENTS:

Brass Bidet Sprayer Head
Ÿ
Brass Shut Off T-Valve Adapter
Ÿ
Stainless Steel Bidet Hose with PEX Inner Tube
Ÿ
Bidet Hook Holder for Toilet Tank (Transi on to Wall Mount Included)
Ÿ

PRIOR TO INSTALLATION:

Analyze water supply line --- if line that connects the bo om of toilet tank to exis ng water
line shutoff valve is rigid pipe, you will need to purchase a flexible toilet connector
Depending on length, connector can be found at hardware stores for under $5. Replace rigid
pipe with flexible toilet connector.
H ving a flat rubber jar opener or a pair of large pliers
loosening and ghtening.

INSTALLATION:

1) Place towel on floor underneath installa on area.
2) At wall, turn off water supply valve & flush toilet, holding down handle to decrease
amount of tank water to minimal level at bo om of tank.
3) Disconnect flexible toilet connector by unscrewing from directly under toilet tank. (Some
minor water dripping is normal once unscrewed).
4) Make sure exis ng rubber washer is lying flat inside top of Shut Off T-Valve Adapter and
a ach adapter at toilet tank where flexible toilet connector was just removed from
C).
5) Reconnect flexible toilet connector to bo om of Shut Off T-Valve Adapter
6) A ach hexagon shaped end of Stainless Steel Bidet Hose to remaining opening on Shut Off
T-Valve Adapter, making sure rubber washer is lying flat at end of hose.
7) A ach other end (conical shaped) of Stainless Steel Bidet Hose to Brass Bidet Sprayer
Head, making sure rubber washer is lying flat at end of hose.
8) Locate Bidet Hook Holder and affix to convenient loca on on toilet tank and place Bidet
Sprayer Head inside Bidet Hook Holder, dropping in over the top of the holder.
9) Alterna vely, wall mount the holder by disassembling the hook holder. With screwdriver,
remove screws from backside of hook. Use provided long screws and anchors to a ach
holder to wall through two holes on front side of holder. Two sets of anchors provided for
different moun ng surfaces.
IMPORTANT: When the Shut Off T-Valve lever is facing straight down, the water supply is off.
Using your thumb to push the lever upwards toward the wall will open the valve.
10) Turn on water supply at the wall to check for leaks. Open the Shut Off T-Valve allowing
water to flow to the Bidet Sprayer Head. You will hear sound of water making way through
valve into hose. If leaks occur, turn off water supply and con nue to Troubleshoo ng
sec on.
Hand Held Brass Bidet Installation
(Figure B) on hand can help with
(Figure E)
Model SF-B80H
A
(Figure A) .
B
C
(Figure
(Figure C) .
D
(Figure D)
(Figure F)
E
a
