SOKA SRL SOMMERKAMP TS 624S Instruction Manual

24- channel 10 - watt mobile transceiver

Advertisement

Quick Links

®
MODEL TS 624S
24- CHANNEL 10 - WATT
MOBILE TRANSCEIVER
INSTRUCTION MANUAL
ВОКА SRL
CH-6911 CAM PIONE/^ LUGANO
VIA MATTEO 17 SWITZERLAND

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOMMERKAMP TS 624S and is the answer not in the manual?

Questions and answers

Summary of Contents for SOKA SRL SOMMERKAMP TS 624S

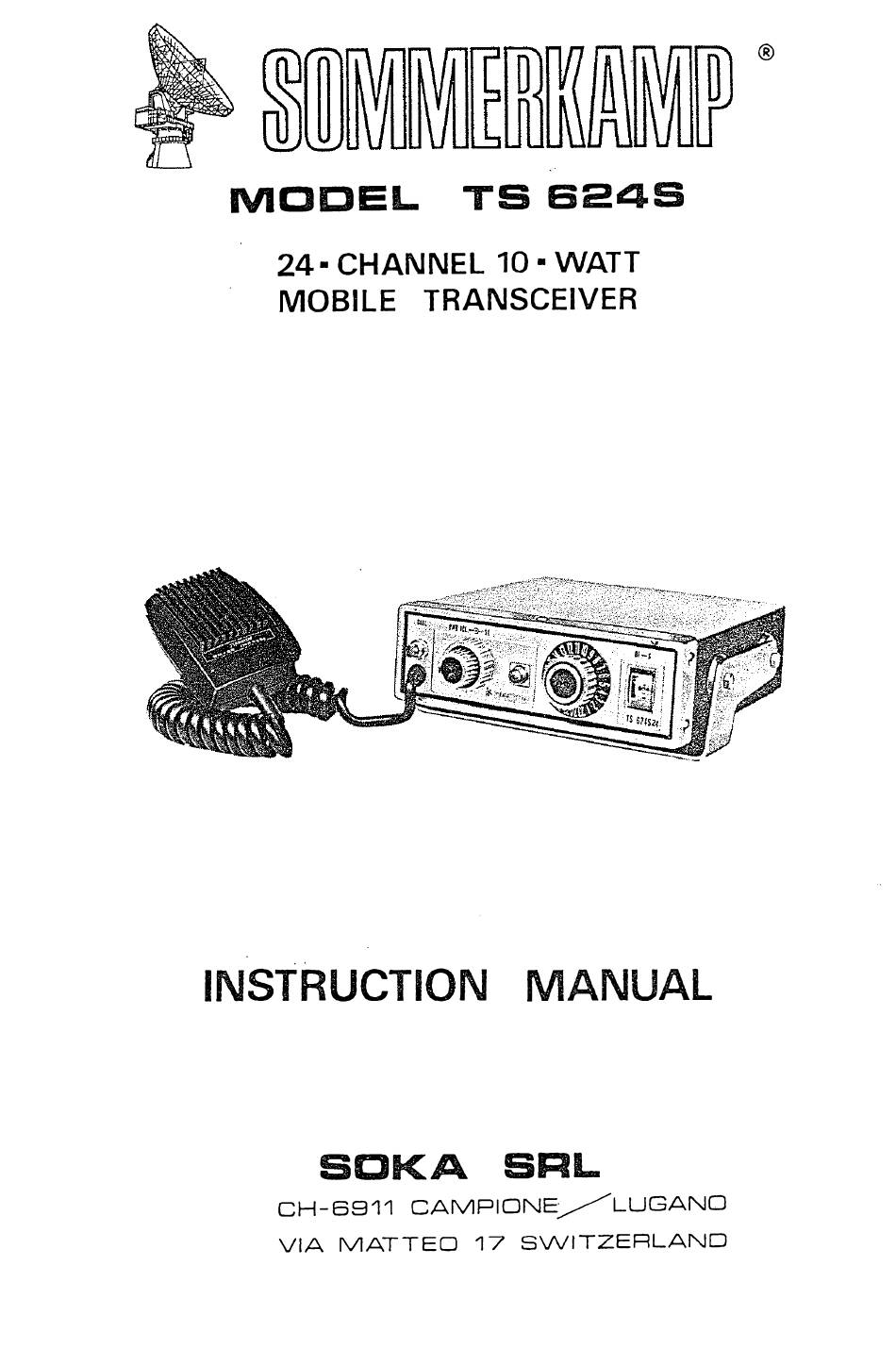

  • Page 1 ® MODEL TS 624S 24- CHANNEL 10 - WATT MOBILE TRANSCEIVER INSTRUCTION MANUAL ВОКА SRL CH-6911 CAM PIONE/^ LUGANO VIA MATTEO 17 SWITZERLAND...
  • Page 2: Installation

    INSTALLATION Mounting bracket and screws are supplied for mounting the transceiver underneath the dashboard. Microphone hanger and screws are also supplied. For electrical connection, first make sure that the transceiver is turned off. Connect the red wire to the ACC terminal of the ignition switch or + terminal o f battery and ground the black wire to the chassis of the vehicle.
  • Page 3 FIG. 2 c) The mounting bracket must be isolated from the chassis of the vehicle in such a manner as shown in Fig. 3. DASHBOARD INSULATED WASHER MTG. BRACKET INSULATED WASHER WASHER SCREW FIG. 3 ANTENNA Antenna is one of the most important factors to the operation with maximum efficiency.
  • Page 4 OPERATTNG INSTRUCTIONS The transceiver is ready, to operate when it is installed with an antenna properly connected. Note that the communication range differs depend- ing upon the environment where the transceiver is operated. You may reach 30 or 40 kilometers where no obstacle exists, but the range may be limited to 5 or 6 kilometers in cities where many high buildings disturbes the communication.
  • Page 5 List o f accessories: Mounting bracket ... Self-tapping screw for above Washer for above Hexagonal screw . Microphone h a n g e r ..................Screw for a b o v e ....................Plug for external s p e a k e r ................List o f channel frequencies: FREQUENCY FREQUENCY...
  • Page 7 RF POWER S METER CHANNEL SELECTOR CALL LAMP EXT. SP. PŁUG ANT CONNECTOR DC POWER...
