Summary of Contents for Orno OR-MT-JE-1801

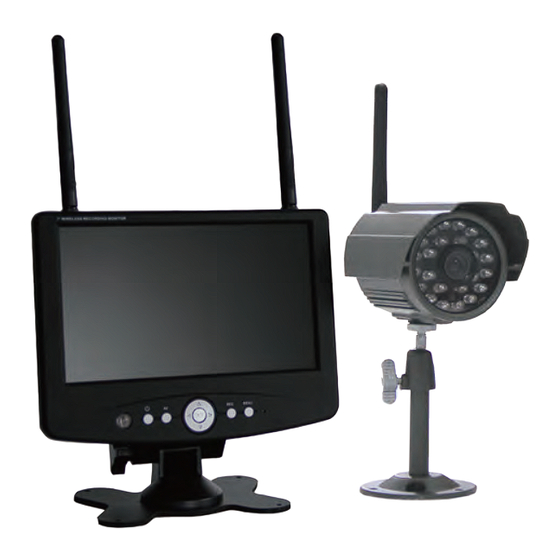

- Page 1 DIGITAL WIRELESS HD SECURITY SYSTEM USER S MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING YOUR SET. RETAIN IT FOR FUTURE REFERENCE. ENGLISH...
-
Page 2: Table Of Contents
USER S MANUAL CONTENTS 2. ACCESSORIES 4.1 Monitor Overview 4.2 Remote Control 4.3 Camera Overview OSD MENU READMAP . SYSTEM OPERATION 6.1 Camera Pairing 6.2 Live Display 6.2.1 Manual channel selection 6.2.2 Setup 6.3 Recording Mode 6.3.1 Manual recording mode 6.3.2 Schedule recording mode 6.3.3 Motion detection recording mode 6.4 Format SD Card... - Page 3 IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this aparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with manufacturer's instructions.
- Page 4 USER S MANUAL SAFETY INSTRUCTION Thank you for purchasing our product. Before operating this product, please read the instruction manual. 1. Unplug this product from the wall outlet before cleaning.Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 2.
- Page 5 USER S MANUAL CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN. This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product enclosure that may be of suffcient magnitude to constitute a risk of electric shock to persons . This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.
-
Page 6: Accessories
USER S MANUAL 1. INTRODUCTION 1.1 Outline Those are digital wireless HD security system which with DIY design and professional features to take care of you and your property. 1.2 Features MONITOR ■ MPEG4 compression, support VGA, two kinds of resolution ■... - Page 7 USER S MANUAL 3. SPECIFICATION MONITOR PARAMETER ITEM Display Screen 7"TFT LCD (16:9) 800(H)×RGB×480(V) Resolution System PAL/NTSC Video standard Language English, French, Italian, Spanish 2.400GHZ~2.483GHZ Frequency Range Wireless Video Up to150m line of sight Receiving range & audio input Receiving sensitivity -89dBm 4M mode Dev=1MHz 1ch CVBS 1.0Vp-p , impedance75Ω...
-
Page 8: Monitor Overview
USER S MANUAL 4. INSTALLATION GUIDELINE 4.1 Monitor Overview 4.1.1 Front controls (1) IR Sensor : Remote controller sensor. (2) MENU button: Press to enter or exit the Main-menu. (3) REC/STOP button: Press to enter or exit recording mode. Menu Rec Quad V-Out button: 1 2 3 4 5 6... -
Page 9: Remote Control
USER S MANUAL 4. INSTALLATION GUIDELINE 4.2 Remote Control Power Button: Power on/off the display screen. Button: single image view mode. CH1-CH4 Quad Button: Quad image view mode. Button: Press to enter or exit recoriding mode. REC/STOP Button: Press to output audio/video. When outputting audio and video, the LCD screen will be switched bo black. -
Page 10: Osd Menu Readmap
USER S MANUAL 5. OSD MENU READMAP Pairing Camera On/Off Camera Setting Camera Resolution Camera Brightness Date & Time Video Out Format Default Setting System Setting Alarm Upgrade Language Main Menu Network SD Card Info System Info Version Info Network Info Playback Record Mode Schedule Record... -
Page 11: System Operation
USER S MANUAL 6. SYSTEM OPERATION 6.1 Camera Pairing NOTE:It is highly recommended to pair the cameras to the receiver before Permanently mounting the cameras. Power on the receiver and camera by connecting it to power outlet with supplied power adaptor respectively. The pairing function assigns each camera to a different channel on the wireless receiver(up to 4 cameras),and is necesssary for configuring additional cameras. -
Page 12: Live Display
USER S MANUAL 6. SYSTEM OPERATION 6.2 Live Display 6.2.1 Manual channel selection “ ” Press button to view each channel(CH1~CH4) individually in SINGLE mode. cam 1 cam 2 cam 3 cam 4 “ ” When 4 camearas all turn on Press QUAD button to view 4 QUAD, 4 channel display togethe ，... -
Page 13: Recording Mode
USER S MANUAL 6. SYSTEM OPERATION 6.3 Recording Mode he system is designed for SD card recording. You can manually, scheduled record the video. efore recording, you need to insert a SD card to the SD card slot. The system can support the ize of up to 64 G SD card. -
Page 14: Motion Detection Recording Mode
USER S MANUAL 6. SYSTEM OPERATION 6.3.3 Motion Detection Recording Mode “ ” “ Enter Record Setting menu, then set the Motion detection” activity In this mode the receiver starts recording when motion detected by any activated came cam 1 cam 2 cam 3 cam 4... -
Page 15: Playback Operation
USER S MANUAL 6. SYSTEM OPERATION 6.5 Playback Operation 6.5.1 Select the file* “ ” (1) Press button to enter VIDEO interface. ▲ “ ” (2) Press button to select the desired folder. “ ” (3) Press button to enter file list. ▲... -
Page 16: Remote View Via Mobile Phone
USER S MANUAL 6. SYSTEM OPERATION 6.7 Remote View via Mobile Phone 1.Connect the machine to network cable from wireless router. 2.On the OSD, "Menu-> system setting -> network", select Dynamic IP. 3.Download the app "P2PCamLive" in android market or app store on your mobile phone. 4.Connect your mobile phone to the wireless router's AP. -
Page 17: Trouble Shooting
USER S MANUAL 7. TROUBLE SHOOTING If you have problems with the system, there is often a quick and simple solution. Please try the following: Problem Solution 1. Check all connections to the camera. Make sure the adaptor is plugged in. No picture from a camera 2. - Page 18 The material in this document is the intellectual property of our department . No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without our department prior written permission. Our products are under continual improvement and we reserve the right to make changes without notice.
