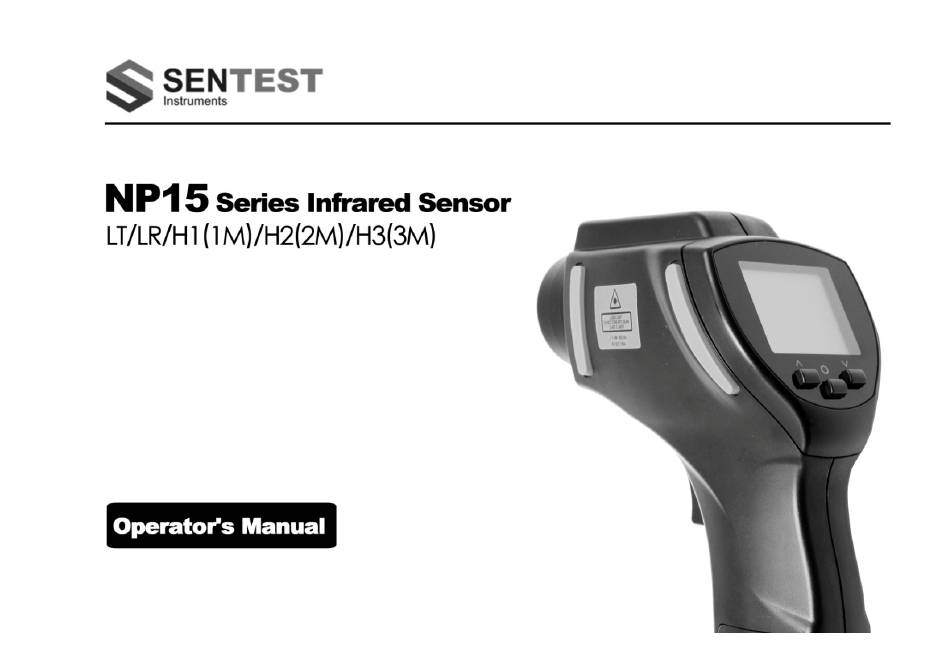

Summary of Contents for Sentest NP15 Series
-
Page 2: Table Of Contents
Table of Contents Section Page Section Page 1 Introduction-------------------------- 3 4 Software------------------------------ 11 1.1 User Interface-------------------- 3 4.1 System Requirements------------ 11 1.2 Display--------------------------- 3 4.2 Installation and Connection----- 11 1.3 External Functions---------- -----4 4.3 Starting the Software------------ 12 2 Measurement------------------------ 4 4.4 Download Logger Data---------- 12 2.1 Basic Operation------------------ 4 5 Specifications------------------------ 13... -
Page 3: Introduction
Introduction Thank you for choosing the NP15 infrared thermometer. Read the manual carefully before the initial start-up. The producer reserves the right to change the herein described specifications in case of technical advance of the product. 1.1 User Interface A: LCD backlight B: Laser symbol C: Max/Min D: High/Low alarm... -
Page 4: External Functions
1.3 External Functions 1. Laser/Optics 2. Trigger 3. Battery Compartment 4. LCD Display 5. T/C Input 6. USB Port Measurement 2.1 Basic Operation Turn On: Press the trigger to turn on the unit and enter [Measurement mode]. Measuring: Aiming at a target, pull the trigger and keep it pressed. The display will show the current temperature value. -
Page 5: Hold Function
2.3 Hold-Function If you release the trigger, the unit enters to [HOLD mode]. The display will retain its last measurement for 7 seconds, with the [HOLD] symbol appearing on the bottom left corner of the display. The unit automatically switches off after this time if no button is pressed. -
Page 6: Emissivity
Release the trigger to enter to the [HOLD mode]. Each time you press the MODE button [ ○ ], the unit will switch to next function interface in turn as follows. With the UP [ ∧ ] and DOWN [ ∨ ] buttons you can change parameters or activate/ deactivate functions. -
Page 7: Max/ Min/ Tc Probe
Max/ Min/ TC Probe In [HOLD mode], press the MODE button[ ○ ] repeatedly until enter into the Min/Max/TC probe mode. Press the UP [ ∧ ] /DOWN[ ∨ ] button to setup which mode you want. MIN/MAX indicates the minimum/maximum value of current measurement. - Page 8 After pressing MODE button again, the High Alarm value can be adjusted using the UP [ ∧ ]or DOWN [ ∨ ]. To save the setting, press the MODE button [ ○ ] again (will also switch to the Low Alarm function). Low Alarm In [HOLD mode], press the MODE button [ ○...
-
Page 9: Temperature Unit
Temperature Unit Press the MODE button [ ○ ] enter to the temperature unit mode, and press the UP [ ∧ ] or DOWN [ ∨ ] button to toggle between °C and °F measurements. Press the MODE button [ ○ ] again (will also switch to the Offset function). Offset In [HOLD mode], press the MODE button [ ○... -
Page 10: Data Logger
Data Logger The NP15 has an internal data logger for 2,000 points. Storing Data Press the trigger to turn on the unit and then release the trigger to enter to [HOLD mode], and press the DOWN [ ∨ ] button, there will be a number #; MAX/disk icon appear above the current temperature result. The number # indicate the memory position. -
Page 11: Software
Software The STonline software is specially developed for SENTEST infrared thermometers. Users can setup the unit; download the logger data and recording temperature curve through the software. System Requirements - Operation system:XP, Vista or Win 7/8/10 - Hard disc with at least 30 MByte free space... -
Page 12: Starting The Software
2) Starting the measurement Please press the menu: [Measurement (M)\ Start] 3) Scaling of the temperature axis In the menu item settings [Diagram (A)] Global Auto Scaling: the temperature range of the diagram is automatically adapted to the respective peak values. Local Auto Scaling: the temperature range of the diagram will be dynamically adapted to the respective peak values. -
Page 13: Specifications
Specification Model NＰ１５ＬＴ NＰ１５ＬR NＰ１５Ｈ１ NＰ１５Ｈ２ NＰ１５Ｈ３ 600ºC～1600ºC Temperature Range -30ºC～900ºC -30ºC～1300ºC 300ºC～1300ºC 100ºC～600ºC Optics Resolution (90%) 60:1 (SF) / 75:1 (CF) 120 : 1 300 : 1 300 : 1 140:1 / 120:1 (FF) Spectral Response 8～14μm 8～14μm 1μm 1.6μm 2.3μm Response Time (95%) -
Page 14: Optical Charts
If the failure results from misuse, neglect, accident, or abnormal conditions of operation or storage, the user has to pay for the repair. In that case you may ask for a cost estimate beforehand. SENTEST Instruments Corporation Ltd. Tel：+886-2-2579-5079 Fax：+886-2-2579-5297 www.sentest.com...
