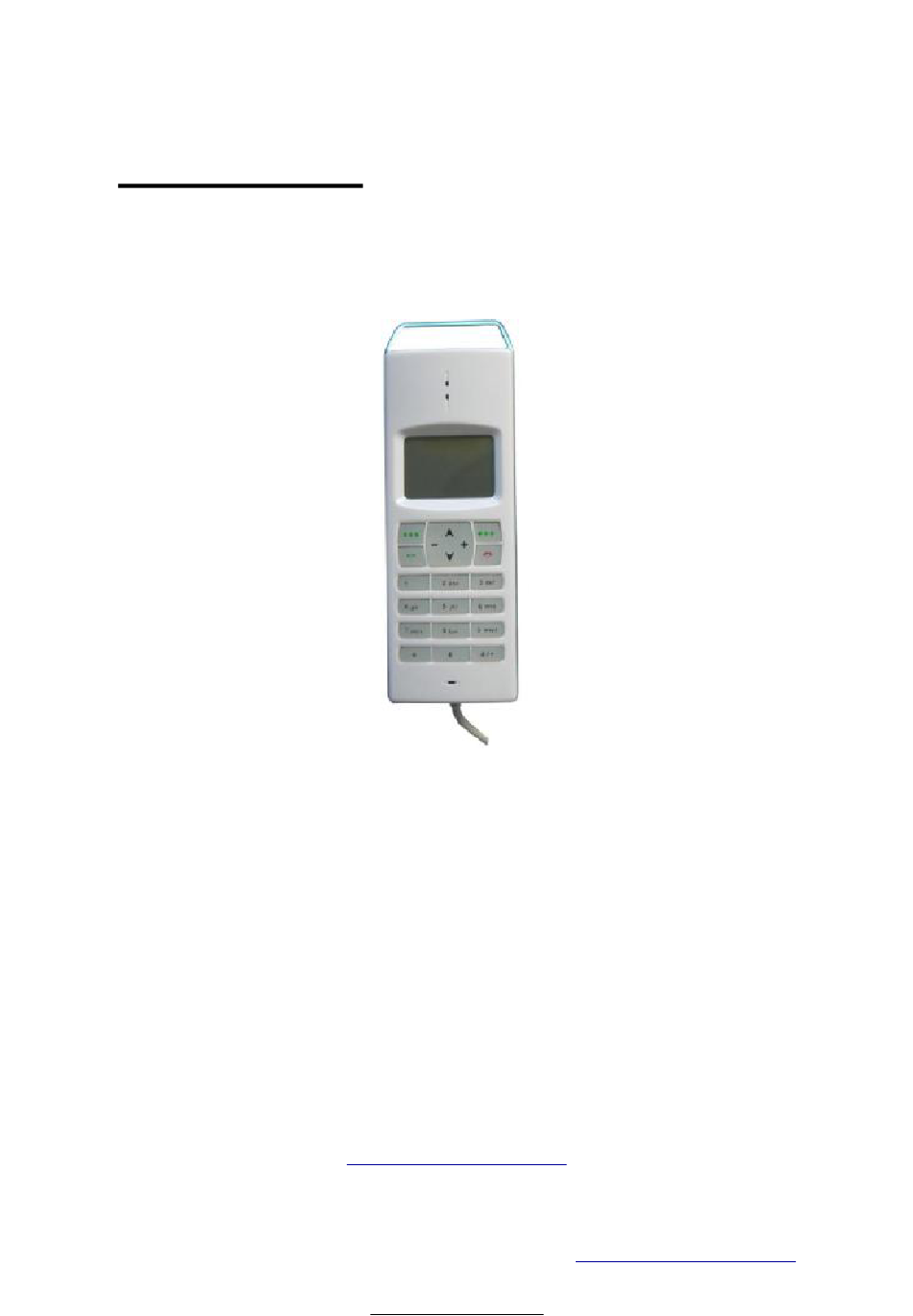

User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD)
User's Manual
USB VOIP Phone
SC-UPH214
Model No.
l Make/receive free VOIP calls globally
l PC-to-PC, PC-to-Phone operation
l Complies with H.323, MGCP, SIP protocol, clear sound voice
l Completely compatible with multi calling platforms (e.g. Skype,
VoipButser, VoipStunt, VoipCheap, and etc.) Handset for MSN, QQ,
Yahoo!Message or any other voice communication plateform to talk
on internet.
l LCM display ,operation by directly pressing panel keys instead of PC
mouse and keyboard
l Operation is similar to traditional mobile phone.
SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD
http://www.usb-china.com
1
Website:
www.usb-china.com
http://www.usb-china.com
Advertisement
Table of Contents
Summary of Contents for Shenzhen Superchampion Technology SC-UPH214
- Page 1 User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) User's Manual USB VOIP Phone SC-UPH214 Model No. l Make/receive free VOIP calls globally l PC-to-PC, PC-to-Phone operation l Complies with H.323, MGCP, SIP protocol, clear sound voice l Completely compatible with multi calling platforms (e.g. Skype, VoipButser, VoipStunt, VoipCheap, and etc.) Handset for MSN, QQ,...
-
Page 2: Table Of Contents
User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) CONTENTS CHAPTER 1 Introduction in Brief · Summary · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·... -
Page 3: Features
User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) CHAPTER 1 Introduction in Brief Thanks for chosen our SC-UPH214 USB Phone, this is a multifunctional USB Phone, it will assist you with communicating worldwide. 1.1 Summary SC-UPH214 USB Phone is a most effective and easy operating for communication. User can enjoy a VOIP phone just as regular PSTN phone. -
Page 4: System Requirements
User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) reduction, Full duplex communication Incoming call ringing, easy for answering. With several rings for choosing Compact appearance design suitable for notebook. Powered via the USB port with not need for a power adaptor. Operations are similar to traditional phone. - Page 5 User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) 3. Do not use USB Phone near water. 4. Place the USB Phone securely on a desk surface. Serious damage may result if it falls. 5. Do not place objects on the USB Phone cord. Install the USB Phone where no one can step or trip on the cord.
-
Page 6: Voip Phone (Softphone) Software
User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) CHAPTER 2 Preparation for using USB Phone SC-UPH214 2.1 VOIP Phone (Softphone) software USB Phone supports the several types of VOIP Phone software, SC-UPH214 such as Skype,VoipButser,VoipStunt,VoipCheap, VoipDiscount,SparVoip,Internetcalls and NetAppel .You... -
Page 7: Connect Sc-Uph214 Usb Phone To Pc
User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) 2. After the installation has finished, you can open Skype at any time by clicking the icon on your desktop or in your system tray. You need your user account to login Skype, if you haven’t a Skype account, you can click “Don’t have a Skype Name?”... - Page 8 Phone display: Fig.2-6 Everything is OK, you can use you USB Phone now! If the icon shown as , your USB Phone display: Fig.2-7 This means your SC-UPH214 USB Phone has not connected with Skype correctly, your Skype http://www.usb-china.com Website: www.usb-china.com...
- Page 9 User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) hasn’t run or hasn’t logged in, or you didn’t allow USB PHONE-Tool to use Skype (see also Fig.2-4), please run Skype , login first and select “allow this program to Skype”..
- Page 10 User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) 2.3.3 Update the USB Phone-Tool （This function is temporarily closed） Please remember to update the USB phone driver regularly. You can follow this guideline and choose “Check for Update”: here:, Right click the icon Fig.2-10...
-
Page 11: Call Another Skype User (Pc To Pc)
3.1Call another Skype user (PC to PC) Confirm of the Skype user is online, or you couldn’t connect with him communicating, and SC-UPH214 USB Phone will display: "user is offline", two methods for you to dialing. 3.1.1 .Dialing from the menu 1.Press the UP/DOWN key (the key... -
Page 12: Skypeout (Pc To Phone)
User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) Fig.3-2 Assign Speed-Dial for Skype Users 3.Input number and call out: Press digital “5” “5” keys on USB Phone, this number will be display on Skype window and USB Phone LCM, then press RECEIVE/DIAL key on USB Phone to call out. -
Page 13: Answer Or End A Call
2. pressing the key “0” for more than 2 secondswould input the symbol “+”; 3.3 Answer or end a call SC-UPH214 USB Phone is ringing while someone call your Skype, you can press RECEIVE/DIAL key to answer the call, Fig.3-4... - Page 14 1.You can promptly adjust volume by pressing the two keys “+ VOL –” on the left side of SC-UPH214 USB Phone and the “MUTE” key on the right side (especially,while you are dialing). 2.When SC-UPH214 USB Phone is in standby mode as following: Fig.3-9 Standby Mode...
-
Page 15: Checking Call Records And Voicemail
FUNCTION/Cancel key to back or press HANG TELEPHONE/CANCEL key cancel. 3.5 Checking Call records and VoiceMail You can check you call log in SC-UPH214 USB Phone directly, press the FUNCTION/Cancel the screen display: Fig.3-11 Press the UP/DOWN key (the key... -
Page 16: Lcm Icons Instructions
User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) 1. Press this key to end or refuse a call; Hang Delete the iuput number or letters; Telephone/No/Cancel Minimize Skype window on PC screen. Back to standby mode. 1. Adjust the options of SC-UPH214 USB Phone;... -
Page 17: Faq
Checked Box 3.8 FAQ Question 1 Why is the voice played from the PC’s sound card instead of the SC-UPH214 USB phone when I make/answer a call? Possible Solution: Open the Main window of Skype, click on “Tools->Options”, and go to the table “Sound Device”, set “Audio In”, “Audio Out”... - Page 18 User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) Fig.3-13 Question 3 Skype has been startup, but the icon of USB PHONE-Tool still shown as Possible Solution: Maybe you selected the wrong item, you can execute “Tools->Options-> Privacy->...
- Page 19 User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) Question 4 How can I use my SC-UPH214 USB phone as a handset for MSN, QQ or any other software for Internet vioce communication? Possible Solution: When using as handset for QQ 、 MSN 、 Yahoo! or any other voice communication software to talk on internet, you should set SC-UPH214USB Phone (appeared as “USB Audio Device”...
- Page 20 User's Manual for SC-UPH214 USB VOIP Phone (SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD) Humidity condition 5~95%RH without coagulate dew SHENZHEN SUPERCHAMPION TECHNOLOGY CO.,LTD Room530, Gongyi Building, Zhenhua Rd., Shenzhen city, Guangdong, China Tel.:+86 755 88850627 +86 755 83266062 e-mail: sales@usb-china.com Website: http://www.usb-china.com http://www.usb-china.com...
