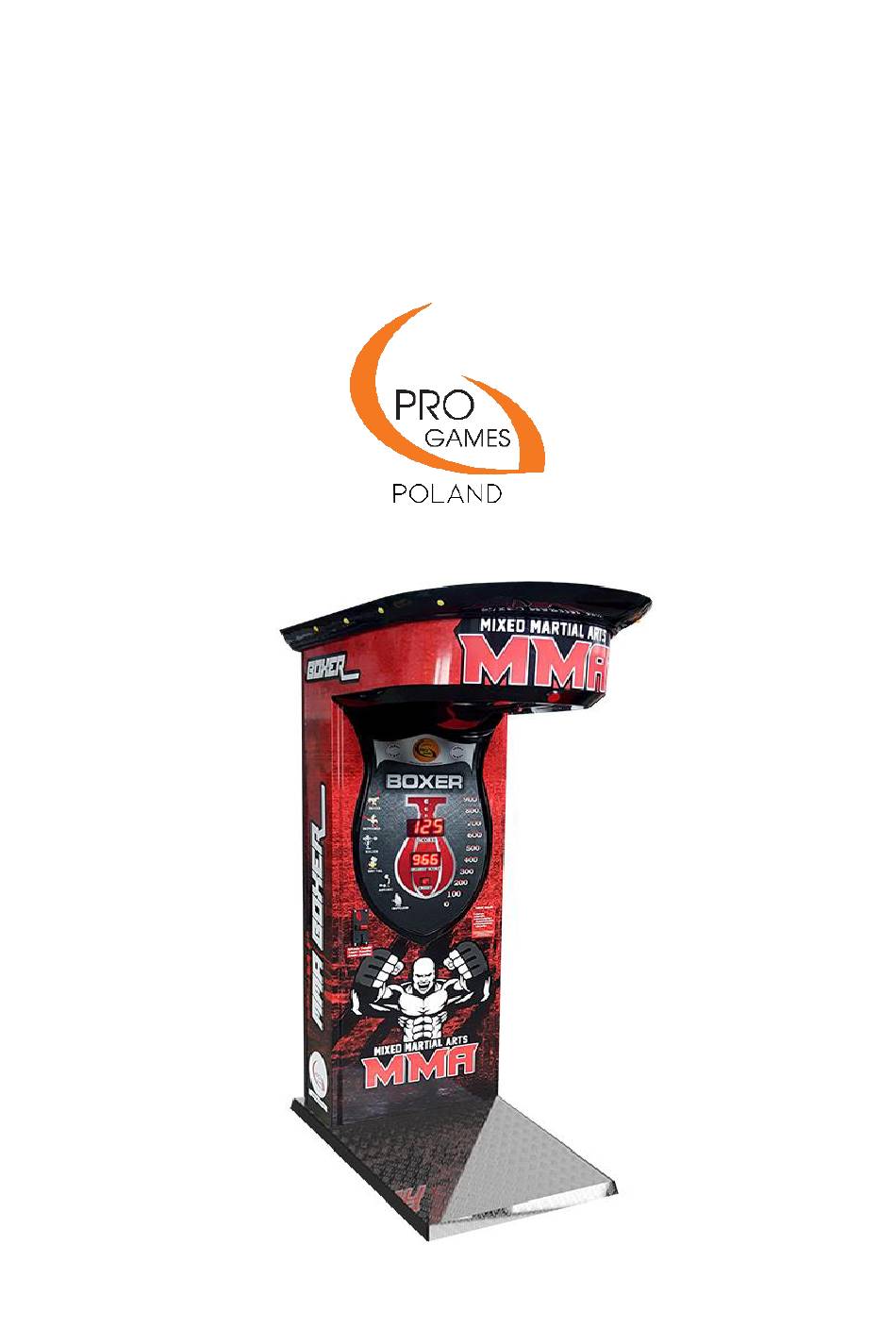

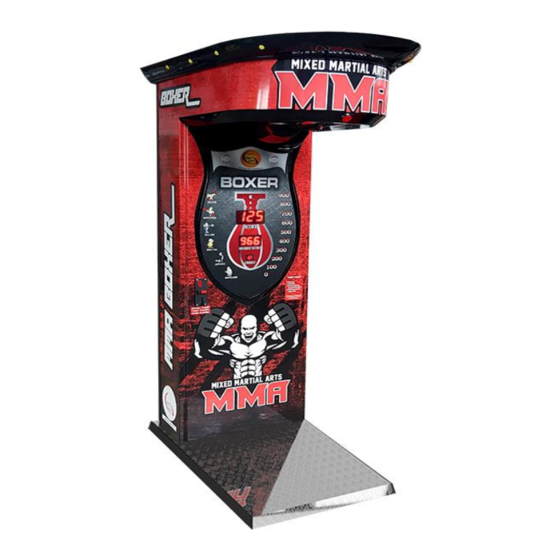

Summary of Contents for Pro Games BOXER MACHINE
- Page 1 BOXER MACHINE MANUAL...
-
Page 2: Table Of Contents
Table of Contents: 1. Mainboard explanation 2. Setup mode activation 3. Setup mode coordination 4. All settings available 5. Technical parameters 6. Guarantee terms 7. Guarantee certificate... - Page 3 MAINBOARD...
-
Page 4: Setup Mode Activation
SETUP MODE ACTIVATION 1. Switch off machine 2. Switch on and immediately click „SETUP” button on mainboard* 3. You are now in setup mode (you should also hear „BELL SOUND” as confirmation. *Another possibility to go into setup mode is to click at the same time „SETUP”... -
Page 5: Setup Mode Coordination
HOW TO OPERATE IN SETUP MODE... - Page 6 IMPORTANT NOTE! Before you move to next pages, here is what you need to know before you change any of settings. 1. To move in setup mode between channels you using SETUP button. (moving from channel 1 up to channel 30) 2.
- Page 7 SETTINGS OF BOXER MACHINE...
- Page 8 CHANNEL 1 - 4 SETTING OF COIN ACCEPTOR COIN VALUE ( ex. 1 euro) How many credits should give CHANNEL NUMBER *Machine on the picture showing: 1 euro (for example) = 1 credit...
- Page 9 CHANNEL 5-8 SETTING OF BILL ACCEPTOR *Machine on the picture showing: 10 euro (for example) = 20 credits...
- Page 10 CHANNEL 20 FREE PLAY MODE 1 – FREE PLAY ON 0 – FREE PLAY OFF...
-
Page 11: All Settings Available
ALL AVAILABLE SETTINGS Channel number Description Display 1 Display 2 Channel of coin Value of coin How many credits acceptor. machine should award Channel of bill Value of bill How many credits acceptor machine should award Setting time of Time from 5 minutes presentation to 60 minutes. -
Page 12: Technical Parameters
Technical parameters Height: 215 cm Width: 70 cm Depth: 110 cm Weight: 120 kg Power supply: 220-240 V Power consumption: 90 W ATENTTION! All metal parts are connected together and the machine must be plugged into the socket with ground terminal AC 230 V 50 Hz. - Page 13 PROGAMES company guarantees efficient operation of the device in conformity with technical operation data included in the manual. Guarantee period : 1 year from the date of sale. The guarantee will be respected only if the damaged device will be delivered (presented) to the service together with the guarantee certificate and description of damage.
-
Page 14: Guarantee Certificate
GUARANTEE CERTIFICATE Name of device:………………………………………………. Serial number:………………………………………………… PCB number:…………………………………………………. Customer name:……………………………………………… Order Proforma/Invoice no.:………………………………… Sale date:……………………………………………………… Stamp and signature of ProGames Poland:...
