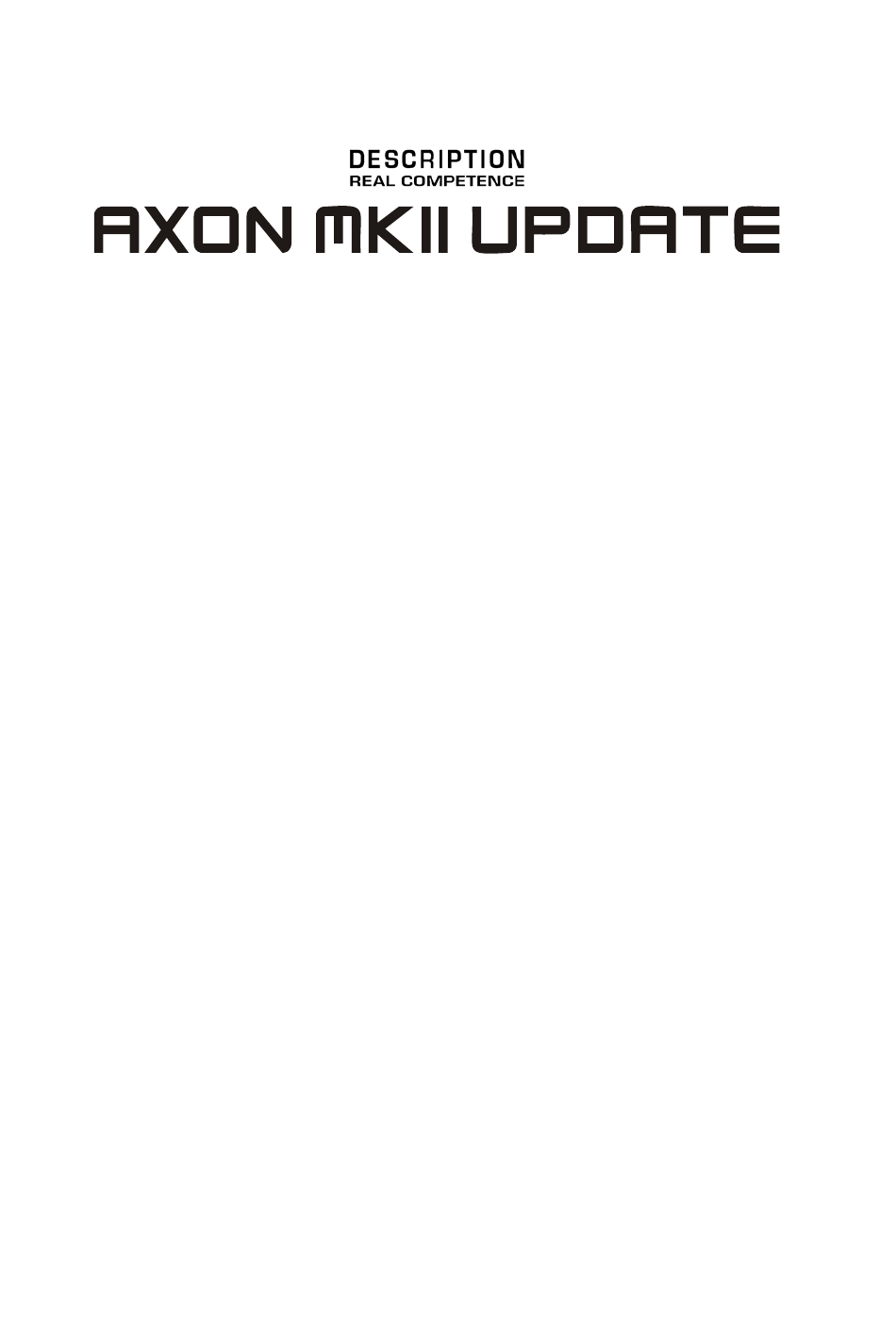

- Page 1 TERRATEC PRODUCER/AXON AX 100 mkII Update English Manual Version 1.0, status: August 05...
- Page 2 CE Declaration TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany hereby declare that the product: AXON mkII Update, to which this declaration refers is in compliance with the following standards or standardiz- ing documents: EN 55013, EN 55020 The following are the stipulated operating and environmental conditions for said compli- ance: residential, business and commercial environments and small-company environments.
-
Page 3: Scope Of Delivery
Scope of delivery Start by making sure that nothing is missing. The AXON AX 100 mkII Update package should contain the following items: EPROM WAVE XTABLE sound board CD with Editor software... - Page 4 4. Open the housing by removing the 10 screws of the cover with a screwdriver. Place them someplace where they a) will be easy to find, and b) cannot fall into the open AXON AX 100 mkII Update (English)
- Page 5 Do not lever one side out completely before starting on the other. Doing so would risk doing irreparable damage to the delicate pins of the chip or its socket. AXON AX 100 mkII Update (English)
- Page 6 Please ensure that the notch on the EPROM matches the notch on the socket and that all of the pins are correctly posi- tioned on their openings. (Also see the illustration under item 10.) AXON AX 100 mkII Update (English)
- Page 7 EPROM's pins—it's very easy to bend or even break them off, which would amount to the destruction of the EPROM. 10. Finished? Then things should look exactly like this. Please note how the notch of the EPROM matches that of the socket. AXON AX 100 mkII Update (English)
- Page 8 12. Next, place the board with the socket on the mating double row of contact pins. Be sure that the pins and sockets are aligned before pressing the board home. AXON AX 100 mkII Update (English)
- Page 9 16. You can also take the wrist strap off now—it's not all that fashionable, after all. For further information on using the new features, please see the AXON AX 100 mkII manual on the included CD. AXON AX 100 mkII Update (English)
