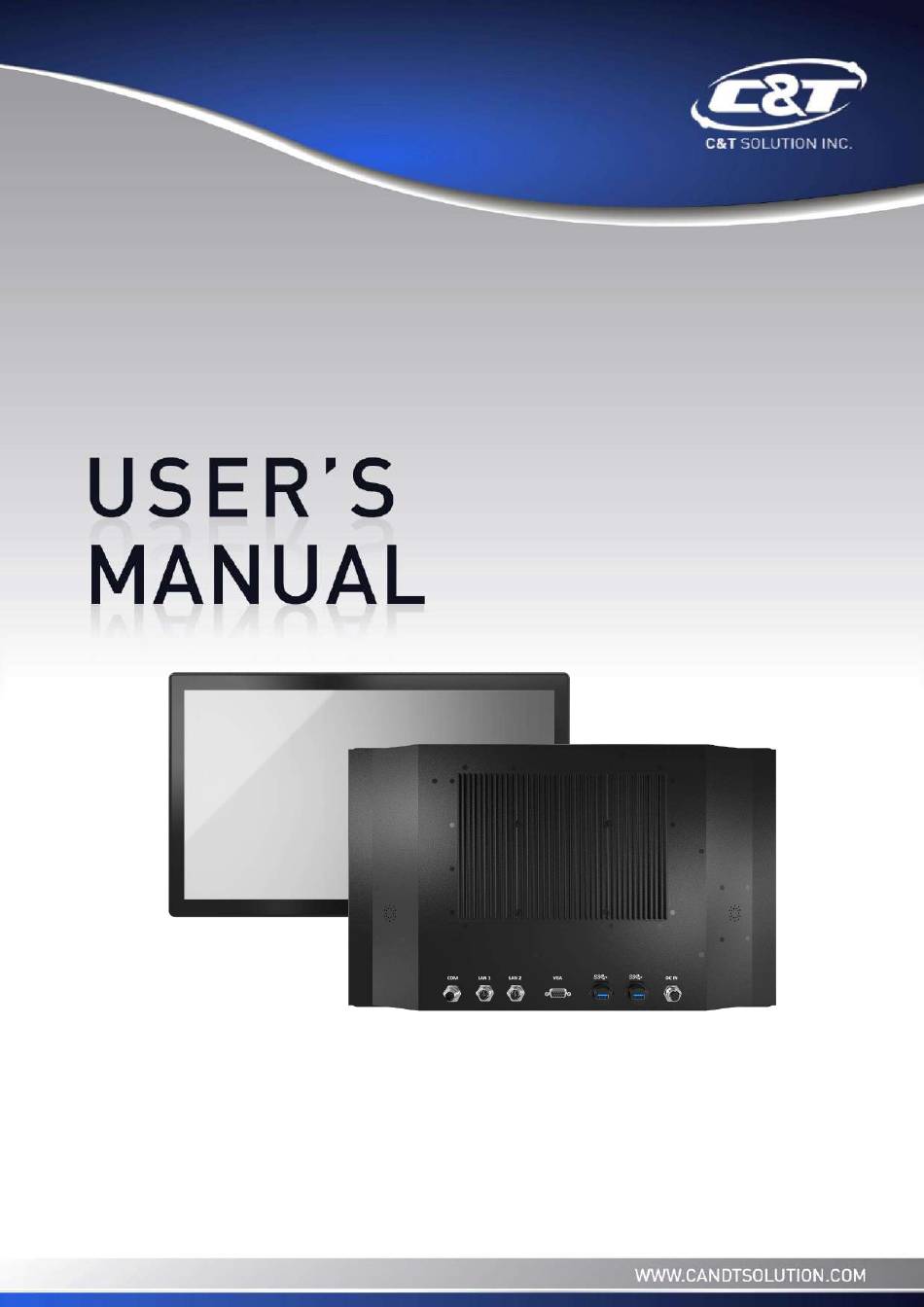

- Page 1 WIO-W221C Industrial Panel PCs...
-
Page 2: Table Of Contents
l User’s Manual WIO-W221C Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………... - Page 3 l User’s Manual WIO-W221C 4.3.3 Trusted Computing ……………….………………………….…………………………... 34 4.3.4 ACPI Settings ……………….………..………………..……………..……....34 4.3.5 Super IO Configuration ……………….………..……….…………..……....35 4.3.6 Hardware Monitor ……………….………..…………………..……....... 36 4.3.7 Serial Port Console Redirection ………………..………………..……....37 4.3.8 Stack Configuration ……………….……..…..…………………..……………………... 37 4.3.9 CSM Configuration .……………….………..………………………..…………..……... 38 4.3.10 USB Configuration .……………….………..…………………….……………..……...
-
Page 4: Prefaces
l User’s Manual Preface WIO-W221C Prefaces Revision Revision Description Date Manual Released 2020/07/15 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of C&T Solution Inc. -
Page 5: Safety Precautions
Preface l User’s Manual WIO-W221C Safety Precautions Before installing and using the equipment, please read the following precautions: Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. The power outlet shall be installed near the equipment and shall be easily accessible. ... -
Page 6: Technical Support And Assistance
l User’s Manual Preface WIO-W221C Technical Support and Assistance 1. Visit the C&T Solution Inc website at www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. -
Page 7: Package Contents
l User’s Manual Preface WIO-W221C Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty WIO-W221 Series Waterproof Panel PC Utility DVD Driver Waterproof Connector Cover Set 120W Power Adapter with mating 1.5M Waterproof M12 Cable Ordering Information Model No. -
Page 8: Chapter 1 Product Introductions
Chapter 1 Product Introductions... -
Page 9: Overview
l User’s Manual Chapter 1: Product Introductions WIO-W221C 1.1 Overview The WIO series full system IP66 waterproof Panel PC features a certified IP66 waterproof and dustproof anti-corrosion enclosure and secure lockable M12 connectors to protect against ingress of high temperature and high pressure water. It's wide operating temperature is ideal for freezing and hot weather conditions. -
Page 10: Hardware Specification
l User’s Manual Chapter 1: Product Introductions WIO-W221C 1.2 Hardware Specification Display Operating System • LCD Size 21.5" (16:9) • Windows : Windows 10 • Max. Resolution 1920 x 1080 • Linux : Linux kernel 4.X • Brightness (cd/m2) 300 •... -
Page 11: System I/O
l User’s Manual Chapter 1: Product Introductions WIO-W221C 1.3 System I/O 1.3.1 Rear Panel DC IN LAN port Used to plug a DC power input with M12 Power Used to connect the system to a local area connector network COM port Used to connect an analog VGA monitor COM support RS232/422/485 serial device USB 3.0 port... -
Page 12: Mechanical Dimension
l User’s Manual Chapter 1: Product Introductions WIO-W221C 1.4 Mechanical Dimensions Unit: mm... -
Page 13: Chapter 2 Switches And Connectors
Chapter 2 Switches and Connectors... -
Page 14: Switch And Connector Locations
l User’s Manual Chapter 2: Switches and Connectors WIO-W221C 2.1 Switch and Connector Locations 2.1.1 Top View... -
Page 15: Bottom View
l User’s Manual Chapter 2: Switches and Connectors WIO-W221C 2.1.2 Bottom View... -
Page 16: Connector / Switch Definition
l User’s Manual Chapter 2: Switches and Connectors WIO-W221C 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition AT_ATX2 AT / ATX Power Mode Switch CLR_CMOS1 Clear BIOS Switch CAR_PWR2 PC / Car Mode Switch DELAY_TIME2 Car mode PC turn off delay time CFAST1_2 CFast Socket... -
Page 17: Switches Definitions
l User’s Manual Chapter 2: Switches and Connectors WIO-W221C 2.3 Switches Definitions AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Right) ATX Power Mode（Default） 2-3 (Left) AT Power Mode CLR_CMOS1: Clear BIOS Switch Switch Definition Normal Status (Default) Clear BIOS CAR_PWR2: PC / Car Mode Switch Switch... - Page 18 l User’s Manual Chapter 2: Switches and Connectors WIO-W221C Step of Setting Power Ignition Step 1: To select power ignition by PC/CAR switch. Step 2: To configure the power off delay time, please check the Delay Time Setting Options in advance.
-
Page 19: Connectors Definitions
l User’s Manual Chapter 2: Switches and Connectors WIO-W221C 2.4 Connectors Definitions CFAST1_2: CFast Socket Definition Definition Definition PC10 SATA_TXP1 PC11 SATA_TXN1 PC12 PC13 +3.3V SATA_RXN1 PC14 +3.3V SATA_RXP1 PC15 PC16 PC17 USB3.0 Connector, Type A Definition Definition USB3_RX+ USB2_D- USB2_D+ USB3_TX- USB3_TX+... - Page 20 l User’s Manual Chapter 2: Switches and Connectors WIO-W221C SIM1, SIM2: SIM Card Socket Definition Definition UIM_PWR UIM_VPP UIM_RESET UIM_DATA UIM_CLK COM: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DATA-...
- Page 21 l User’s Manual Chapter 2: Switches and Connectors WIO-W221C COM: RS232 / RS422 / RS485 Connector Connector Type: 2X5 10-pin box header, 2.54mm pitch RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DATA- DATA+ DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN...
- Page 22 l User’s Manual Chapter 2: Switches and Connectors WIO-W221C LAN1, LAN2: RJ45 with LEDs Port Definition Definition LAN1_MDI0P LAN1_MDI2N LAN1_MDI0N LAN1_MDI1N LAN1_MDI1P LAN1_MDI3P LAN1_MDI2P LAN1_MDI3N Definition Definition LAN2_MDI0P LAN2_MDI2N LAN2_MDI0N LAN2_MDI1N LAN2_MDI1P LAN2_MDI3P LAN2_MDI2P LAN2_MDI3N Link LED Status Definition Act LED Status Definition Steady Orange 1Gbps Network Link...
-
Page 23: Chapter 3 Front Panel Controls
Chapter 3 Front Panel Controls... -
Page 24: Users Controls
l User’s Manual Chapter 3: Panel Controls WIO-W221C 3.1 Users Controls POWER DECREASE LED MENU INCREASE AUTO 3.1.1 Power Button Turns the monitor on or off. 3.1.2 1. Blue indicates power on. 2. Yellow indicates HDD access status. 3.1.3 MENU / Enter Button Press to view the OSD menu. -
Page 25: Osd Operation
l User’s Manual Chapter 3: Front Panel Controls WIO-W221C 3.2 OSD Operation 3.2.1 Luminance ■ Brightness Adjust the luminance level of the screen. ■ Contrast Adjusts the contrast level of the screen. ■ Gamma This item allows you to on or off the Gamma function. ■... -
Page 26: Picture
l User’s Manual Chapter 3: Front Panel Controls WIO-W221C 3.2.2 Picture ■ Phase Adjust the monitor internal signal phase. ■ Clock Adjust the monitor internal sampling clock rate. ■ H. Position Adjusts the position of the screen image left and right. ■... -
Page 27: Setup
l User’s Manual Chapter 3: Front Panel Controls WIO-W221C 3.2.5 Setup ■ Language Selects the language in which the OSD menu is displayed. The factory default is English. ■ Mute Allows the user to turn the Mute On or Off. ■... -
Page 28: Chapter 4 Bios Setup
Chapter 4 BIOS Setup... -
Page 29: Bios Introduction
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.1 BIOS Introduction The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del> immediately allows you to enter the setup screens. -
Page 30: Main Setup
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.2 Main Setup Press <Del> to enter BIOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu. ■... -
Page 31: Advanced Setup
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.3 Advanced Setup... -
Page 32: Cpu Configuration
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.3.1 CPU Configuration ■ Intel Virtualization Technology Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple Virtual systems. ■... -
Page 33: Sata And Rst Configuration
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.3.2 SATA and RST Configuration ■ SATA Controller(s) Enable or disable Serial ATA controller. ■ SATA Mode Selection This item allows users to select mode of SATA controller. ■ Serial ATA Port 1 This item allows users to enable or disable Serial ATA Port 1. -
Page 34: Trusted Computing
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.3.3 Trusted Computing ■ Security Device Support Enable or disable Security Device Support. 4.3.4 ACPI Settings ■ Enable ACPI Auto Configuration Enable or disable ACPI Auto Configuration. -
Page 35: Super Io Configuration
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.3.5 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1 Configuration Serial Port This item allows you to enable or disable serial port. -
Page 36: Hardware Monitor
l User’s Manual Chapter 4: BIOS Setup WIO-W221C ■ Serial Port 2 Configuration Serial Port This item allows you to enable or disable serial port. Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ... -
Page 37: Serial Port Console Redirection
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.3.7 Serial Port Console Redirection ■ Console Redirection These items allows you to enable or disable COM1 console redirection. 4.3.8 Stack Configuration... -
Page 38: Csm Configuration
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.3.9 CSM Configuration ■ CSM Support This item allows users to enable or disable for “CSM Support”. ■ GateA20 Active This item allows users to set Upon Request or Always for "GateA20 Active“. ■... -
Page 39: Usb Configuration
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.3.10 USB Configuration ■ Legacy USB Support Allows USB keyboard/ mouse to be used in MS-DOS. ■ XHCI Hand-off Determines whether to enable XHCI (USB3.0) Hand-off feature for an operating system without XHCI (USB3.0) Hand-off support. ■... -
Page 40: Chipset
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 System Agent (SA) Configuration ■ VT-d This item allows users to enable or disable VT-d. - Page 41 l User’s Manual Chapter 4: BIOS Setup WIO-W221C ■ Graphic Configuration GTT Size This item allows you to change the GTT size. Aperture Size Aperture size optimal between 128MB, 256MB, 512MB, 1024MB or 2048MB. DVMT Pre-Allocated DVMT pre-allocated (fixed) Graphics memory size optimal from 0M to 60M. ...
-
Page 42: Pch-Io Configuration
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.4.2 PCH-IO Configuration This section allows you to configure the chipset. ■ PCI Express Configuration... - Page 43 l User’s Manual Chapter 4: BIOS Setup WIO-W221C PCI Express Root Port 6 / 10 / 11 PCI Express Port 6 / 10 / 11 This item allows you to enable or disable PCI Express Port 6 / 10 / 11 in the chipset. ...
- Page 44 l User’s Manual Chapter 4: BIOS Setup WIO-W221C ■ HD Audio Configuration HD Audio Control detection of the HD-Audio device. This item allows you to select <Enabled>, <Disabled> or <Auto>. Disabled: Azalia will be unconditionally be disabled. Enabled: Azalia will be unconditionally be enabled. Auto: Azalia will be enabled if present, disabled otherwise.
-
Page 45: Security
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.5 Security Security menu allow users to change administrator password and user password settings. ■ Administrator Password This item allows you to set Administrator Password. ■ User Password This item allows you to set User Password. -
Page 46: Boot
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.6 Boot This menu allows you to setup the system boot options. ■ Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. ■ Bootup NumLock State This item selects the keyboard NumLock state. -
Page 47: Save & Exit
l User’s Manual Chapter 4: BIOS Setup WIO-W221C 4.7 Save & Exit This setting allows users to configure the boot settings. ■ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes. -
Page 48: Appendix Wdt & Gpio
Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output). -
Page 49: Wdt Sample Code
l User’s Manual Appendix – WDT & GPIO WIO-W221C WDT Sample Code // IO Address 0xA16 is time value // IO Address 0xA15 is WDT enable and configuration Example, Set 0xA16=-0x03, 0xA15=0x31, it will reset after 3 seconds #define TimePort 0xA16 #define TimeEnablePort 0xA15 WriteByte (TimePort,0x03) -
Page 50: Gpio Sample Code
l User’s Manual Appendix – WDT & GPIO WIO-W221C GPIO Sample Code GPI 1 ~ GPI 8 GPI 1 GPI 2 GPI 3 GPI 4 GPI 5 GPI 6 GPI 7 GPI 8 IO Address 0xA03h 0xA03h 0xA03h 0xA03h 0xA06h 0xA06h 0xA06h... - Page 51 l User’s Manual Appendix – WDT & GPIO WIO-W221C Sample Code: #1 : // Get GPI 1 status //Get GPI 0 Pin Status Register printf("Input port value = %x\n", ReadByte(GPI1to4_ADDR)); // bit4 = GPI 1 status // Get GPI 5 status //Get GPI 0 Pin Status Register printf("Input port value = %x\n", ReadByte(GPI_REG5to8));...
- Page 52 Copyright © C&T Solution Inc. All Rights Reserved www.candtsolution.com...
