SWIT Electronics S-2210D User Manual

On-camera LED Light S-2210D/S-2210C
Ver:V1.0.0V00
Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference.

Features

1 44pcs of ultra bright LEDs, 50,000hrs long life time
◆
S -2210D: Constant 5600K color temperature, Max
◆
luminance: 700Lux@1meter;
S -2210C: 3200K - 5600K continuously adjustable,
◆
Max luminance: 350Lux@1meter;
1 0%-100% flick-free dimming
◆
6 V-17V wide voltage input, support D-tap cable
◆
power, standard DV battery and special slim battery;
H eat-free technology and constant current circuit
◆
design ensure consistent, stable, and accurate light
output in various environments;
◆ M ultiple joint the lights to use;
◆ D esigned for professional ENG recording,
videography and photography.
Caution
1. Never disassemble the light or touch its inside with
metal objects to avoid damage.
2. When powering through DC-IN socket, please make
sure the power supply's voltage and power meet the
light input requirements.
3. Please do take off the battery when power cable is
connected.
4. Never block the louvers; otherwise LED lighting
effect and lifetime will be greatly reduced
5. It is recommended using SWIT battery to avoid
malfunction.
6. Only use the light in the temperature range of
-10 ~40 .
℃ ℃

Specification

MODEL S-2210D
LED 144pcs of ultra bright LEDs
Luminance 700Lux/m
Beam angle
Color 5600K with
temperature 3200K filter
Power
Input voltage
Dimension 134(W)×36(H)×81(D)mm
Weight
Cold shoe ball head, Diffuser, 3200K
Accessory
filter (only S-2210D), Portable bag
USER MANUAL
SWIT Electronics Co., Ltd.
S-2210C
3200K:350Lux/m
5600K:350Lux/m
60°
3200K-5600K
continuous
9W
DC 6V-17V
Approx.210g

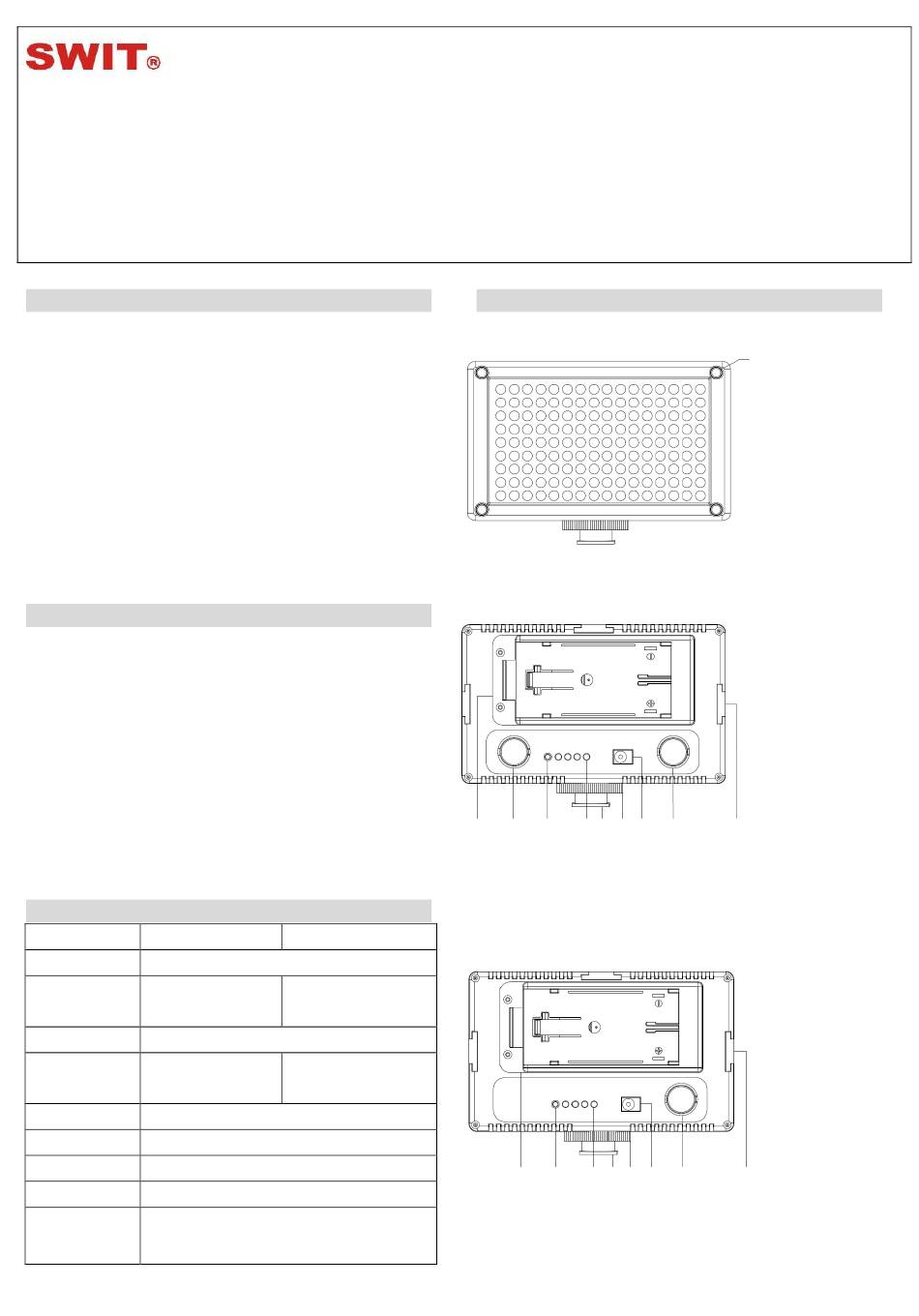

Front and rear view
Front view:
Rear view: (S-2210C)
1 2 3 4 5 6 7
Rear view: (S-2210D)
1 2 3 4 5 6 7
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
1. Magnet
1. DV battery plate
(Optional purchase)
2. Color temperature
adjusting knob
3. Power check
4. Power indicators
5. Cold shoe with
1/4" thread
6. Fasten knob
7. DC input socket
8. On/Off/dimmer
9. Joint slot
8 9
1. DV battery plate
(Optional purchase)
2. Power check
3. Power indicators
4. Cold shoe with
1/4" thread
5. Fasten knob
6. DC input socket
7. On/Off/dimmer
8. Joint slot
8
