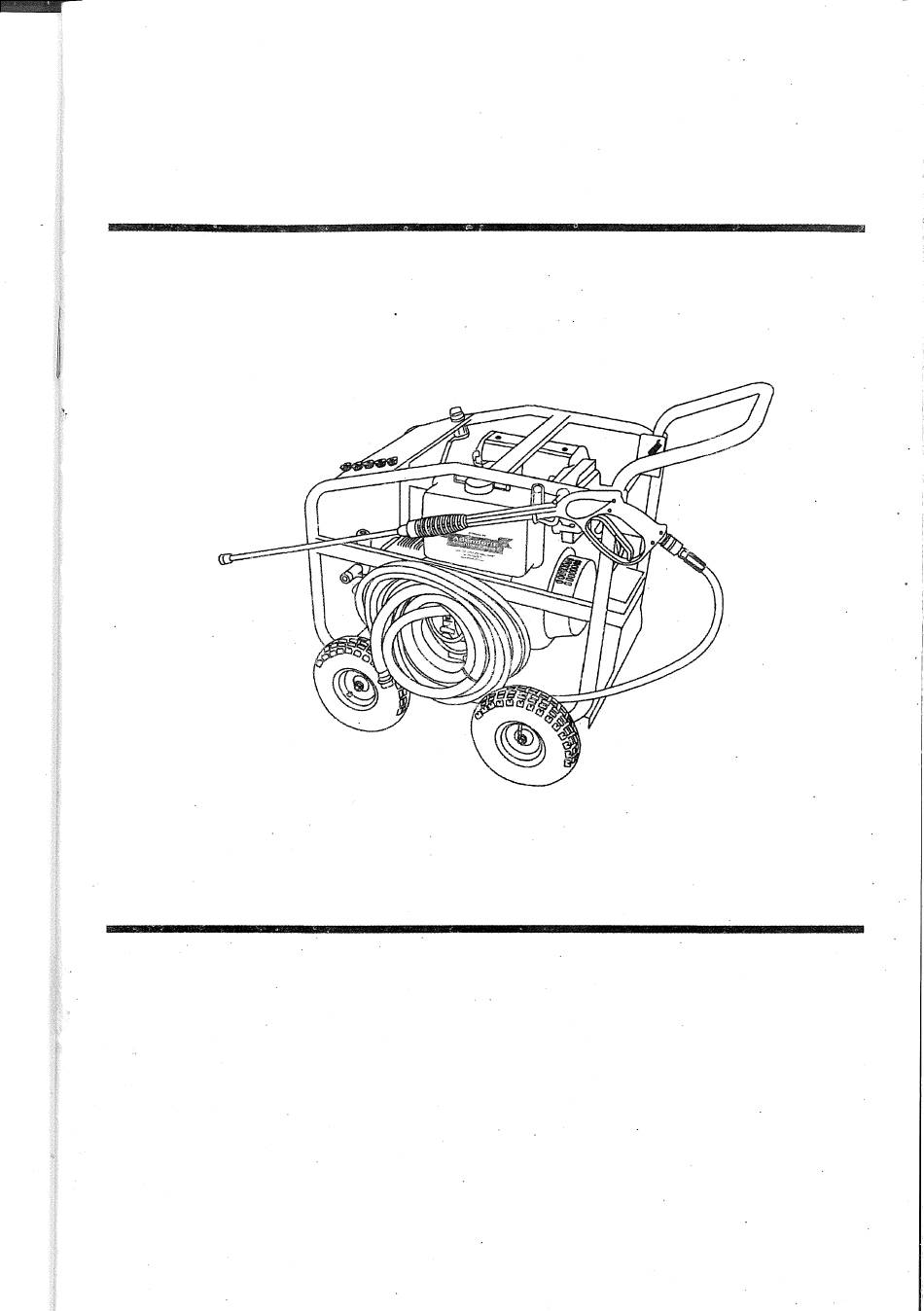

Power washer
Operation Manual
Pressure Washer
IMPORTANT
Please make certain that the p_ e rson who is to use this equipment
carefully resds and understands these i n structions before operating.
WARNING: Do not use the appliance without reading the ins. t ruction sheet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCLEAN-360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADENDORFF HCLEAN-360

  • Page 1 Power washer Operation Manual Pressure Washer IMPORTANT Please make certain that the p_ e rson who is to use this equipment carefully resds and understands these i n structions before operating. WARNING: Do not use the appliance without reading the ins. t ruction sheet...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY GUIDELINE/DEFINITIONS ................2 CONSUMER SAFETY INFORMATION ............... 2 IMPORTANT SAFETY INSTRUCTION ............3 CONSUMER GENERAL AND SERVICE WARRANTY ........8 CARTON CONTENTS ................8 ASSEMBLY INSTRUCTIONS ................. 9 OPERATING INSTRUCTIONS ........

  • Page 3: Safety Guideline/Definitions

    SAFETY GUIDELINE S / DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these sections.
  • Page 4 READ AND SAVE THESE INSTRUCTIONS HAZARD DANGER RISK OF EXPLOSION OR FIRE WHAT CAN HAPPEN HOW TO PREVENT Shut off engine and allow it to cool before Spilled diesel and it's vapors can become adding fuel to the tank. ignited from cigarette sparks, electrical arcing, Use care in filling tank to avoid spilling fuel.
  • Page 5 HAZARD DANGER RISK TO BREATHING WHAT CAN HAPPEN HOW TO PREVENT IT Exhaust gas is poisonous, do not Operate pressure washer in a well ventilated area. operate in unventilated room Do not Avoid enclosed areas such as garages, basements, etc. refuel when operating.
  • Page 6 HAZARD DANGER RISK OF FLUID INJECTION H O W T O P R E V ENT I T W H AT C AN HA PP EN Your washer operates at fluid pressures Never place hands in front of nozzle. and velocities high enough to penetrate Direct spray away from self and others. , human and animal flesh, which could result Make sure hose and fittings are tightened and in I in amputation or other serious injury.
  • Page 7 HAZARD DANGER RISK OF UNSAFE OPERATION HOW TO PREVENT IT WHAT CAN HAPPEN Do not use chlorine bleach or any other corrosive compound. Become familiar with the operation and controls of the pressure washer. WARNING: High pressure jets can be dangerous if subject to misuse.
  • Page 8 HAZARD WARNING RISK OF ELECTRICAL SHOCK HOW TO PREVENT IT WHAT CAN HAPPEN Spray directed at electrical outlets or switches, Unplug any electrically operated product or objects connected to an electrical circuit, before attempting to clean it. Direct spray could result in a fatal electrical shock away from electric outlets and switches.

  • Page 9: Consumer General And Service Warranty

    CONSUMER GENERAL AND SERVICE INFORMATION • Congratulations! You have purchased a high quality pressure washers. This pressure washer, when properly used and maintained, will provide trouble-free service. Please read and follow these instructions for proper use and maintenance. All sales of pressure washers are final. Do not return this product to the retailer. •...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS...
  • Page 11 Attach high pressure hose to gun, Tighten securely. Connect spray wand to gun, Tighten securely. Assemble grommet kit and quick-connect nozzles as described in the instructions supplied. Add engine oil (supplied) to engine.Refer to engine owners muanual supplied by engine manufacturer for correct proceaure.

  • Page 12: Operating Instructions

    OPERA TING INSTRUCTIONS READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Engine Quick connect nozzles Quick connect gUn wand High pressure hose...
  • Page 13 engine. Engine speed lever: Controls engine speed. Starter Grip: Pulling starter grip operates recoil starter to crank engine. Fuel Valve Lever: Opens/closes connection between fuel tank and injection pump. Engine Switch: starting the engine system. PRESSURE WASHER TERMINOLOGY PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used for air pressure, hydraulic pressure, etc.
  • Page 14 less the pressure will be on the surface to be cleaned. CAUTION DO NOT attempt to increase pump pressure. A higher pressure setting than the factory set pressure may damage pump. Reduce the speed of the diesel engine (RPM). Slow the engine down and the water pressure will go down with it.
  • Page 15 WARNING Risk of injection or injury to person. Do not direct discharge stream toward persons, unprotected skin, eyes, or any pets or animals. Serious injury can occur. CAUTION DO NOT attempt to change nozzles while pressure washer is running. Tum engine off before changing nozzles. Pull quick connect coupler back and insert nozzle.
  • Page 16 ° nozzle - Red. This nozzle delivers a pinpoint stream and is extremely powerful. It covers a very small area of cleaning. This nozzle should only be used on surfaces that can withstand this high pressure such as metal or concrete. Do not use on wood.
  • Page 17 HOW TO APPLY CHEMICALS AND CLEANING SOL VENTS Applying chemicals or cleaning solvents is a low pressure operation. r-.JOTE: Use only soaps and chemicals designed for pressure washer use. Do not use bleach. Apply chemicals: 1. Press chemical hose onto barbed fitting located near high pressure hose on of pump as shown.
  • Page 18 READ AND UNDERSTAND ALL WARNINGS BEFORE STARTING UNIT DANGER When using the high pressure setting. DO NOT allow the high pressure spray to come in contact with unprotected skin, eyes, or with any pets or animals. Serious injury can occur. Your washer operates at fluid pressures and velocities high enough to penetrate human and animal flesh, which could result in amputation or other serious injury.
  • Page 19 Verify the filter screen is in water inlet of pump. NOTE: Cone side faces out Connect water source to pump inlet. Water Inlet NOTE: Water source must provide a minimum of 19 Litre per F;i[e,� minute at 0.14x106 Pa Connect high pressure hose to pump outlet. If applying a chemical or cleaning solution, see How To Apply Chemicals/Cleaning Solvents in Operation section of this manual.

  • Page 20: Maintenance

    MAINTENANCE WARNING When performing maintenance, you may be exposed to hot surfaces, water pressure, or moving parts that can cause serious injury or death! Before performing any maintenance or repair, Pull the engine speed lever to stop position, let engine cool and release all water pressure. The engine contains flammable fuel. DO NOT smoke or work near open flames while performing maintenance.
  • Page 21 PUMP Oil CHART OIL CAPACITY MODEL NUMBER OIL TYPE WHPW3600 30W non detergent 526L WHPW2500 383L 30W non detergent 200L WHPW2200 30W non detergent Technical Requirements Model DWHPW2200 DWHPW2500 DWHPW3600 2700 2700 3600 pressure(Psi) Opration 2500 3300 2500 pressure(Psi) Water volume(L/min) Engine (Kw) WD170(2.8Kw)

  • Page 22: Storage

    SPRAY WAND If the nozzle becomes clogged with foreign materials, such as dirt, excessive pressure may develop. If the nozzle becomes partially clogged or restricted, the pump pressure will pulsate. Clean the nozzle immediately using the nozzle kit supplied and the following instructions: Shut off the pressure washer and turn off the water supply.
  • Page 23 PUMP Drain all water from high pressure hose, coil it, and store it in cradle of the pressure washer handle. Drain all water from spray gun and spray wand by holding spray gun in a vertical position with nozzle end pointing down and squeezing trigger. Store in gun/hose holder. Store chemical hose, high pressure hose, spray gun, and spray wand so they are protected from damage, such as being run over.

  • Page 24: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Cause Correction Problem Add Fuel. No fuel. Engine will not start (see Add required amount of oil. Low oil Engine Manual for Pressure builds up after two pulls Squeeze gun trigger to relieve pressure. further engine ter initial on the recoil starter or a troubleshooting use.
  • Page 25 Problem Cause Correction Will not draw Spray wand not in low pressure. See How to Use Spray Wand paragraph in chemicals the Operation Section Chemical f i lter clogged. Clean filter. Chemical screen not in Ensure end of chemical hose is fully s chemical ubmerged into chemical.

  • Page 26: Quick Facts

    QUICK FACTS TO FIND A LOCAL AUTHORIZED SERVICE CENTER NEAR YOU FOR REPAIRS AND SERVICE PART PURCHASES. Use fresh high quality diesel.. FUEL Add stabilizer to fuel tank and run engine for 5 minutes before storage. Pump oil: Refer to owners manual supplied with this unrt. Engine oil: Refer to engine manual supplied with this unit.

  • Page 27: Exploded View Of The Pump

    E xp lo de d vie w of th e p u m p r - �- - - , ..._,_ L - - - -,' -...

  • Page 28: Part List Of The Pump

    Parts list of the pump backup ring boh. cover of cran k case oil drain plug o -ri ng se,at, valw body shoot of oil dr a in p lug w�ler return vah,•Q con; cnm.k case ,cover i ng slip crank cas-c c-0vCr <...
