Summary of Contents for ProSoft Technology IMC-BHx-AC

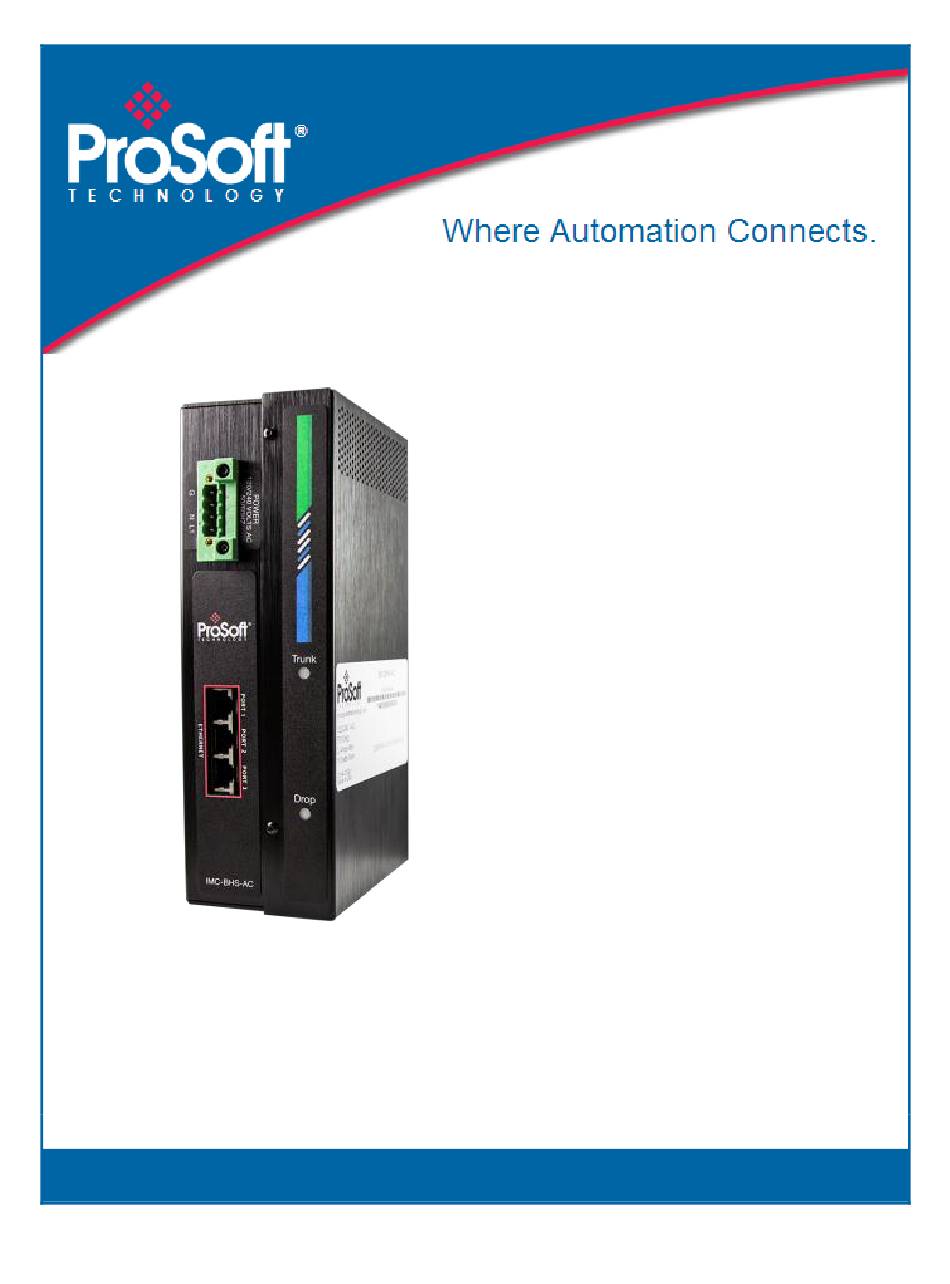

- Page 1 IMC-BHx-AC Industrial Media Converter Ethernet over Belden 9463 “Blue Hose” July 24, 2014 INSTALLATION GUIDE...
-
Page 3: Your Feedback Please
® ProSoft Technology Product Documentation In an effort to conserve paper, ProSoft Technology no longer includes printed manuals with our product shipments. User Manuals, Datasheets, Sample Ladder Files, and Configuration Files are provided on the ® enclosed DVD in Adobe Acrobat Reader file format (.PDFs). - Page 4 IMC-BHx-AC Installation Guide Page 4 of 30 ProSoft Technology, Inc. July 24, 2014...
-
Page 5: Table Of Contents
IMC-BHx-AC Installation Guide Contents Your Feedback Please ........................3 How to Contact Us ..........................3 ® ProSoft Technology Product Documentation ..................3 Start Here Master........................8 Slave .......................... 8 Repeater ........................8 Before You Begin Package Content ....................... 9 Installation Mounting ........................ -
Page 7: Start Here
Start Here Start Here The IMC-BHx-AC family of media converters allow for the simultaneous multi- drop transport of EtherNet/IP™ and Remote I/O data over repurposed Belden 9463 “Blue Hose” cabling. Each Master (IMC-BHM-AC) and Slave (IMC-BHS-AC) module supports Remote I/O networks operating at 57.6K or 115.2K baud rates. The modules are automatically configured to the baud rate of the remote I/O data. -
Page 8: Master
Repeaters are required when there are more than six Media Converter Slaves and/or the maximum trunk cable length exceeds the maximum distance specified in the table at the end of this guide. Page 8 of 30 ProSoft Technology, Inc. July 24, 2014... -
Page 9: Before You Begin
A Repeater is required if the overall network distance exceeds 1300 to 1750 feet (see Performance Chart at the end of this guide) Package Content The following tables show the components including with IMC-BHx-AC modules. Ensure that all items are present before starting the installation. IMC-BHM-AC (Master) - Page 10 4-pin Connectors 357-0148 CONN, 4 Pos Term Block Pluggable, GRN, Screw Flange (173-00009) Please contact ProSoft Technology Technical Support for replacement parts if any of the above components are missing. Page 10 of 30 ProSoft Technology, Inc. July 24, 2014...
-
Page 11: Installation
Powering the Devices The power terminal is located on the front of the device as shown in the following diagram. This is a 4-pin power connector. ProSoft Technology, Inc. Page 11 of 30 July 24, 2014... -
Page 12: Cabling
There are two Remote I/O connectors located at the bottom of the device as shown in the following diagram. The TRUNK connector is used for the repurposed Blue Host cable. The DROP connector is used for the local Remote I/O network. Page 12 of 30 ProSoft Technology, Inc. July 24, 2014... - Page 13 Installation Do NOT attempt to connect a remote I/O network device to a Master or Slave Trunk connector. ProSoft Technology, Inc. Page 13 of 30 July 24, 2014...
- Page 14 Installation The following diagram shows the cabling configuration between a PLC-5 and RIO devices: Page 14 of 30 ProSoft Technology, Inc. July 24, 2014...
- Page 15 Installation The device also provides three RJ-45 Ethernet connectors located on the front of the unit. These are used for the CLX EtherNet/IP™ controllers. ProSoft Technology, Inc. Page 15 of 30 July 24, 2014...
- Page 16 Installation Multipoint Example This example shows three Slaves connected to a single Master. Page 16 of 30 ProSoft Technology, Inc. July 24, 2014...
-
Page 17: Using A Repeater
More than 1750 feet of Blue Hose Trunk will be used in an Ethernet-only system. More than 1300 feet of Blue Hose Trunk will be used in an Ethernet and Remote I/O system. ProSoft Technology, Inc. Page 17 of 30 July 24, 2014... - Page 18 Installation Page 18 of 30 ProSoft Technology, Inc. July 24, 2014...
-
Page 19: Led Functionality
RIO signal health is out of bounds) Integration of RIO serial data waveform is outside of acceptable operating range. Squelch activated causes module to stop all transmission into Trunk and Drop when Red. ProSoft Technology, Inc. Page 19 of 30 July 24, 2014... - Page 20 LED Functionality Trunk TRUNK LED TRUNK CONNECTOR DROP CONNECTOR Drop DROP LED BOTTOM FRONT Page 20 of 30 ProSoft Technology, Inc. July 24, 2014...
-
Page 21: Reference
Local 3 Port 10/100 Ethernet RJ-45 Belden 9463 “Blue Hose” Cabling Type (Trunk Drop): Ethernet Bandwidth: 1-4 Mbps (20-40 Mbps Peak) Remote I/O Baud Rates: 57.6K and 115.2K Din Rail Mountable: ProSoft Technology, Inc. Page 21 of 30 July 24, 2014... -
Page 22: Maximum System Specifications
Number of RIO devices on Drop: Drop Overall Length: 1000 feet Number of Slaves on Trunk: Trunk Overall Length (Ethernet and Remote I/O: 1200 feet Trunk Overall Length: 1750 feet Page 22 of 30 ProSoft Technology, Inc. July 24, 2014... -
Page 23: Typical Performance Characteristics
Reference Typical Performance Characteristics 5.3.1 Single Bus Segment System (Without Repeaters) IP Only (Up to 8 Slaves per Bus Segment) ProSoft Technology, Inc. Page 23 of 30 July 24, 2014... - Page 24 Reference IP with 57.6K Baud Remote I/O (Up to 8 Slaves per Bus Segment) IP with 115.2K Baud Remote (Up to 8 Slaves per Bus Segment) Page 24 of 30 ProSoft Technology, Inc. July 24, 2014...
-
Page 25: Multiple Bus Segment System (1 - 4 Repeaters)
Reference 5.3.2 Multiple Bus Segment System (1 – 4 Repeaters) IP Only (Up to 6 Slaves per Bus Segment) ProSoft Technology, Inc. Page 25 of 30 July 24, 2014... - Page 26 Reference IP with 57.6K Baud Remote I/O (Up to 6 Slaves per Bus Segment) IP with 115.2K Baud rate Remote I/O (Up to 6 Slaves per Bus Segment) Page 26 of 30 ProSoft Technology, Inc. July 24, 2014...
-
Page 27: Multiple Bus Segment System (5 - 8 Repeaters)
Reference 5.3.3 Multiple Bus Segment System (5 – 8 Repeaters) IP Only (Up to 6 Slaves per Bus Segment) ProSoft Technology, Inc. Page 27 of 30 July 24, 2014... - Page 28 Reference IP with 57.6K Baud Remote I/O (Up to 6 Slaves per Bus Segment) IP with 115.2K Baud Remote I/O (Up to 6 Slaves per Bus Segment) Page 28 of 30 ProSoft Technology, Inc. July 24, 2014...
-
Page 29: Support, Service & Warranty
Support, Service & Warranty Support, Service & Warranty Contacting Technical Support ProSoft Technology, Inc. (ProSoft) is committed to providing the most efficient and effective support possible. Before calling, please gather the following information to assist in expediting this process: ... -
Page 30: Warranty Information
E-mail: brasil@prosoft-technology.com Languages spoken include: Portuguese, English Warranty Information For complete details regarding ProSoft Technology’s TERMS & CONDITIONS OF SALE, WARRANTY, SUPPORT, SERVICE AND RETURN MATERIAL AUTHORIZATION INSTRUCTIONS please see the documents on the Product DVD or go to www.prosoft-technology/warranty Documentation is subject to change without notice.
