Fireplace Remote Control Operating Instructions For The Homeowner
The Model L Remote Control is designed for use with decorative gas fireplace and wall heaters using a
Millivolt gas valve.
BEFORE YOU BEGIN:
Warning
The pilot flame must be lit, with the gas control valve turned to "ON", for the remote to work
correctly. Read all of the safety precautions in the owner's manual included with your
fireplace before using this remote control.The thermostat is not intended for unattended use.

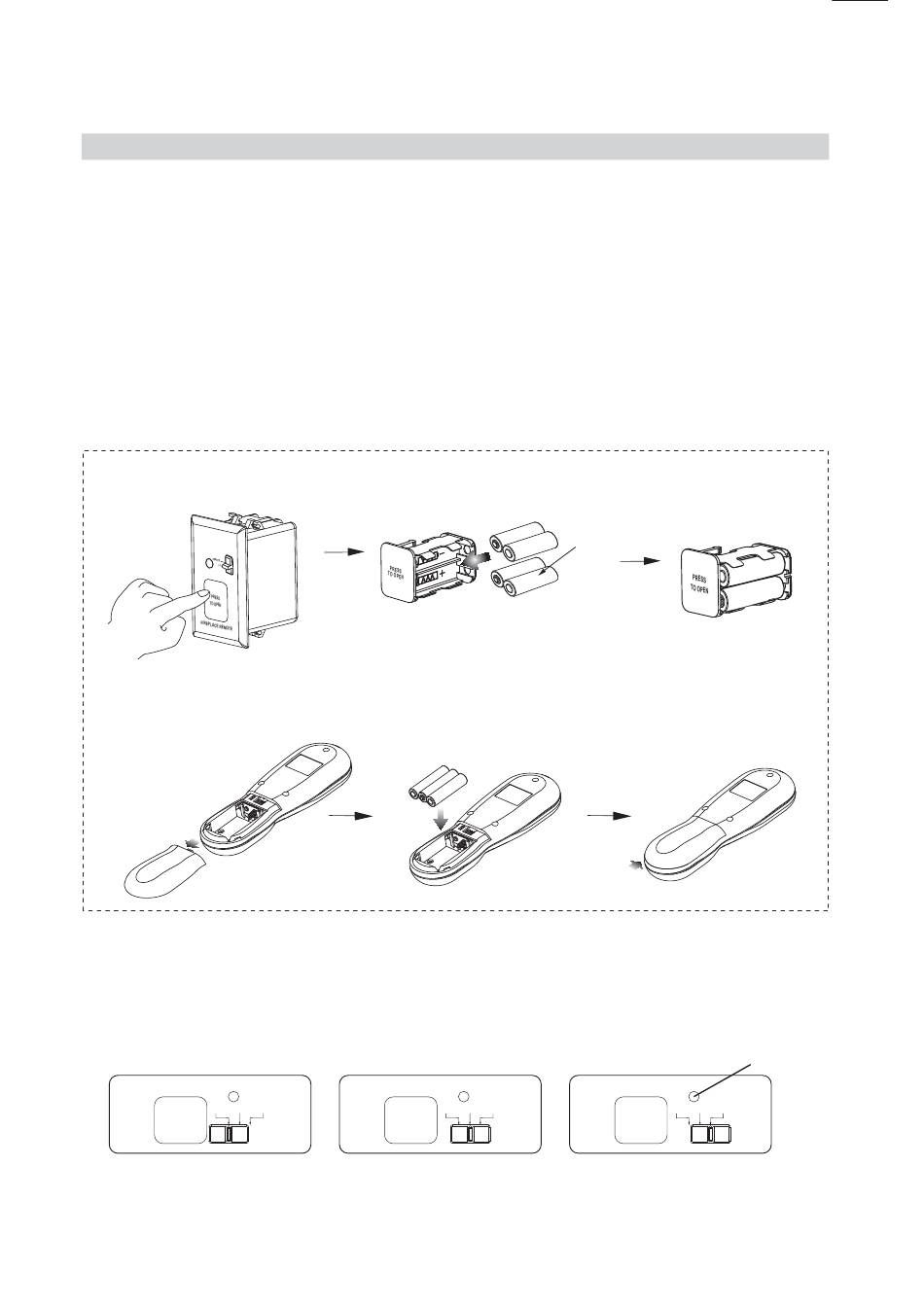

INSTALLING FRESH BATTERIES:
Note: It is not necessary to re-set your private code when Installing Fresh Batteries.
The fireplace MUST be OFF before replacing transmitter batteries.
INSTALL BATTERIES INTO RECEIVER:
BA T.L OW
Press and Release
INSTALL BATTERIES INTO TRANSMITTER:
WARNING:
THE REMOTE TRANSMITTER WILL AUTOMATICALLY SWITCH OFF THE FIREPLACE
WHEN THE BATTERIES IN THE REMOTE TRANSMITTER ARE LOW.
RECEIVER OPERATION:
BAT.LOW
OFF REMOTE ON
PRESS TO OPEN
Fireplace Off
Acumen Model L
Replace Batteries At Least Every 6 Months.
OFF REMOTE ON
PRESS TO OPEN
Fireplace Controlled
by Remote
Page 1 of 4
AA Alkaline Batteries.
BAT.LOW
PRESS TO OPEN
Low Battery
Indicator
BAT.LOW
OFF REMOTE ON
Fireplace On
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acumen Model L
Summary of Contents for Acumen Model L
- Page 1 Acumen Model L Fireplace Remote Control Operating Instructions For The Homeowner The Model L Remote Control is designed for use with decorative gas fireplace and wall heaters using a Millivolt gas valve. BEFORE YOU BEGIN: Warning The pilot flame must be lit, with the gas control valve turned to "ON", for the remote to work correctly.
-
Page 2: Transmitter Operation
TRANSMITTER OPERATION: WARNING: IT TAKES SOME TIME FOR THE RECEIVER TO RESPOND TO THE TRANSMITTER. DO NOT PRESS THE BUTTONS MORE THAN ONCE WITH 2 SECONDS FOR CORRECT OPERATION. SETTING THE CLOCK / TEMPERATURE MODE. See Figure 2 Fahrenheit or Press and hold the Clock button for approximately 2 seconds Celsius display until the hour display starts to flash (Remote must be in Auto... - Page 3 Child-Proof Feature, See Figure 6 The Child-Proof switch disables the buttons on the front of the Remote. Thermostat and timer functions continue to operate. 1. Remove the cover at the back of the Remote Transmitter to expose the CHILD-PROOF switch. 2.
- Page 4 SET PRIVATE CODE: BA T.L OW BA T.L OW Install 4AA Batteries Select Code Switch off Position Put Battery Compartment the Receiver into the Receiver BAT .LO B A T. L O Switch Receiver Install 3AAA Batteries to Remote Attention: Important Safety Feature 6HR Safety Timer(FACTORY DEFAULT IS “ON”) Enable - Timer Set to “ON”...
-
Page 5: Installation Precautions
Acumen Model L Fireplace Remote Control Installation Instructions PLEASE LEAVE THE INSTRUCTIONS TO THE HOMEOWNER. The Model L Remote Control is designed for use with decorative gas fireplace and wall heaters using a millivolt gas valve. Installation Precautions: The Model L Remote Control is tested safe when installed in accordance with this installation manual. It is your responsibility to read all instructions before starting installation and to follow these instructions carefully during installation. -
Page 6: Coding Instructions
7. In order to prevent the Remote Receiver (fireplace installation only) from overheating, put a heat shield (option item) above the Remote Receiver. See Figure 5. Heat-Shield In su l a to r Code Child-Proof BA T.L OW Switches Switch OF F RE MO TE ON...
