ZX-6199L

USER'S MANUAL

Table of Contents

Need help?

Do you have a question about the ZX-6199L and is the answer not in the manual?

Questions and answers

Summary of Contents for Chinavision ZX-6199L

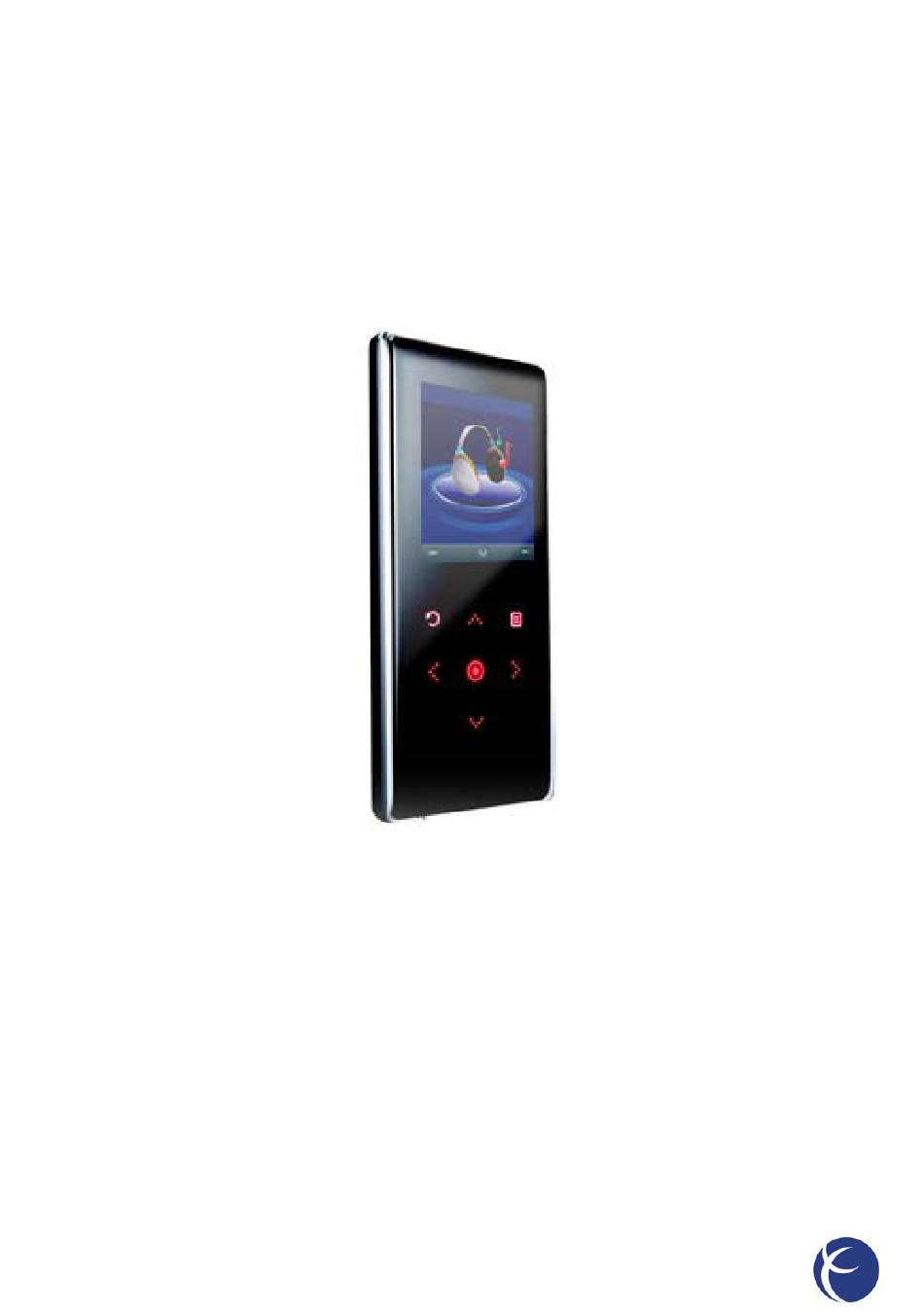

Page 1 ZX-6199L USER’S MANUAL...
Page 2 Precautions This manual contains important safe measurements and correct operational information, so please read all the information carefully before you use the device in order to avoid any unexpected accidents. Do not put the player in the condition of high temperature, humidity or dust. Do not put the player in high temperature place (over 40℃), especially not in the cars with window closed in summer.
Page 3: About The Player
2.4-inch 260K full-color TFT display Multi music formats as MP3, WMA and WAV, good timber and real audio frequency display MPEG-4 (AMV) video format play, full-screen play display, exterior-sound speaker play High-definition JPEG picture browse function Built-in speaker Microphone record Energy-saving setting, brightness adjustable, customerized power off time Good timber, support 3D EQ surrounding effect, customerized EQ Support multi languages...
Page 4: Basic Operation
■REC Mode ■Picture Browse/E-Book/Resources Manager Basic Operation Power On/Off Power On/ Off: Press and hold POWER button for several minutes; ※ the system will power off automatically if the battery is not enough. Power Reset If your player is blocked during the using, you can restart the player. Connect to Computer and Data File Transmission After starting the computer, you can connect the player to computer via USB cable to achieve the USB power supply or USB data transmission.
Page 5: System Menu
Full Partially used to be used Use up (time to charge) The usable time of battery electricity may be various according to different volume, type of playing file and pressing operation. The player can save battery as per the set [Customerized Power Off Time] or [Display Setting]. System Menu Main Interface After entering the Main Interface, select your desired option among [Music]/[Movie]/[Record]/[Play] [radio]/[picture]...
Page 6 Replay mode In this sub-menu have two options for you choose: Manual replay or Auto replay. Online Mode Some operation systems (Windows 2K SP4 or prior) may not recognize a USB disk with two symbols. Therefore, you have to choose an active disk here when using ‘Secret Space’ function only the active disk can be found in PC. Some MP3 user may worry about divulging secret.
Page 7: Listen To Music
3. Running executable file ‘RdiskDecrypt.exe’ and input username and password. If all are correct, disk will be opened, and files can be copied into. 4. You must enter username and password each time access encrypted disk. Warning: Divide one disk into parts will remove all data, and so does combine process. Warning: Please remember username and password.
Page 8 The player supports lyric files with *.LRC suffix, and displays synchronously. How to use lyric files? Please make sure the lyric has the same name to the music For example: Music file: Remember.mp3 Lyric file: Remember. Lrc How to know if lyric available? When marched lyric available：...
Page 9: Voice Rec
Delete File In Music Stop state, press MENU enter sub-menu, choose the desired files by “leftward”/ “rightward” button, press MENU to eject out the dialog box, confirm whether to delete the file, select “Yes” or “No” by “﹤”, “﹥”. Voice REC Voice REC In Main Interface, enter Record state, press PLAY to start recording, press PLAY to pause recording, long press MENU to save the record and exit the REC mode.
Page 10: Sd Card Function
Record: you can choose this item to record when you heard some favor music. The process will go ahead same as REC mode after you confirm to record radio. The recorded FM files can be found in Music Play menu and played to try the effect.
Page 11: Convert And Play Video File
the attached charger to charge the battery. During the charging, the battery icon will display the impulse, after the charging, the battery electricity will shows full grids (Fig.). It requires 3 hours to charge fully the battery (note: for the first two times, you have to charge for 8 hours).
Page 12: Troubleshooting
8. Click ‘Start Upgrade’, the upgrade will on process 9. While upgrade successful, the player wills display: Firmware upgrade is to improve player’s performance; you can still use it normally without doing upgrade process Player may not work by incorrect process! Please read this manual carefully before doing upgrade process. The upgrade software cannot work for other player.
Page 13: Specifications
earphone is connected well and keep the earphone clean Format the disk again It can not upload/download the file or the Insert USB cable totally well after the Power on. disk can not be found in computer Correctly install the driver again. It can not be recorded Check the enough memory and the electricity Make sure that you have selected the correct...
Page 14: Installing Software
AMV converter tool In the CD bundled with the products has the AMV converter tool. This tool is used for transforming media files into the AMV format which can be played on the MP3/MP4 Player. 1.1 Following video types can be converted: 1) The AVI format file: *.avi 2) The Windows Media format file: *.asf, *.wmv 3) The MPEG1 format file: *.mpg, *.mpeg, *.dat...
Page 15: Using The Software
3. Using the software 3.1 Adding a media file After run this tool, Click input file button and select a movie file that needs to be converted. " " 3.2 Add the media file After run the tool, click input file button right side of the column to increase the file that want to "...
Page 16 After add the file, in input file column, can show the path of the file, as follows the red of the picture " " marks to show. The status column displays the related information of these add files such as check box, the file name and path, status and file length etc: NOTE: Here, we use WMV file as an example, for reference only.
Page 17 3.3 Play the media file This conversion tool contains function of playing media file, but the premise of playing is you have already succeeded to install related decoding tool. Details please refer to following text. At status column click selected file, click play button play this file.
Page 18 Note: When the file status change from unconvert success , it expressing that PC has already " " " " installed the decoding tool of this file’s type. This tool can play that media files normally, and can carry on the conversion after stopping play. Certainly, can also carry on the conversion directly before did not play the media files, but for converting the file successful, we suggest that customer makes sure first that file can play normally, then carry on the conversion.
Page 19 If conversion of a specific media file in the list is not wanted, a specific file can be deselected by clicking the little box. The marker will disappear and this file will not be converted. 4.1.1.1 Whether media needs to convert or not, can click the check box make selection or cancel directly.
Page 20 4.1.1.2 In addition to directly clicking the check box, can also right click the file and select the select " " unselect to make selection or cancel. " " 4.2 Select destination The AMV file of this conversion tool default conserve path is C:\.Before convert, Click the output file "...
Page 21 After completing the above step, at the convert interface output file column will display the path that " " files of AMV deposit. 4.3 The parameter setting This conversion tool has the function of the AMV file parameter setting, the interception video fragment, video width and height, picture format and image quality etc.
Page 22 The methods that enter to property interface contain two kinds of the following: A. select one or more media files, then click on the button in the output information " " B. select one or more media files, then right click mouse, and select setting "...
Page 23 First choose cut source video snippet selection box, enabling video start time point and end time " " point. Input the desired start and stop time. The above example: Selection of the current media files from 1 min1 0 sec to 3min 20 sec. cut source video snippet is not selected, the whole media file will be converted.
Page 24 Press the start position button, at the S.Time column will show the selected begging point time.
Page 25 Press the end position button, at the E.Time column will show the selected point end time. When a fragment is chosen, the selected points will be indicated: Start time, end time, fragment time, total time.
Page 26 If you want to cancel the fragment intercept, can click cancel choice button. Time column become " " total time; recover the interface that in front of click choice button, while convert will convert the " " whole document. Notice: 4.3.1.1 methods of the interception video frequency fragments relatively be applicable to single or several files to do the fragment of the interception together;...
Page 27 4.3.3 Picture transform There are 6 kinds of picture transform: Normal, UpDown, LeftRight, UpDown-LeftRight, Deasil 90 and Anticlock wise 90. The default choice is Normal, the interface is as follow the picture:...
Page 28 4.3.4 Image quality There are three kinds of image quality: high, middle and low.
Page 29 4.3.5 Insert picture for none picture For converting the better effect, need to pick out those options. The options is be picked out, please use default setting. 4.3.6 Replacing the audio file Substitutes the old audio file with the new audio file, means to choose the new audio file (the WAV type) substitute the current video file speech part, video part is not change.
Page 30 Above picture, press the button to choose the new audio part file path, then press OK button to complete. After selected new audio file, there will display the path of the file in the interface of the substitute new " audio for old audio , please press the OK button to complete.
Page 31 If you want to cancel the substitution of the audio file, enter the substitute dialog box, don’t choose any audio file and make the Substitute new audio for old audio column display blank, then click " " " " button, before exit the Property setting interface, click the button again, you can cancel the...
Page 32 In the Miscellaneous setting, we suggest use the default setting. Click the button after completing the operation of the above step, complete the property setting " " operation. Notice: The above-mentioned system parameter setting, conversion is valid to the selected file, unselected will use the default setting.
Page 33 In the above pictures, we choose the Ocean mode, if choose Classic mode, the picture is as " " " " follows:...
Page 34 4.4 Convert file After complete the system setting, make sure the check box had been selected that wants to convert. Click convert button in the tool interface, the procedure begin to converts all files one by one in order, the file status is one by one in order from unconvert success , at the same time in...
Page 35 After conversion is completed, the AMV Player will play the AMV file automatically. While playing the file, click the right key on the image, choose property to check the video width and height and frame per second etc. The playing interface is as follow the picture: In addition to the method of the above conversion, can also choose file from the HDD, clicking the right key, choose beginning video conversion...
Page 36 5、Download media files from internet and convert files 5.1 Search media files This tool has the function of downloading media files from internet, viz. after searching out the media files, click the right key on the file link, choose add to AMV convert tool , then choose in the "...
Page 37 6.5 While playing the SWF format files, the tool will use IE browser to play it. 6.6 This tool doesn’t support the audio and the video character display of the AMV file which is converted from Flash(SWF file). 6.7 For the moment, the tool does not support “Intercept the video fragment” function of SWF file. 6.8 The operation picture of this help document provides the reference only please follows the real tool of the concrete edition.
