INSTALLATION GUIDE

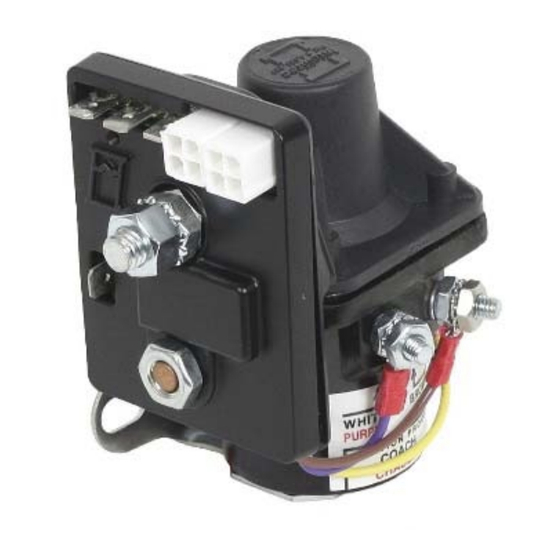

Battery Guard® 1000 (RV‐C)
Part number: 00‐01130‐000
The Battery Guard® 1000 was designed to make installation simple. With its unique all in one design, Intellitec brought
the electronics to the source, eliminating additional wiring and simplifying the installation process. The Battery Guard®
1000 has a mounting plated attached with two mounting holes located in the back and uses automotive standard
connectors for peripheral connections.
These instructions contain all the information needed to help you install the Battery Disconnect. It is assumed the
installer has basic skills in electrical wiring, mechanics, and carpentry. If you have any doubts about these techniques or
instructions consult with someone BEFORE you connect a wire or cut a hole.

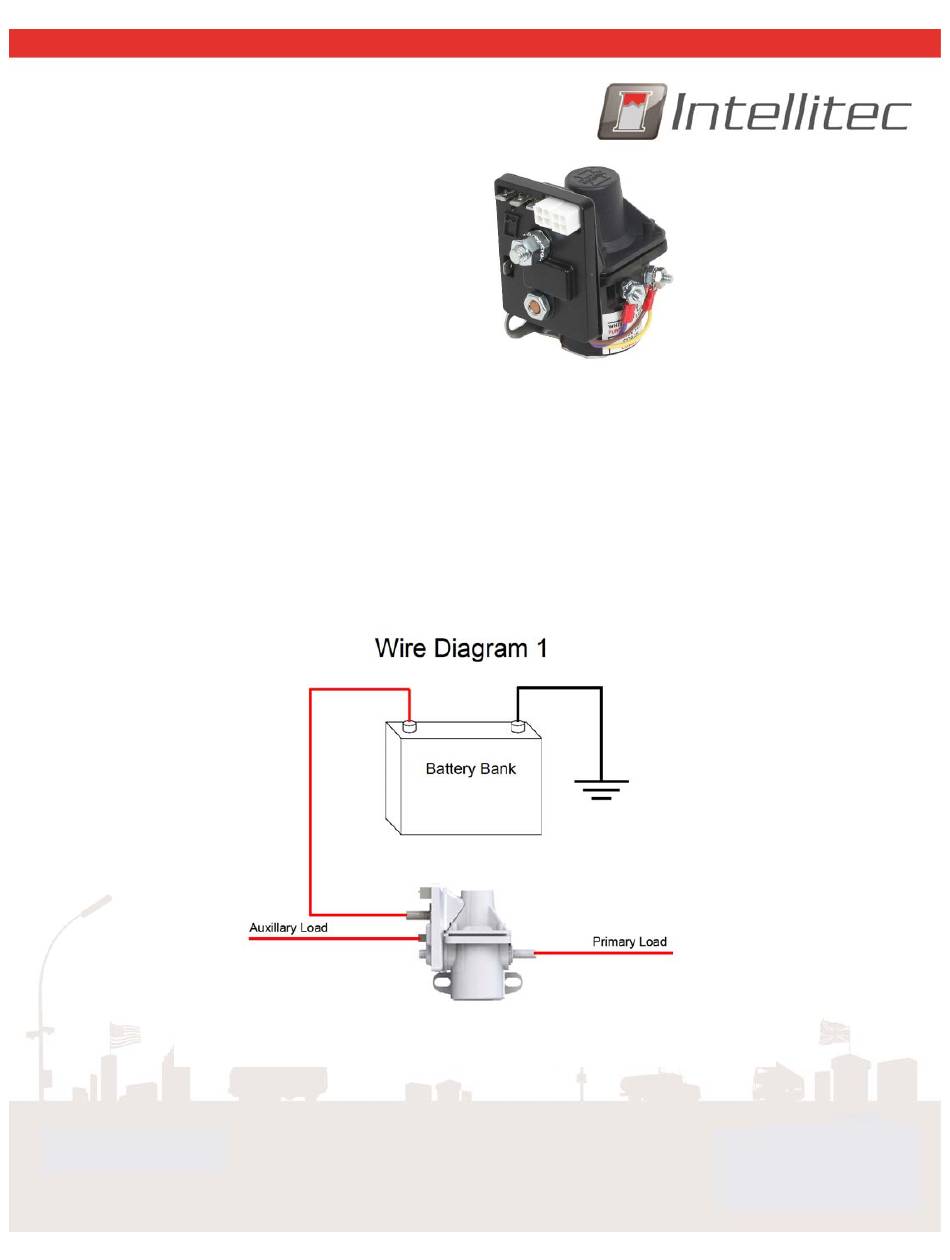

Wire Diagram 1 illustrates the primary connections of the Battery Guard® 1000. 5/16" bolts are used for the battery
supply and Primary Load connections and are capable of supporting 100A of current. The Auxiliary Load uses a male ¼"
quick connect and can supply up to 2A of current to the Auxiliary Load.
53‐01130‐200 Rev A 06/09/20
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intellitec Battery Guard 1000
Summary of Contents for Intellitec Battery Guard 1000
- Page 1 53‐01130‐200 Rev A 06/09/20 INSTALLATION GUIDE Battery Guard® 1000 (RV‐C) Part number: 00‐01130‐000 The Battery Guard® 1000 was designed to make installation simple. With its unique all in one design, Intellitec brought the electronics to the source, eliminating additional wiring and simplifying the installation process. The Battery Guard® 1000 has a mounting plated attached with two mounting holes located in the back and uses automotive standard connectors for peripheral connections. These instructions contain all the information needed to help you install the Battery Disconnect. It is assumed the installer has basic skills in electrical wiring, mechanics, and carpentry. If you have any doubts about these techniques or instructions consult with someone BEFORE you connect a wire or cut a hole. Wire Diagram 1 illustrates the primary connections of the Battery Guard® 1000. 5/16” bolts are used for the battery supply and Primary Load connections and are capable of supporting 100A of current. The Auxiliary Load uses a male ¼” quick connect and can supply up to 2A of current to the Auxiliary Load. Page 1 ...
- Page 2 53‐01130‐200 Rev A 06/09/20 INSTALLATION GUIDE Application Connections: Signal Function Connection Type Switch Input (GND) User input allows the ability to toggle primary disconnect state 0.25” Quick Connect Female Alarm Output (VBAT) 350 mA output indicating disconnect state and low voltage condition 0.25” Quick Connect Female Ground Ground supply for Battery Guard 1000 0.25” Quick Connect Female RV‐C Network RV‐C communications with constant battery 4 pin Molex Mini‐Fit Switched RV‐C RV‐C communications with switch power 4 pin Molex Mini‐Fit Battery Positive Battery Power for Primary and Auxiliary Loads 5/16” Ring Term Primary Load 100 Amp Disconnect for Primary Loads 5/16” Ring Term Auxiliary Output 2 Amp Disconnect for Auxiliary Load 0.25” Quick Connect Female RV‐C Connectors: The RV‐C network connections use 4 pin Mini‐Fit connectors and follows the RV‐C standard pin‐out convention described in section “2.1.4 Connectors” of the RV‐C guideline. Pin Number ...
- Page 3 53‐01130‐200 Rev A 06/09/20 INSTALLATION GUIDE Locating the Battery Guard® 1000 Switch: The Battery Guard® 1000 offers a direct switch input signal that allows the user to toggle the primary disconnect state. This can become very useful if the RV‐C network were to ever go down or if the user does not have access to the other control methods. The switch should be readily accessible by the user. This switch not only controls the state of the battery disconnect but also provides indication of the disconnect state and whether faults have occurred. Ensure the wall used for mounting the switch has enough clearance behind it to allow cables access. Typically, ¾” to 1” is required. (Dimensions in inches) RECOMMENDED PANEL CUTOUT Max Panel thickness should not exceed 0.3 inches Note: Drawing dimensions refer to the switch used in the Intellitec kit (part # 10‐01130‐000). Installing the Battery Guard® 1000: WARNING: Before proceeding, disconnect all sources of power. Unplug the shore power cable and turn off the generator. Disconnect the battery(s) negative (‐) terminal. The Battery Guard® 1000 controls a relay that acts as electro‐mechanical switch that disconnects the battery. It should be located near the battery for wiring simplicity. When installed, the relay will be inserted "in‐line" with the cable coming from the positive (+) terminal of the battery. Keep this in mind when choosing the installation location. WARNING: To prevent unwanted isolation when ignition signal is present, the Battery Guard® 1000 looks at the RV‐C network to determine its ignition inhibit state. Ensure the network integration supports the “ignition switch status” if attaching operation safety critical devices. If not, it is recommended that safety critical devices be on a separate branch from the Battery Guard® 1000. Page 3 ...
- Page 4 53‐01130‐200 Rev A 06/09/20 INSTALLATION GUIDE While holding the relay in place near the chassis battery, mark the location of the two holes for the relay mounting bolts. Set the relay aside, and drill two mounting holes. Before bolting the relay in place, route the Control Cable near the mounting place. When installing in an engine compartment, be sure to provide sufficient space for airflow to allow for cooling. Connecting the Cables: WARNING – When connecting the battery positive and primary load wires, you must use two wrenches to tighten the nuts on the stud, one to turn the outside nut and one to hold the nut on the inside from turning. The copper stud must not turn, or relay operation may be affected. Locate the positive battery cable for the chassis battery. Carefully cut the cable near the relay. Strip the cable insulation back about 1/2" on each end and crimp on the battery cable terminals defined in the Application Connections table. Remove keps nuts from both copper studs and connect the terminals to the copper studs on the relay. It’s important that the “battery feed” and “primary load” cables goes to the studs defined in Wire Diagram 1 and 2. If using the provided Battery Guard® 1000 Switch Harness, follow Wire Diagram 2 for matching the wire harness colors to the connectors. The Battery Guard® 1000 has 2 RV‐C ports. One of these ports provides constant power while the other provides a switched power. The switch power follows the state of the primary disconnect. This feature offers a more advanced network management option. Refer to Wiring Diagram 2 to ensure proper connection of the RV‐C network. The Auxiliary output is a 2 amp over current protected output that isolates at an independent low voltage threshold from the primary disconnect. This can be used to maintain power on critical devices or devices required to bring the RV‐C network and loads back up. After all wires have been connected and tightened properly, reconnect the batteries negative cable. Verifying Operation: To verify the Battery Guard® 1000 is powered up, check for the green LED heartbeat on the device. This will illuminate right above the company logo. If using the provided switch with the Intellitec kit 10‐01130‐000 toggle the state of the disconnect. If the LED ring on the switch is illuminated then the battery disconnect is closed, if the LED ring on the switch is not illuminated then the disconnect is open. When using this device in an RV‐C network use the DC DISCONNECT DGN to change the state of the disconnect. Refer to the 53‐01130‐300 ‐ Integrators Guide for specific information regarding status and control of the Battery Guard® 1000. Note: be sure when using the RV‐C command that the device you are sending the message with is not connected to the disconnect or auxiliary when testing this function or the device will turn off. Page 4 ...
- Page 5 53‐01130‐200 Rev A 06/09/20 INSTALLATION GUIDE Available Product Literature and Guides: Brochure: 53‐01130‐000 Product Specification: 53‐01130‐001 User’s Guide: 53‐01130‐100 Installation and Applications: 53‐01130‐200 Integrators Guide: 53‐01130‐300 Contact Information: www.intellitec.com Intellitec Products, LLC 1485 Jacobs Road, DeLand Florida, USA 32724 (386) 738‐7307 Page 5 ...
