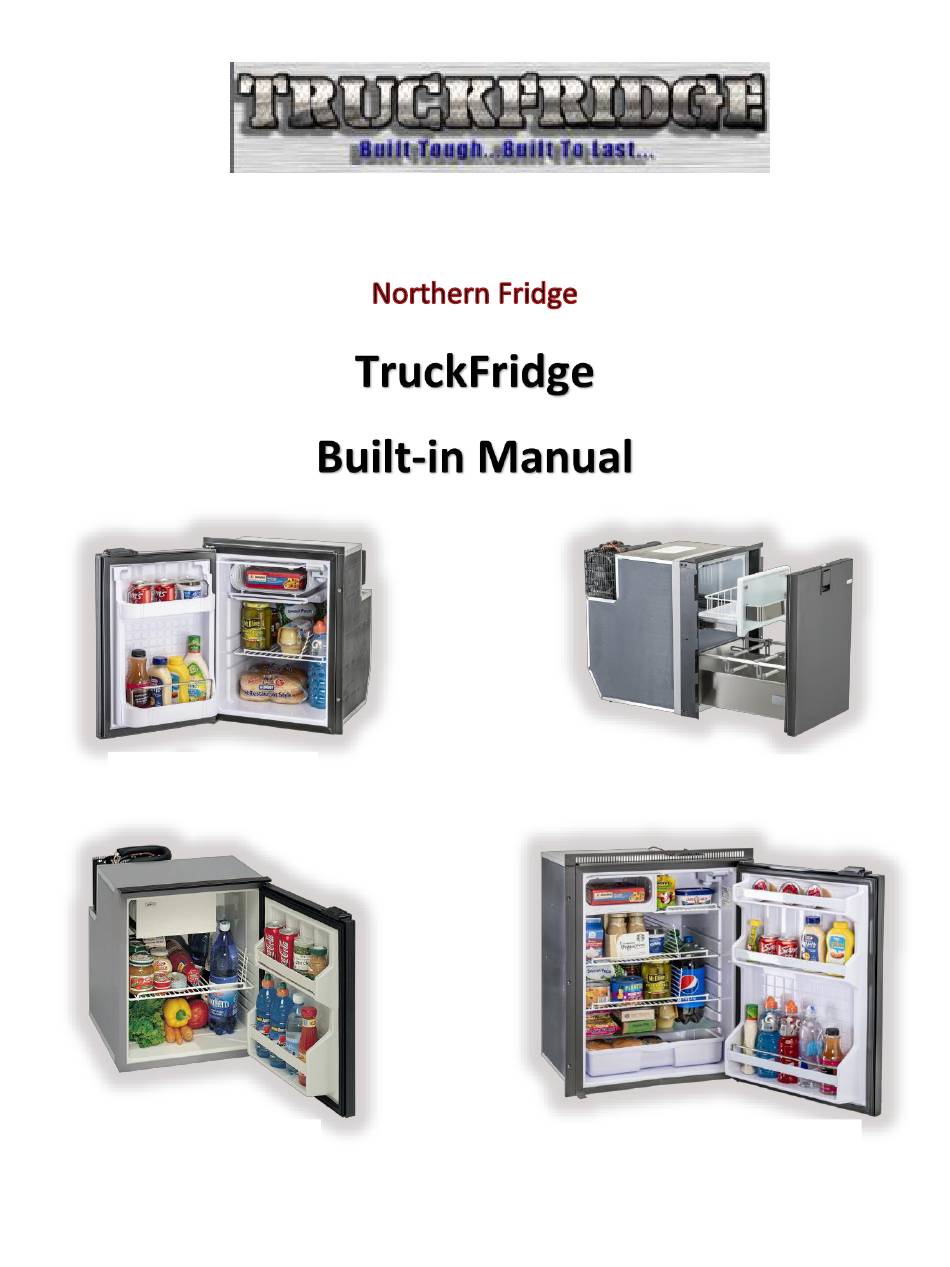

- Page 1 TruckFridge Built-in User Manual Model TF49 Model TFDR49 Model TF65 Model TF130 Updated 5 July 2020 Page 1...
-
Page 2: Table Of Contents
TruckFridge Built-in User Manual TABLE OF CONTENTS GENERAL INFORMATION Introduction Notice COMPONENTS Components/Refrigeration System Illustrations 2.1.1 Compressor 2.1.2 Electronic Control Unit (ECU) 2.1.2.1 Replacing the ECU 2.1.3 Condenser 2.1.4 Evaporator 2.1.5 Thermostat 2.1.6 2.1.7 Dehydration Filter (Dryer) INSTALLATION Installing the TF49 in Freightliner Cascadia 3.1.1 Installing replacement TF49 with TF49-2PCAS-R Installation Kit 3.1.2... - Page 3 TruckFridge Built-in User Manual 8.2.1 TFDR49 Fridge Parts List/Description 8.2.2 TFDR49 Cooling System Parts Diagram 8.2.3 TFDR49 Cooling System Parts List/Description TF65 Fridge Parts Diagram 8.3.1 TF65 Fridge Parts List/Description 8.3.2 TF65 Cooling System Parts Diagram 8.3.3 TF65 Cooling System Parts List/Description TF130 Fridge Parts Diagram 8.4.1 TF130 Fridge Parts List/Description...
-
Page 4: General Information
TruckFridge Built-in User Manual GENERAL INFORMATION Introduction The TruckFridge Built-in refrigerator (TruckFridge) has been designed and tested to give many years of performance and reliability. The 12 and 24 Vdc power supply (110-220 Vac optional) makes them especially versatile. The power source can either be a battery, a transformer, a photo-voltaic (Solar) panel or common household 110Vac. -
Page 5: Components
TruckFridge Built-in User Manual WARNING! The refrigerator is suitable for the preservation and/or storage of food items and maintaining already • frozen food. • Use the fridge exclusively for cooling and storing closed beverages and snacks. • Food may only be stored in its original packaging or in suitable containers. •... -
Page 6: Electronic Control Unit (Ecu)
TruckFridge Built-in User Manual 2.1.2 Electronic Control Unit (ECU) The Electronic control unit of the compressor is a piece of electronic equipment which carries out all the controls and electrical protection of the compressor system. Its main features include; a) Protection of the battery with automatic turning off of the compressor when the feeding voltage reaches the minimum threshold (cut out) typically 10 volts. -
Page 7: Condenser
TruckFridge Built-in User Manual 2.1.3 Condenser The condenser may be of static or ventilated type. Since its function is to dissipate heat, it must be placed in a zone allowing for the maximum heat exchange with the environment and must not be clogged with dust or other substances preventing the exchange of heat. - Page 8 TruckFridge Built-in User Manual Most models from TruckFridge can be installed by attaching the applicable fridges installation kit(s) to the truck cabinet using the appropriate screws required for the material of the truck cabinet. It is very important for the refrigerating unit, consisting of the compressor and the condenser, to be well ventilated, with the cool air typically coming in from the bottom and going out from the top.
- Page 9 TruckFridge Built-in User Manual Figure 3.3.1.1: Attaching bottom bracket to bottom of fridge Turn fridge right side up and center top bracket 1/2" from front of fridge cabinet, centered side to side. (If silicone caulking available, apply a small amount to each screw hole in bracket to minimize potential of screws loosening.) Install bracket using 3/4"...
- Page 10 No drilling required. Refrigerator plugs into existing factory wiring harness from the REAR of lower cigarette type plug. (NEVER USE A CIGARETTE PLUG AS A PERMANANENT CONNECTION.) Next, install the TF49-2PCAS-R Installation Kit to the “bottom” of the TruckFridge TF49 as described in “3.3.1: Installing a replacement refrigerator with the TF49-2PCAS-R Installation Kit” above.
- Page 11 TruckFridge Built-in User Manual Align large black mounting plate with existing holes already in cabinet platform. They can be located from bottom, if shelf is covered with carpet, poke up through holes and through the carpet. (Carpet removed in picture for demonstration purpose only.) Bolt mounting plate to bottom of cabinet with finger tabs along the back of the cabinet, pointed...
-
Page 12: Ventillation
TruckFridge Built-in User Manual Ventilation It is very important for the refrigerating unit, consisting of the compressor and the condenser to be well ventilated with adequate air flow into and out of the cabinet housing the refrigerator. See 8.12 TruckFridge Installation Ventilation Diagram for details. -
Page 13: Replacing The Door Panel
TruckFridge Built-in User Manual 5) For system protection, the fuse must be installed in the RED positive wires (+) as close as possible to the battery. We recommend using 15 A fuses for 12 V and 7.5 A fuses for 24 V. If using a main switch, it must be able to withstand a minimum current of 20 A. -
Page 14: Reversing The Door Opening
TruckFridge Built-in User Manual Reversing the Door Opening (TF49, TF65 and TF130 Only) The TruckFridge door can open from either the right or left. To change the side, move the hinges and door latch as shown in Figure 3.7..1 “Reversing Door Opening” below. Image of refrigerator shown is generic and may not represent your exact model, however the procedure is similar. -
Page 15: Features
TruckFridge Built-in User Manual FEATURES Setting the Inside Temperature The TruckFridge refrigerators are provided with a manual thermostat. Turn it clockwise to lower (7 lowest) the temperature and turn it counter-clockwise (1 highest) to raise the temperature and activate the ON-OFF switch in its end position (0). The knob of the thermostat is located inside the refrigerator. -
Page 16: Troubleshooting
TruckFridge Built-in User Manual b. the voltage which reaches the ECU is equal to the one shown on the plate (minimum 11 volts, maximum 14 volts) . the connections have the proper polarity and are secure. d. the condenser fan is not jammed or obstructed. the refrigerating unit is not near a source of heat. - Page 17 TruckFridge Built-in User Manual LED (optional) See Figure 6.2 TruckFridge 12VDC 101N0212 ECU Electrical Schematic A 10mA light emitting diode (LED) (6) can be connected between the terminals + and D. In case the electronic unit records an operational error, the diode will flash a number of times. The number of flashes depends on what kind of operational error was recorded.
-
Page 18: Thermostat Test
4. If the fan and compressor turn on, the thermostat is defective 5. If the fan and compressor do not turn on, contact Northern Fridge support for service 6. Reconnect the “Blue” wire to the “T” terminal and reconnect single “Brown” wire to the “P” terminal Figure 6.3.1: Thermostat Test Procedure... -
Page 19: Specifications
TruckFridge Built-in User Manual SPECIFICATIONS Note. If in doubt about the model for your truck, always confirm by measuring the height, width and depth of the cabinet opening before ordering. Please note that models, prices, and availability is subject to change without obligation or notice. Truckfridge Model TF49 Description TF49DC... -
Page 20: Truckfridge Model Tf65
TruckFridge Built-in User Manual Truckfridge Model TF65 Description TF65DC TF65ACDC Outside Dimensions (inches) 21H x 17.75"W x 18.375"D Inside Dimensions (inches) 18” H x 15.675”W x 17”D Freezer 9.5"W x 3"H x 8.5"D Total Capacity 65 litre / 2.3 cu. ft. Freezer 8 Liter / .14 Cu.Ft. -
Page 21: Illustrations
TruckFridge Built-in User Manual ILLUSTRATIONS TF49 Fridge Parts Diagram Updated 5 July 2020 Page 21... -
Page 22: Tf49 Fridge Parts List/Description
TruckFridge Built-in User Manual 8.1.1 TF49 Fridge Parts List/Description Updated 5 July 2020 Page 22... -
Page 23: Tf49 Cooling System Parts Diagram
TruckFridge Built-in User Manual 8.1.2 TF49 Cooling System Parts Diagram Updated 5 July 2020 Page 23... -
Page 24: Tf49 Cooling System Parts List/Description
TruckFridge Built-in User Manual 8.1.3 TF49 Cooling System Parts List/Description Updated 5 July 2020 Page 24... -
Page 25: Tfdr49 Fridge Parts Diagram
TruckFridge Built-in User Manual TFDR49 Fridge Parts Diagram Updated 5 July 2020 Page 25... -
Page 26: Tfdr49 Fridge Parts List/Description
TruckFridge Built-in User Manual 8.2.1 TFDR49 Fridge Parts List/Description Updated 5 July 2020 Page 26... -
Page 27: Tfdr49 Cooling System Parts Diagram
TruckFridge Built-in User Manual 8.2.2 TFDR49 Cooling System Parts Diagram Updated 5 July 2020 Page 27... -
Page 28: Tfdr49 Cooling System Parts List/Description
TruckFridge Built-in User Manual 8.2.3 TFDR49 Cooling System Parts List/Description Updated 5 July 2020 Page 28... -
Page 29: Tf65 Fridge Parts Diagram
TruckFridge Built-in User Manual TF65 Fridge Parts Diagram Updated 5 July 2020 Page 29... -
Page 30: Tf65 Fridge Parts List/Description
TruckFridge Built-in User Manual 8.3.1 TF65 Fridge Parts List/Description Updated 5 July 2020 Page 30... -
Page 31: Tf65 Cooling System Parts Diagram
TruckFridge Built-in User Manual 8.3.2 TF65 Cooling System Parts Diagram Updated 5 July 2020 Page 31... -
Page 32: Tf65 Cooling System Parts List/Description
TruckFridge Built-in User Manual 8.3.3 TF65 Cooling System Parts List/Description Updated 5 July 2020 Page 32... -
Page 33: Tf130 Fridge Parts Diagram
TruckFridge Built-in User Manual TF130 Fridge Parts Diagram Updated 5 July 2020 Page 33... -
Page 34: Tf130 Fridge Parts List/Description
TruckFridge Built-in User Manual 8.4.1 TF130 Fridge Parts List/Descript Updated 5 July 2020 Page 34... -
Page 35: Tf130Cooling System Parts Diagram
TruckFridge Built-in User Manual 8.4.2 TF130 Cooling System Parts Diagram Updated 5 July 2020 Page 35... -
Page 36: Tf130 Cooling System Parts List/Description
TruckFridge Built-in User Manual 8.4.3 TF130 Cooling System Parts List/Description Updated 5 July 2020 Page 36... -
Page 37: Danfoss/Secop Bd35F-Hd Compressor Specifications
TruckFridge Built-in User Manual Danfoss/Secop BD35F-HD Compressor Specifications Updated 5 July 2020 Page 37... - Page 38 TruckFridge Built-in User Manual (Cont’d): Danfoss/Secop BD35F-HD Compressor Specifications Updated 5 July 2020 Page 38...
- Page 39 TruckFridge Built-in User Manual 101N0212 ECU 12VDC Specifications for BD35F-HD Updated 5 July 2020 Page 39...
-
Page 40: Truckfridge 101N0212 Ecu 12Vdc Wiring Diagram
TruckFridge Built-in User Manual 8.6.1 TruckFridge 101N0212 ECU 12VDC Wiring Diagram Updated 5 July 2020 Page 40... -
Page 41: Truckfridge 101N0500 Ecu 12Vdc, 110Vac Specifications
TruckFridge Built-in User Manual TruckFridge 101N0500 ECU 12VDC, 110VAC Specifications Updated 5 July 2020 Page 41... -
Page 42: Truckfridge 101N0500 Ecu 12Vdc, 110Vac Wiring Diagram
TruckFridge Built-in User Manual 8.7.1 TruckFridge 101N0500 ECU 12VDC, 110VAC Wiring Diagram Updated 5 July 2020 Page 42... -
Page 43: Tf49 Dimensional Diagram
TruckFridge Built-in User Manual TF49 Dimensional Diagram Updated 5 July 2020 Page 43... -
Page 44: Tfdr49 Dimensional Diagram
TruckFridge Built-in User Manual TFDR49 Dimensional Diagram Updated 5 July 2020 Page 44... -
Page 45: Tf65 Dimensional Diagram
TruckFridge Built-in User Manual 8.10 TF65 Dimensional Diagram Updated 5 July 2020 Page 45... -
Page 46: Tf130 Dimensional Diagram
TruckFridge Built-in User Manual 8.11 TF130 Dimensional Diagram Updated 5 July 2020 Page 46... -
Page 47: Truckfridge Installation Ventilation Diagram
TruckFridge Built-in User Manual 8.12 TruckFridge Installation Ventilation Diagram Updated 5 July 2020 Page 47...
