Summary of Contents for mesoskinline MESO POWER DEVICE MS-3

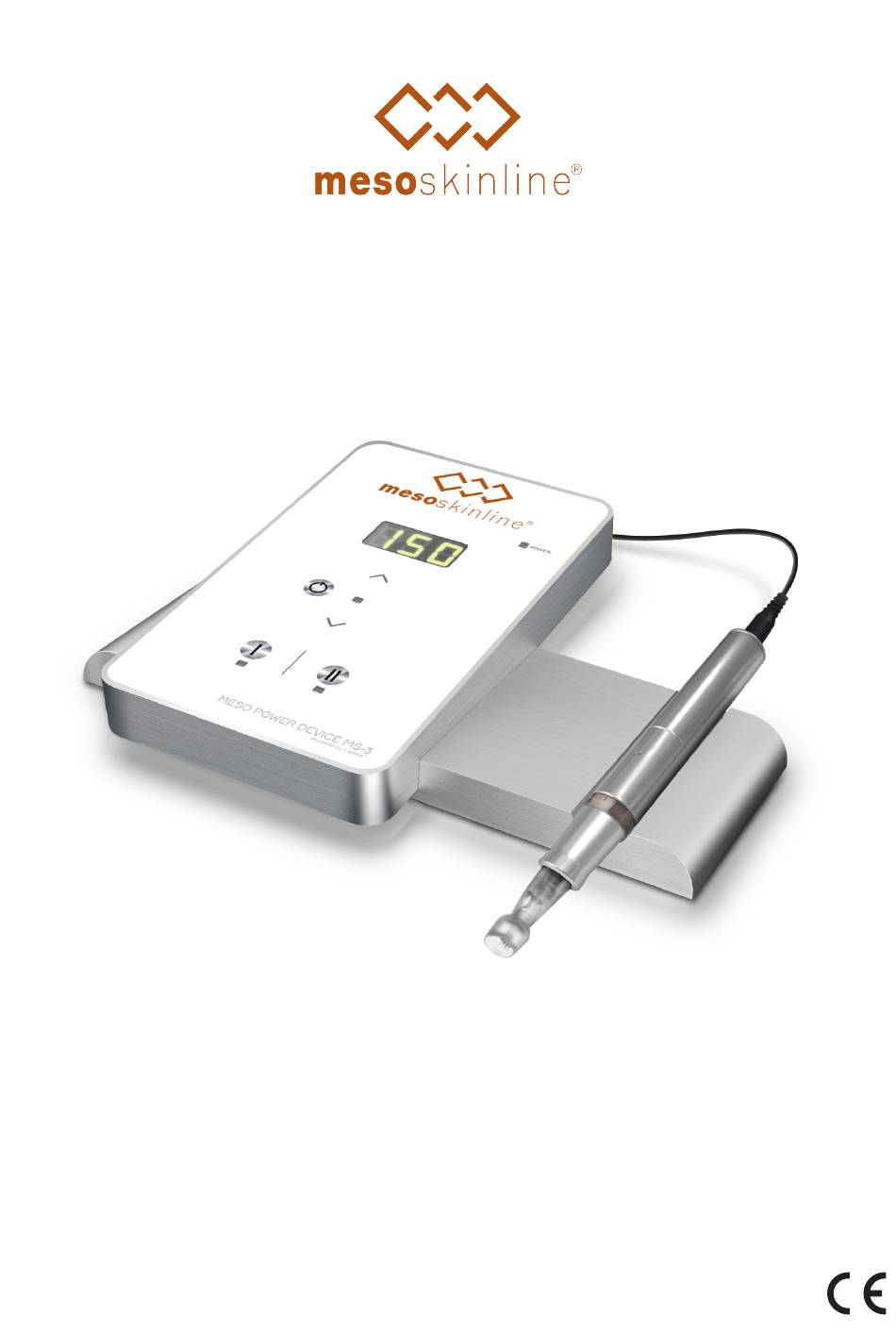

- Page 1 MESO POWER DEVICE MS-3 OPERATING MANUAL...
- Page 2 MAD12901 Needle cartridges "4.3 Accessories and spare parts" on page 16 Handpiece CMN50 Handpiece cable 5E-G765 Handpiece tray FG-AD1.0-1 Handpiece cover E-0610 Foot switch E-1010 Power supply E1165 Country-specific adapter EU: E-1154 * Not included with the delivery MESO POWER DEVICE MS-3...
- Page 3 Select handpiece I/II buttons (white LED) Power LED indicator ( ) (white LED) Increase frequency ( ) button / decrease frequency ( ) button Connection for foot switch Connection for handpiece I and II Connection for power supply Device ON/OFF button MESO POWER DEVICE MS-3...
-
Page 4: Table Of Contents
Setting the needle protrusion depth...................... 25 Setting the penetration frequency...................... 25 Switching the handpiece on and off...................... 26 English Version 1.0 – 01/2019 Translation of the original operating manual. The original operating manual was generated in German. MESO POWER DEVICE MS-3... - Page 5 8 Transport and storage conditions................... 29 Controller, handpiece with handpiece cable, power supply and foot switch ... 29 Needle cartridge ............................... 29 9 Disposal ............................ 30 10 Questions and problems...................... 30 11 Guarantee ............................ 31 12 Declaration of conformity ...................... 32 MESO POWER DEVICE MS-3...
-
Page 6: About This Manual
A B O U T T H I S M A N U A L This operating manual applies to the MESO POWER DEVICE MS-3 (AD12901) and its ac- cessories. It contains important information about setting up, operating and looking after the device safely and as intended for use. -
Page 7: Important Safety Instructions
Follow the safety regulations for the microneedling in your country. Keep your workplace hygienically clean and ensure that you have adequate lighting. Only use the device, its accessories and all handpiece cables when in perfect condition. Use only original needle cartridges, accessories and spare parts from MT.DERM GmbH. MESO POWER DEVICE MS-3... -
Page 8: Product-Specific Safety Instructions
If substances that are not intended for cosmetic microneedle treatment or whose sterility is not guaranteed, are introduced into the skin, this can result in infections or possible side effects. Observe the accompanying information for the substances used. MESO POWER DEVICE MS-3... - Page 9 Avoid risk of injury due to the needles protruding too deeply (see chapter "6.2 Setting the needle protrusion depth" on page 25). Avoid risk of injury due to the penetration frequency being too high (see chapter "6.3 Setting the penetration frequency" on page 25). MESO POWER DEVICE MS-3...
-
Page 10: Contraindications And Side Effects
Up to twelve months after a plastic surgery operation in the area to be treated Up to six months after filler injections in the area to be treated Allergy to topical anaesthetics (local anaesthetic) Under the influence of alcohol and/or drugs Pregnancy and lactation MESO POWER DEVICE MS-3... -
Page 11: Required Qualification (User Requirements)
The device may only be used by persons trained in the following: Qualification for cosmetic microneedling Basic knowledge of microneedling treatment (see chapter "6.3 Setting the penetration frequency" on page 25 and "6.4 Switching the handpiece on and off" on page 26) MESO POWER DEVICE MS-3... -
Page 12: Intended Purpose, Scope Of Application And Proper Use
Improper use is when the device or its accessories are used in a manner other than as de- scribed in this operating manual or if the operating conditions have not been complied with. The treatment of contraindications in particular is forbidden (see chapter "2.4.1 Contraindic- ations" on page 10). MESO POWER DEVICE MS-3... -
Page 13: Symbols On The Product
Housing offers protection from foreign objects thicker than 1 mm Applied part, type B: Applied part provides safety from electrical shock and leakage currents Handpiece Foot switch DC connection, inner pin positive Observe operating manual! Manufacturer Date of manufacture Catalogue number, order number Serial number MESO POWER DEVICE MS-3... - Page 14 Only use indoors Fragile Do not use if packaging damaged Not for re-use Dispose of in compliance with waste electronic appliances guidelines Do not re-sterilise Warning of cutting or penetrating injuries JAPAN TUV R-PSE Energy efficiency level VI MESO POWER DEVICE MS-3...
-
Page 15: Scope Of Delivery
The needle cartridges and handpiece covers (E-0610) required for operation are not in- cluded in the delivery. Suitable accessory parts for the handpiece can be obtained via spe- cialist retailers, see "4.3 Accessories and spare parts" on page 16. MESO POWER DEVICE MS-3... -
Page 16: Product Information
The following accessories and spare parts can be purchased from authorised retailers. SCOPE OF ACCESSORIES ARTICLE DESCRIPTION PIECE/VPE DELIVERY Needle cartridges E-MM0002 (OND P 0.5 C VYTAL) – E-MM0006 (OND M 0.7 C VYTAL) – Handpiece cover E-0610 – MESO POWER DEVICE MS-3... -
Page 17: Getting Started
Unsuitable accessories and spare parts can impair the function and safety of the device The device can be damaged or can fail or malfunction endangering persons. Use only the needle cartridges, accessories and spare parts listed in chapter "4.3 Accessories and spare parts" on page 16. MESO POWER DEVICE MS-3... -
Page 18: Positioning The Device
Safe operation of the device can no longer be assured. Avoid sources of interference by ensuring that portable or mobile radio devices are not operated in the vicinity of the device. Inform your customers about the risk of sources of interference. MESO POWER DEVICE MS-3... -
Page 19: Connecting The Power Supply
Pull back and hold the catch for the adapter and at the same time lift the country-spe- cific adapter out of the recess in the power supply. Fig. 1: Remove country-specific adapter To insert the desired country-specific adapter: Place the country-specific adapter in the recess of the power supply as shown below. MESO POWER DEVICE MS-3... -
Page 20: Connecting The Foot Switch (Optional)
Only the foot switch cited in chapter "4.3 Accessories and spare parts" on page 16 will en- sure safe operation. Insert the RCA plug of the foot switch into the socket for the foot switch ( ) on the rear of the controller. Fig. 4: Socket for the foot switch MESO POWER DEVICE MS-3... -
Page 21: Connecting The Handpiece
Consider material compatibilities when selecting cleaning materials and disinfectants (see chapter "7.2 Material compatibilities" on page 27). Disconnect the controller from the power supply. Wipe the controller, the handpiece cable, the handpiece and the handpiece tray with a soft cloth moistened with cleaning product. MESO POWER DEVICE MS-3... -
Page 22: Inserting Or Replacing The Needle Cartridge
Always place the handpiece back in the handpiece tray so that the needle cartridge does not rest on the surface. In the event of being injured by a contaminated needle, seek medical attention from a physician. Switch the handpiece off. Fig. 6: Holding the needle cartridge MESO POWER DEVICE MS-3... -
Page 23: Pulling The Handpiece Cover On
Slide the handpiece cover fully over the handpiece cable. Connect the handpiece cable, with the handpiece cover fitted on it, to the handpiece connection once more. Draw the end of the handpiece cover fully over the handpiece. MESO POWER DEVICE MS-3... -
Page 24: Checking Equipment
Switch the controller on with the Device ON/OFF button on the rear of the controller. The Device ON/OFF button latches in. A short signal tone can be heard. The corresponding LED on the Select handpiece I/II buttons illuminates white. The preset penetration frequency (100 Hz) appears on the display. MESO POWER DEVICE MS-3... -
Page 25: Setting The Needle Protrusion Depth
Risk of injury due to high puncture frequency If the puncture frequency is too high, the skin can be cut open. Select the penetration frequency on the basis of the skin characteristics and suitable for the working speed. MESO POWER DEVICE MS-3... -
Page 26: Switching The Handpiece On And Off
Press the Treatment ON/OFF button on the controller. If the connected handpiece does not start: Observe the chapter "10 Questions and problems" on page 30. To switch off the handpiece: Press the Treatment ON/OFF button again. MESO POWER DEVICE MS-3... -
Page 27: Cleaning And Maintenance
To clean the device, use a mild soap detergent authorised in your country, or 50% di- luted 1-propanol solution. Use the following disinfectants to disinfect the device: MANUFACTURER PRODUCT WORKING-IN TIME Antiseptica Big Spray “new” 1 to 5 min Bode Chemie Bacillol 30 s to 1 min MESO POWER DEVICE MS-3... -
Page 28: Disinfecting Surfaces
Disinfect the handpiece cable, the handpiece and the handpiece tray as described in chapter "5.5 Cleaning and disinfecting the equipment" on page 21. Cleaning surfaces External soiling: Wipe the device and its accessories with a soft cloth moistened in the cleaning product or disinfectant. MESO POWER DEVICE MS-3... -
Page 29: Transport And Storage Conditions
-10 °C to +40 °C Relative humidity 10% to 90% Air pressure 540 hPa to 1070 hPa Needle cartridge Always store the needle cartridges in the following conditions: Ambient temperature +15 °C to +25 °C Relative humidity 30% to 65% MESO POWER DEVICE MS-3... -
Page 30: Disposal
Firstly, disconnect all components, such as the handpiece and the power supply, from the controller. Check all connections and reconnect the components. Check the function of the device again. If malfunctions persist or if you have any questions or complaints, please contact your specialist retailer. MESO POWER DEVICE MS-3... -
Page 31: Guarantee
Damage and consequential damage caused by improper use or failure to comply with the operating manual. Damage caused by the ingress of fluids or dirt into the inside of the handpiece, the con- troller or the power supply. MESO POWER DEVICE MS-3... - Page 32 The manufacturer MT.DERM GmbH Gustav-Krone-Str. 3 D-14167 Berlin Hereby declares under their own responsibility that the following product: Product: Micro-needling system Product name: MESO POWER DEVICE MS-3 Article description: AD12901 Complies with the following directives: EMC directive: 2014/30/EU Machinery directive: 2006/42/EU...
- Page 36 Manufactured by: MT.DERM GmbH | Gustav-Krone-Str. 3 | 14167 Berlin fon +49 (0)30 845 88 54 | fax +49 (0)30 84 58 85 55 | info@mtderm.de | mtderm.de...
