MODE360 FA40 User Manual

Photo composer
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER GUIDE
Photo Composer FA40
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA40 and is the answer not in the manual?

Questions and answers

Summary of Contents for MODE360 FA40

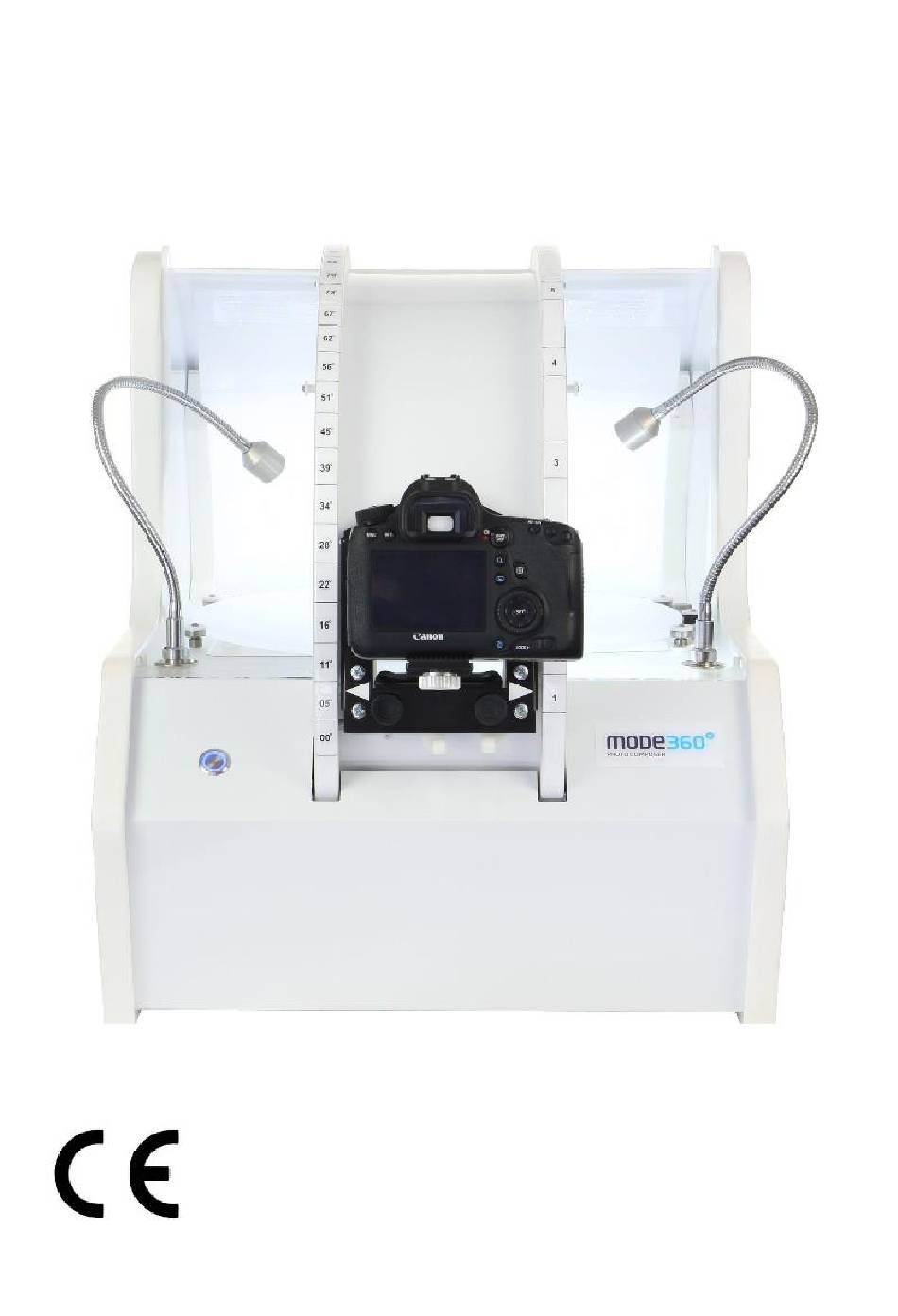

  • Page 1 USER GUIDE Photo Composer FA40...
  • Page 2 Szanowni użytkownicy! Dear Users, Products with logo - MODE360° manufactured by MODE SA have the highest quality, durability of use and meet all EU requirements. We are convinced that our products fully meet your expectations. Yours faithfully MODE Team...

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ................. 4 LIST OF ITEMS ................5 CALIBRATION................8 CENTERING ................11 BACKGROUND ASSEMBLY ............14 PLATE ASSEMBLY..............16 SCALE ON MOVEABLE GUIDE ..........19 REPLACEMENT BACKGROUND ..........21 POINT LIGHTING FOR DETAILS (SPOT LIGHTS) ......21 COLORFUL BACKGROUNDS A4..........

  • Page 4: Introduction

    1. INTRODUCTION This document concerns a device designed to taking photos and their processing. The device is a compact photo studio which works with connected digital camera and PC. You can control the positioning of the object, interior lighting, camera settings, take and edit photos (or video films) by using an application which is attached to the device.

  • Page 5: List Of Items

    2. LIST OF ITEMS Before you start, check that the following items have been supplied with the device. In the absence of any of them, please contact with your dealer. Photo Composer FA40 USB 2.0 1,8M cable Power cable Calibration Magnet MODE...
  • Page 6 Accessories: Chains and earings holder Chain and earings holder Earings holder clear 6x8 cm black 15x12 cm clear 20x20 cm Cotton gloves Polarizer filter Marumi 72 mm Star filter White (3 pairs) (for lens Sigma 17 - 70) Vertical holder for Filter UV Hoya 72 mm Reverse adapter for lens cameras...
  • Page 7 Slipcover for Photo Black, silver side covers Composer Tri head LED spotlight Black background for Photo Colored stripes with colour filters + Composer clamp A4 colored Black matt/gloss Turntable for White matt/gloss Turntable for backgrounds Photo Composer Photo Composer...

  • Page 8: Calibration

    3. CALIBRATION Note: If you notice that the platform does not do a full rotation of 360° or presentations are not smooth, calibrate the product. Step 1. Turn on the Photo Composer and then run the ModeVid/ModePix application. Step 2. In the ModePiX/ModeViD select the calibration mode and follow the instructions "Manual MODEViD section 1.7."...
  • Page 9 Step 3. Place the magnet device in a place where the red LED lights up. Then press the application key "Next" Step 4. Calibration program starts running, the LED glows yellow.
  • Page 10 Step 5. The green LED indicates the end of calibration. After completed calibration, turn off the device with the power and restart the application ModePiX/ModeViD If the device does not stop after one rotation, correct setting of magnet and run the program again.

  • Page 11: Centering

    4. CENTERING Step 1. Set the camera in the 90° position. Step 2. Place the plate for centering (1) in the middle of the device in such a way that it touches guide rollers (2). Remember that the field to centering (3) has to be in the middle of the plate.
  • Page 12 Step 3. Using the knob (1) set the virtual viewfinder of camera. It has to hit in the middle of the plate for centering. Follow the instruction: "Manual MODEViD Chapter 1.5".
  • Page 13 Step 4. Look at the preview LiveView and synchronize viewfinder with the middle of the platform (B). Synchronization – adjust knob of attaching the camera (2) and knob of angle of setting camera (1).

  • Page 14: Background Assembly

    5. BACKGROUND ASSEMBLY Step 1. Roll the background and put into the Photo Composer. Step 2. Place the background in background guides (1).
  • Page 15 Step 3. Place background holes (1) in ball rollers (2).

  • Page 16: Plate Assembly

    6. PLATE ASSEMBLY Step 1. Set the plate at an angle and insert into the Photo Composer. Step 2. First, place the plate near the pressure roller (1) (press lightly) and next between guide rollers (2).
  • Page 17 Step 3. After placing the plate at the drive roller (1), press using an arm of the guide roller (2) and screw – the plate must be stable.
  • Page 18 7. COMPONENTS EQUIPMENT MODE360 ° PHOTO COMPOSER Adjustable holders aim on the digital camera (front-back adjust) The movable guide (change of photography angle in the range of 0-90°) Shadowless chamber with diffused LED lighting (6500 K) Rotating platform for 360° photos with a diameter of 40 cm...

  • Page 19: Scale On Moveable Guide

    8. SCALE ON MOVEABLE GUIDE 1. On the moveable guide of camera are two arrows. Left indicates at what angle the camera is set on the arc, the right indicates the approximate steps of spherical presentation. To move the camera should release the lock arc (A).
  • Page 20 3. The right scale on the arc with the scale 1-6 (steps spherical) is the overall assistance to the spherical presentation. The presentation does not have to start from level 1, you can choose the steps or use the left scale.

  • Page 21: Replacement Background

    9. REPLACEMENT BACKGROUND Standard background of Photo Composer device on the one side is mat, on the second side with a slight shiny mirror image. 2D photos – we can remove the platform (the plate) from the device and photograph second surface.

  • Page 22: Colorful Backgrounds A4

    Gold, Nickel. To control the reflection on the product you can eject color A4 between the closed cover and a 3D arc. The technique using colored sheets (B) and strips (A) is shown in instructional films MODE360 Photo Composer YouTube YouTube: https://www.youtube.com/user/Mode360degrees https://www.youtube.com/watch?v=FL3E4jUoXV8...

  • Page 23: Disassembly Of Camera Holder

    12. DISASSEMBLY OF CAMERA HOLDER To montage the camera holder, insert the handle between the frame (A) of the arc (B). To remove the camera holder, unscrew the two screws securing the holder with a frame to the camera (A) and (B).

  • Page 24: Technical Description And Specifications

    13. TECHNICAL DESCRIPTION AND SPECIFICATIONS: Photo Composer: Technical parameters: Model: FA40 Type: v3 Serial number: ..... Technical specifications: Dimensions: 60x60x60 cm* Weight: 18 kg* Power: 110-220 V The diameter of the rotating platform: 40 cm* Light type: Power LED 6500 K (daylight)* Hardware requirements: System: Windows 7/8;...

  • Page 25: Noise

    14. NOISE The noise which is emitted during machine operation is comparable to computer operation. Another source of noise is the sound of the snapshot of connected camera. The noise level is not a threat and is not burdensome for the machine operator and other people who work in the same room.

  • Page 26: Exploitation And Conservation

    16. EXPLOITATION AND CONSERVATION Operator’s workplace The device should be operated in a typical office workstation (desk, chair). It provides the proper position during operation. The device is operated in a room with lighting which is normal for office work. Furthermore, the device has its own lighting of the place of object exposure.

  • Page 27: Declaration Of Conformity We

    17. DECLARATION OF CONFORMITY WE The device has been designed and manufactured in accordance with the requirements of the relevant directive that the manufacturer certifies CE and this declaration. Compatibility with directive: LVD - 2006/95/WE The device is powered by alternating-current 230V within the scope of the Low Voltage Directive 2006/95/WE (LVD) therefore subject to the requirements of the Directive.

  • Page 28: Warranty

    18. WARRANTY For this product manufacturer provides a 36 month warranty. Keep the original and complete packaging. If the device to repair has the non-original or incomplete packaging, the risk of damage in transport is on the purchaser side. Repackaging should be as adjusted for volume goods (device).

  • Page 29: Machine Marking

    19. MACHINE MARKING In accordance with the requirements of the Machinery Directive, the nameplate and described signs were placed on the device.
  • Page 30 NOTES ............................................................................................................................................................................................................................
  • Page 31 The device was manufactured by: MODE S.A. ul. Starowiejska 67 80-534 Gdańsk POLAND...
